Rapid Ref : 1012025013

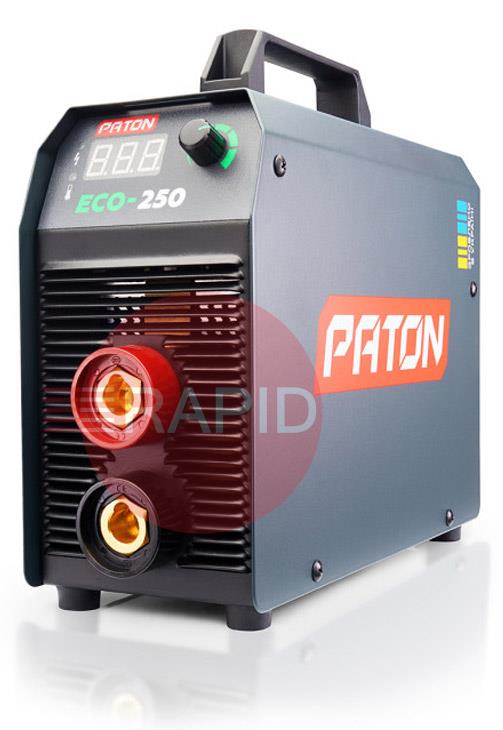

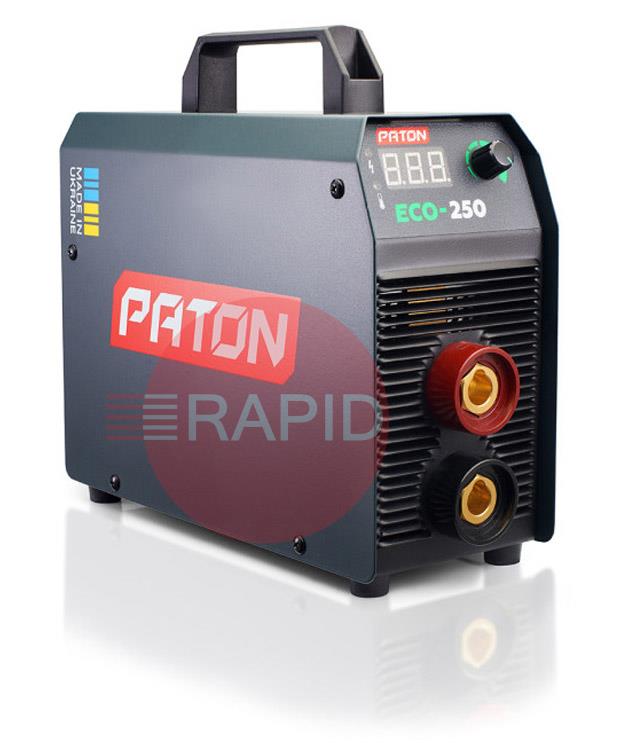

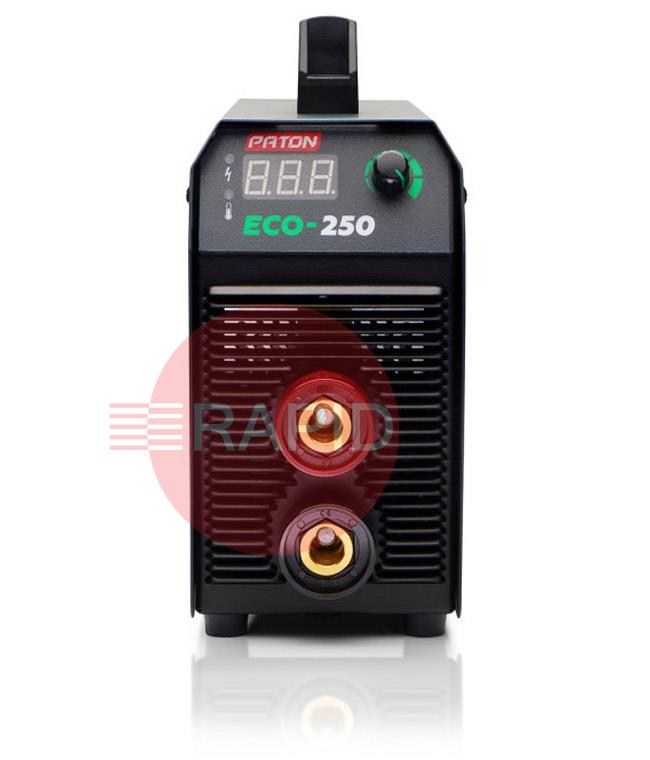

PATON ECO-250-C Inverter 250A Arc Welder Suitcase Package - 230v, 1ph
1012025013

Click here to see what's included
£226.67  EX VAT
SSP Suggested Selling Price = £370.00  YOU SAVE £143.33
 Buy in 3 easy interest free payments of £75.56† with
Additional items to consider
Select Model Required
ESAB Swarm A20 Helmet 9 - 13 x1 £55.02
Kemppi S1030 Welding Helmet 9-13 x1 £40.04
ESAB Savage A41 Welding Helmet 8-13 x1 £89.00
Select Style Required
Ultima S6 Red/Gold Premium Gauntlet x1 £5.76
Panther Pro Welding Gauntlet x1 £9.75
Spiderhand MIG Supreme MIG Welding Gloves x1 £18.75
Kemppi Craft MIG Model 6 Welding Gloves x1 £21.12
Select Welding Rods
ESAB GoldRox E6013 Electrodes 2.5mm 2.5kg x1 £19.12
ESAB GoldRox E6013 Electrodes 3.2mm 2.3kg x1 £15.72
ESAB GoldRox E6013 Electrodes 4.0mm 2.4kg x1 £16.24

The PATON ECO-250-C is a compact 250A arc welder, perfect for field work and household conditions. The device's small size makes it very mobile. The PATON ECO-250-C welder has a work stabilisation system installed, allowing it to be powered by a generator. The 250A output allows the use of electrodes from 1.6mm to 5.0mm in diameter. The ECO-250-C features a 40% duty cycle and a 5-year warranty.

All machines supplied by Rapid Welding are load tested, have a gas hose with 3.8" fittings supplied and a UK plug adaptor included.

  • Powerful Output in a Compact Package: Weld with confidence — the ECO 250-C delivers up to 250A of steady, reliable power for MMA (Stick) welding. For electrode diameters 1.6mm up to 5.0mm
  • Lightweight & Portable: Weighs just 4.3 kg – ideal for site work, garages, and hard-to-reach spots
  • Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
  • Generator Ready: Possibility to work on long extension cables as well as with a generator
  • Hot-Start, Arc-Force and Anti-Force functions
  • 5 Year Warranty

Product Details

The Paton ECO 250-C is a compact 150A inverter arc welder, perfect for field work and household conditions. Due to their compactness, ease of use, and high productivity, these devices meet the most common requirements of a wide range of welders — from beginners to professionals. The PATON™ ECO-250-C welder has a work stabilisation system installed, allowing it to be powered by a generator. The 250A output allows the use of electrodes from 1.6mm to 5.0mm in diameter. The ECO 250-C benefits from a 40% duty cycle and a 5-year warranty.

Specification

Mains Voltage: 230V
Welding Current Range: 32 - 250A
Duty Cycle: 250A at 40%, 158A at 100%
Maximum Power Consumption: 8.8kVA
Open Circuit Voltage: 80V
Dimensions (L x W x H): 270mm x 110mm x 270mm
Weight: 4.3kg
Protection Class: IP33

Perfect For

  • Household & DIY Use
  • Field Work
  • Small Workshops

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   PATON MINI-C ECO MMA User Manual

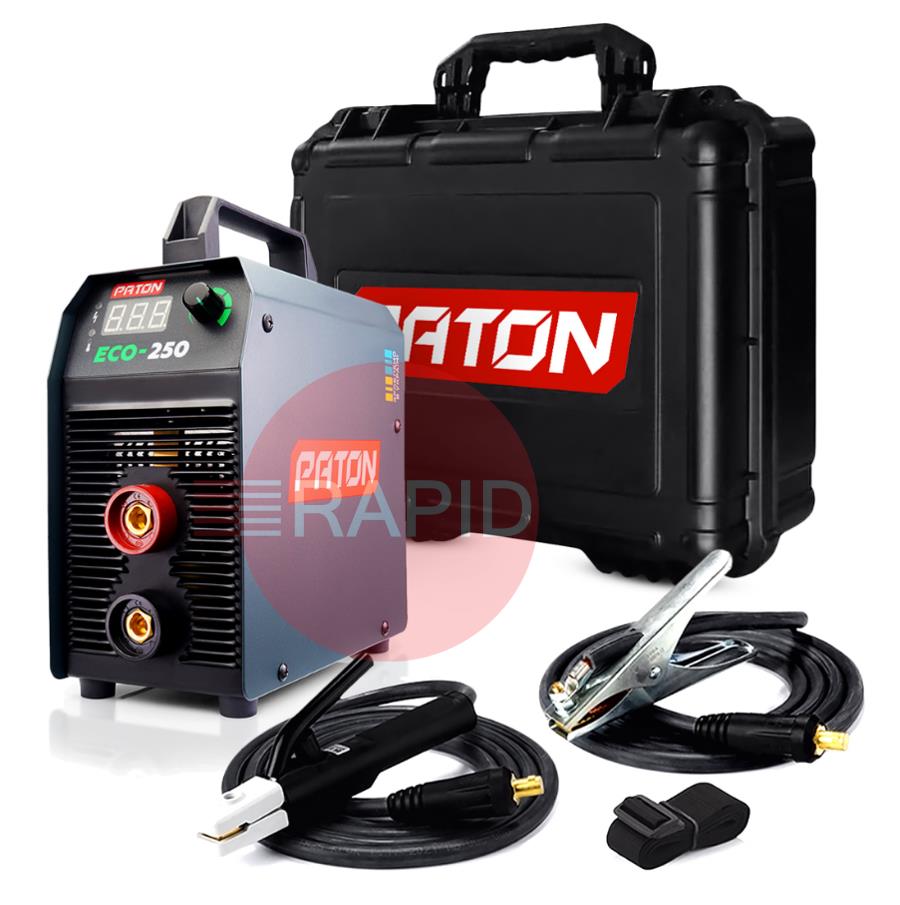

What's Included

PATON-CASE PATON Carry Case

PATON Carry Case

PATON-SSTRAP PATON Shoulder Strap

PATON Shoulder Strap
PTN-MMA16CBL PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

WARRANTYP5 PATON 5 Year Warranty

PATON 5 Year Warranty

Warranty and Support

  • 5 Year Warranty
  • UK based service centre and support hotline
  • Access to spare parts and calibration service

Whether you're welding at home, in the field, or on the job site, the Paton ECO-250-C Arc Welder gives you the power, precision, and portability you need, without the bulk

230v Arc Welders FAQs

Straight answers to the questions people ask most when choosing and using a 230 volt single phase arc welder.

How much welding current can a 230 volt supply provide?icon-minus-redicon-plus-red

Single phase supplies limit how much current a welder can draw, so the top-end output of 230 volt machines is lower than three phase equipment. Within that limit, a good inverter can handle a wide range of electrode sizes, from fine work to fairly heavy repair welding.

For heavy plate, long continuous welding or large diameter electrodes, a three phase machine is the better fit. Check the maker's output and duty cycle figures at the current you actually plan to use.

Does the plug and fuse on my supply matter?icon-minus-redicon-plus-red

Yes. The welder draws more current at its maximum setting than a typical household appliance. Check its input current on the data plate and make sure the plug, socket, cable and circuit protection are rated for it.

A socket circuit that is too small will trip, overheat or give a weak arc. Some machines are supplied with a particular plug rating. Have a qualified electrician check or upgrade the supply if you are unsure.

How do I choose the right output current?icon-minus-redicon-plus-red

Think about the thickest metal and the largest electrode you expect to use regularly, then choose a machine that provides that current comfortably within its duty cycle, not at its limit.

A machine with some spare capacity runs cooler and lasts longer. As a rough guide, small portable units handle light fabrication and repairs, and larger single phase machines cope with thicker steel and bigger electrodes, but exact limits vary between models.

What is the difference between a transformer and an inverter welder?icon-minus-redicon-plus-red

Transformer welders use a heavy iron and copper transformer to reduce the voltage. They are robust and simple, but they are heavy and usually draw more current from the supply for the same output.

Inverter welders convert the supply electronically before reducing it, which makes them noticeably lighter and smaller, and usually gives a smoother, more controllable arc. Most current 230 volt welders are inverters. The exact weight and energy saving vary from machine to machine, so compare the weight and input current on the data plate and in the manual for the machines you are considering.
