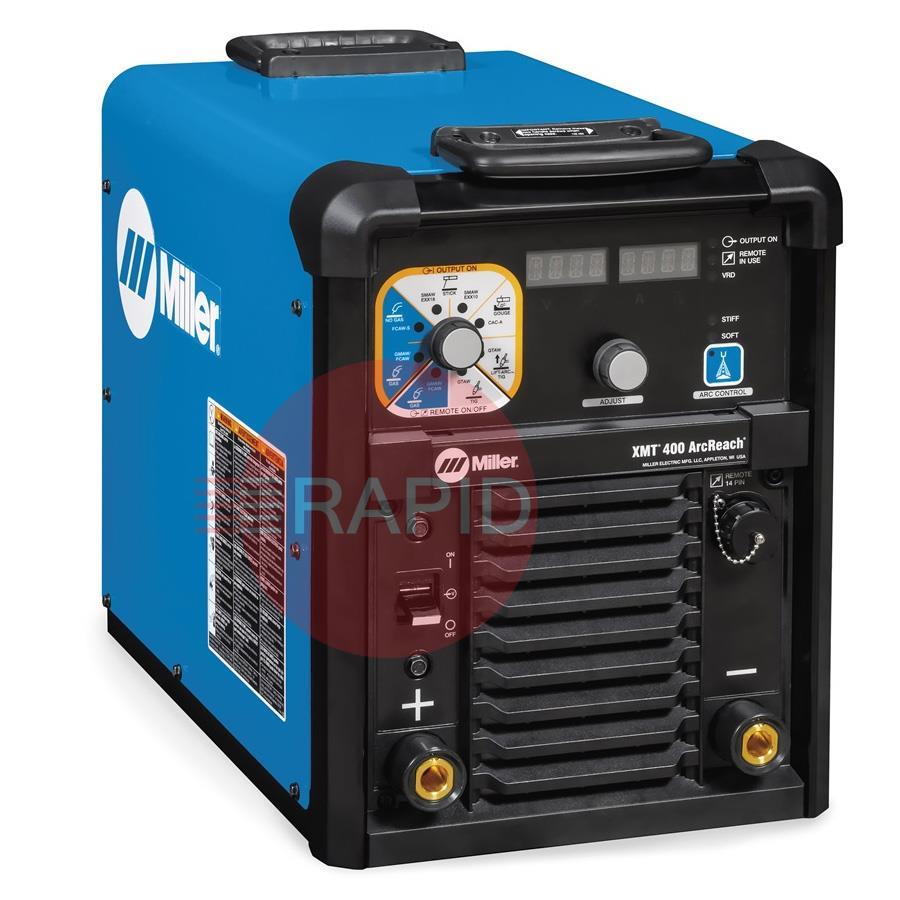

907865003AP Miller XMT 400 ArchReach CE Multiprocess Air Cooled Package - 380-575v, 3ph
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : 907865003AP  Mfr Ref : 907865003

    Miller XMT 400 ArchReach CE Multiprocess Air Cooled Package - 380-575v, 3ph
    907865003 907865003AP

    Click here to see what's included
    £8211.00  EX VAT
    SSP Suggested Selling Price = £10262.78  YOU SAVE £2051.78
     Buy in 3 easy interest free payments of £2737.00† with
    The next step in a legacy so reliable, you can stake your reputation on it.

    Simplify your fleet with the new XMT 400 ArcReach — tackle more jobs with one machine.

    The streamlined user interface allows your crew to dial in exactly what they need with several specialized features and settings, including ArcReach, Auto-Line and dedicated weld processes.

    ArcReach technology allows you to take full control where it matters — process and parameter changes all happen at the point of use — improving jobsite efficiency, weld quality, and safety

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure

    What's Included

    057014340 Miller Return cable kit 400A 70mm² 5m

    Miller Return cable kit 400A 70mm² 5m

    058019295 Miller Air Cooled Interconnection Cable for ArcReach Suitcase Feeder - 10m

    Miller Air Cooled Interconnection Cable for ArcReach Suitcase Feeder - 10m

    301456 Miller Suitcase ArcReach 12 CE 2-Roll Wire Feeder

    Miller Suitcase ArcReach 12 CE 2-Roll Wire Feeder

    907865003 Miller XMT 400 ArcReach Multi Process CE Power Source, 380 - 575 VAC 3 Phase

    Miller XMT 400 ArcReach Multi Process CE Power Source, 380 - 575 VAC 3 Phase
    MILMANUAL Miller User Manual

    Miller User Manual

    Q3015TE3EEQ Bernard Q300 4.5m Air cooled Mig Gun

    Bernard Q300 4.5m Air cooled Mig Gun

    WARRANTYMTB3 Miller True Blue 3 Year Parts and Labour Warranty

    Miller True Blue 3 Year Parts and Labour Warranty

    Related Items

    415v MIG Welders FAQs

    Straight answers to the questions people ask most when choosing a three-phase MIG welder for workshop and production use.

    Who needs a three-phase MIG welder?icon-minus-redicon-plus-red

    Three-phase machines suit fabrication shops, production lines, engineering workshops and anyone welding thicker material or for long periods. A three-phase supply carries more power for a given current per phase, so these machines can give higher output with a steadier load on the supply.

    If you only have a single-phase supply, you are limited to single-phase machines.

    What is the difference between 400v and 415v on these machines?icon-minus-redicon-plus-red

    In practice, very little. Older documents and some machine labels refer to 415v, while the current nominal figure for a UK three-phase supply is usually given as 400v. Machines are normally designed to work within a tolerance either side of their rated input, but the allowed range depends on the maker and the model.

    Check the data plate and the manual for the supply the machine accepts, compare that with the measured supply at your site, and ask a qualified electrician if you are unsure.

    What does a high duty cycle give me?icon-minus-redicon-plus-red

    Duty cycle is the proportion of a ten-minute period the machine can weld at a given current before it must cool. A higher duty cycle at your working current means fewer interruptions on long welds.

    If you weld continuously at high current, look at the rating at that current rather than the headline maximum.

    What is the difference between a compact and a separate wire-feeder system?icon-minus-redicon-plus-red

    A compact machine has the wire feeder built into the power source and is simpler and easier to move. A separate (split) system has an independent wire feeder connected by an interconnecting cable, which you can carry to the work, away from the power source.

    Separate feeders suit large fabrications and reaching big workpieces, and compact units suit general workshop use.

    See all 6 questions for this category
