4,075,155P Fronius - MagicWave 2500 Water-Cooled TIG Welder Package, 400V 3 Phase, TTW2500A TIG Welding Torch
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : 4,075,155P

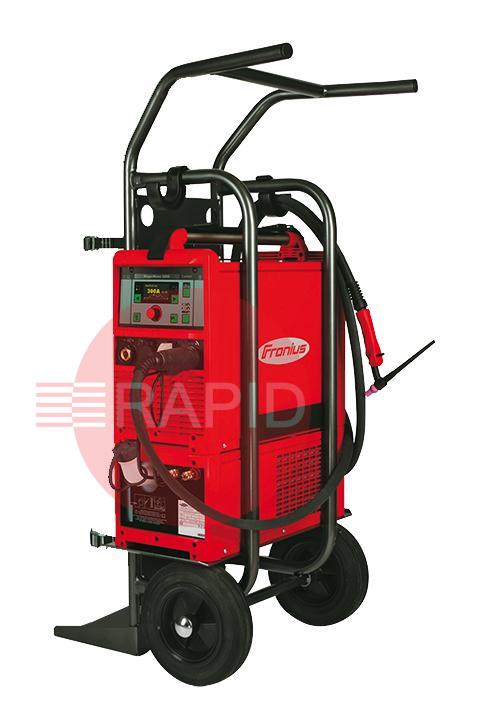

    Fronius - MagicWave 2500 Water-Cooled TIG Welder Package, 400V 3 Phase, TTW2500A TIG Welding Torch
    4,075,155P

    Click here to see what's included
    £7991.50  EX VAT
     Buy in 3 easy interest free payments of £2663.83† with
    Additional items to consider
    Choose your Option
    GasiQ Maxex Bottom Entry Regulator x1 £63.73
    GasiQ TIGEX I Argon/Mix Side Entry Regulator x1 £136.06
    GasiQ TIGEX II Argon/Mix Side Entry Regulator x1 £138.97
    Add a Flowmeter
    Argon Flowmeter 0 to 14 LPM x1 £11.57
    GasiQ TIGEX I Flowmeter. 20L x1 £58.10
    Choose a Tungsten Electrode
    CK 2% Thoriated Tungsten Electrode 1.6mm x 175mm x1 £3.78
    CK 2% Thoriated Tungsten Electrode 2.4mm x 175mm x1 £5.13
    CK 1.5% La Gold Tungsten Electrode 1.6mm x 175mm x1 £3.78
    CK 1.5% LaGold Tungsten Electrode 2.4mm x 175mm x1 £5.13
    CK 0.8% Zirconiated Tungsten Electrode 2.4mm x 175mm x1 £8.60
    CK 0.8% Zirconiated Tungsten Electrode 3.2mm x 175mm x1 £15.33
    Choose TIG Gauntlets
    Kemppi Craft Model 7 Welding TIG Gloves - Size 7 x1 £19.36
    Kemppi Craft Model 7 Welding TIG Gloves - Size 8 x1 £19.36
    Kemppi Craft Model 7 Welding TIG Gloves - Size 9 x1 £19.36
    Kemppi Craft Model 7 Welding TIG Gloves - Size 10 x1 £19.36
    Kemppi Craft Model 7 Welding TIG Gloves - Size 11 x1 £19.36
    Kemppi Craft Model 7 Welding TIG Gloves - Size 12 x1 £19.36

    ActiveWave technology boosts cost efficiency.

    The 2500 model of the Fronius MagicWave series is one of the many digitised TIG AC/DC power sources in their line and is commonly used for aluminium purposes. Weighing at approximately 26.6Kg, the 2500 power source possesses a tremendously robust design and a remarkable state-of-the-art operating system.

    Features

    • Active Wave Technology – this feature was put in place to make the process of TIG AC welding a much quieter task in the workshop environment. A digital signal from within the power sources computes its waveform to permit the highest possible amount of arc stability with the lowest possible noise-emission levels in real-time. Even when delivering mass power of 300A which is no match for MagicWave’s ActiveWave feature
    • TAC – with the TAC application, one spot is all that’s needed when two weld pools are in motion. This feature was created to make the weld pools jump together in absolutely no time to generate a single weld pool. This function is also very beneficial for welding light-gauge sheets without the need for filler metal
    • HF Ignition – this power source was designed to make the welding process a fundamentally easier task. This is proved evident with the HF Ignition tool, the most effortless and safest way to ignite the most dangerous of arcs
    • Touchdown Ignition - like the above, the Touchdown Ignition was made for use in principally sensitive application areas. With this feature in play, any chance of electromagnetic interference will and can be avoided which can often occur during processes like HF Ignition
    • Automatic Cap-shaping – this purpose permits automatic cap-shaping when in the process of welding the likes of aluminium and other such materials, this is done to save significant amounts of time. The adjustment of sizes can also be set by the user

    Package includes

    • 4,075,155 – Fronius MagicWave 2500 Water-cooled TIG Welder Power Source
    • 4,045,985,632 – Fronius FK 2500 FC Cooling Unit
    • 4,045,989 – Fronius Easy 2500 Easy Carriage
    • 43,0004,0160 – Fronius Ground Cable 35mm² with earth clamp
    • 4,035,850 – Fronius TTW2500A TIG Welding Torch
    • 44,0350,0872 – Fronius TTG1600A/TTW2500A/TTW3000A Wear Part Kit

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure
       Fronius TransTig & Magic Wave Operating Instructions

    Related Items

    415v TIG Welders FAQs

    Straight answers to the questions people ask most when choosing and using three phase TIG welders.

    Why choose a three phase TIG welder?icon-minus-redicon-plus-red

    Three phase machines are designed for industrial use, where a three phase supply is installed. The supply can provide far more power than a single phase socket, so these machines provide higher welding currents, heavier duty cycles and the ability to weld thick sections, especially aluminium, all day.

    They are the usual choice for fabrication shops, pipe welding, heavy repair and production work, where reliability and capacity matter more than portability.

    Can I run a three phase TIG welder from a generator?icon-minus-redicon-plus-red

    Sometimes, but only if the generator is a three phase unit suited to the welder. Check the data plate and manual for your machine for its input current and any minimum generator size or type the maker states.

    Generators are rated for balanced three phase loads, and power factor affects the size you need, so allow a generous margin above the welder's input requirement. The output must be stable and well regulated. An undersized or poor quality generator can cause cutting out, an unstable arc or damage to the electronics. If in doubt, ask the maker or a competent electrician before connecting.

    How do I choose the output rating?icon-minus-redicon-plus-red

    Consider the thickest material and the metal. Aluminium needs more current than steel for the same thickness. Choose a machine with a maximum current comfortably above what you will need regularly, since this gives a better duty cycle, a cooler running machine and headroom for heavier jobs.

    Also consider the lowest current. A machine with a low, stable minimum current suits thin material and precise work. A wide range between minimum and maximum makes the machine more versatile.

    AC/DC or DC only: which do I need?icon-minus-redicon-plus-red

    A DC machine welds steel, stainless steel, copper and many other metals, but not aluminium or magnesium. An AC/DC machine adds AC output, which cleans the oxide layer on aluminium and magnesium so they can be welded properly.

    If you will ever weld aluminium, choose AC/DC. Look for adjustable AC balance and frequency, which let you tune the cleaning action and the arc focus.
