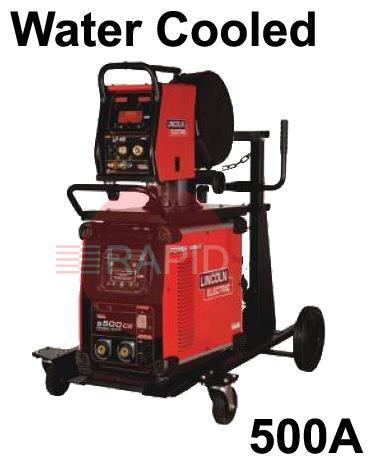

Outstanding Operation, Modular Configuration!
The Power Wave S500 are part of a new modular concept from Lincoln Electric that is designed to provide a multitude of different set-up configurations for the operator to choose from. These MIG welder machines can be tailored easily yet precisely to fit the specified welding application. All Power Waves come complete with an Ethernet connection.
Features
Technical Specification
Lincoln Ground Cable with Clamp, 600A - 5m
Harris 901 Argon Single Stage Regulator. 30lpm, 5/8" RH BSP Cylinder Connection, 3/8" BSP Outlet, UK Fitting Only
Lincoln Hose Tail & Nut Set
Lincoln Water-cooled Power Source to wire feeder cable 5m (LF45)
Lincoln CoolArc 50 Water Cooler
Lincoln Power Wave Four-Wheel Undercarriage
Lincoln PF-46 Four Roll Wire Feeder
Lincoln Power Wave S500 CE MIG Welder Power Source - 400v, 3ph
Lincoln Electric Operating Manual. (User Instructions)
Lincoln Freezecool Coolant, 9.6 Litre (Replaces Lincoln Acorox)
Lincoln LGS3-505W Water Cooled 500A MIG Torch - 4m
Lincoln Electric 3 Year Parts & Labour Manufacturers Warranty.
Straight answers to the questions people ask most when choosing a three-phase MIG welder for workshop and production use.
In practice, very little. Older documents and some machine labels refer to 415v, while the current nominal figure for a UK three-phase supply is usually given as 400v. Machines are normally designed to work within a tolerance either side of their rated input, but the allowed range depends on the maker and the model.Check the data plate and the manual for the supply the machine accepts, compare that with the measured supply at your site, and ask a qualified electrician if you are unsure.
Yes, it needs a three-phase connection with the correct cable size and protection for the machine's input current, installed by a competent electrician. The manual states the recommended supply cable and fuse or breaker rating.Do not connect a machine to a circuit that has not been checked for the load. Poor supply causes tripping, overheating and unreliable welding.
Air-cooled torches are simpler and need no extra equipment, and suit many general jobs. Water-cooled torches carry higher current for longer without overheating, so they suit heavy, continuous or production welding, but they need a cooler and a little more upkeep.Choose according to the current and the duty cycle you will use.
A compact machine has the wire feeder built into the power source and is simpler and easier to move. A separate (split) system has an independent wire feeder connected by an interconnecting cable, which you can carry to the work, away from the power source.Separate feeders suit large fabrications and reaching big workpieces, and compact units suit general workshop use.
