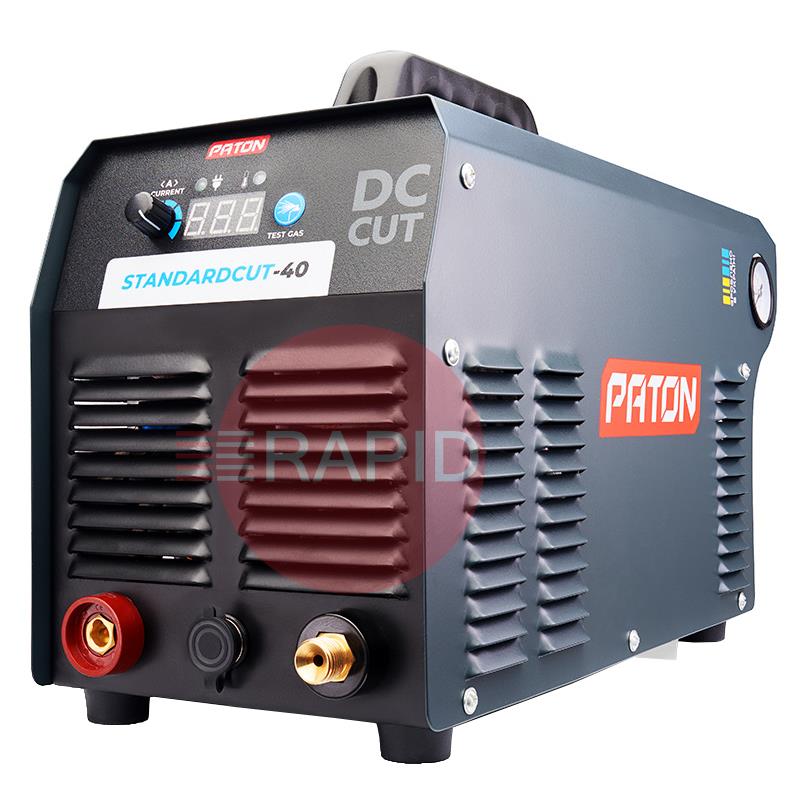

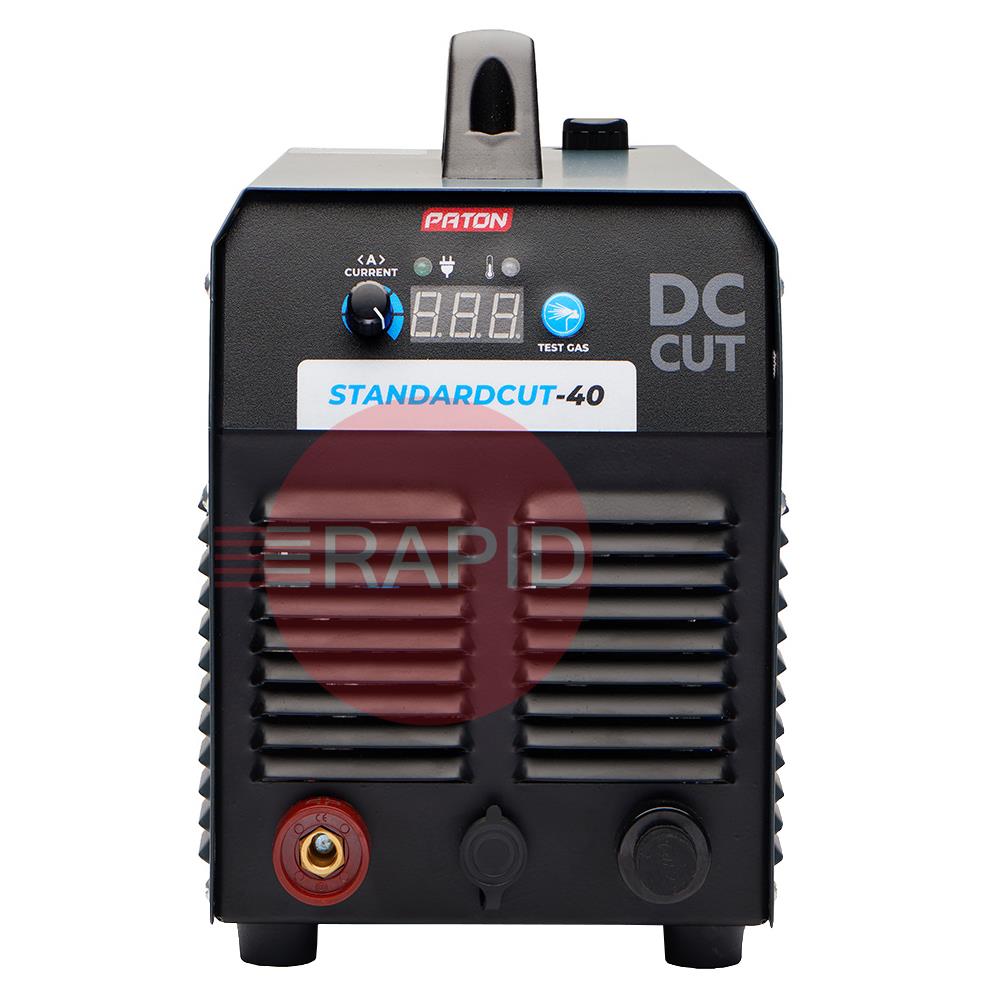

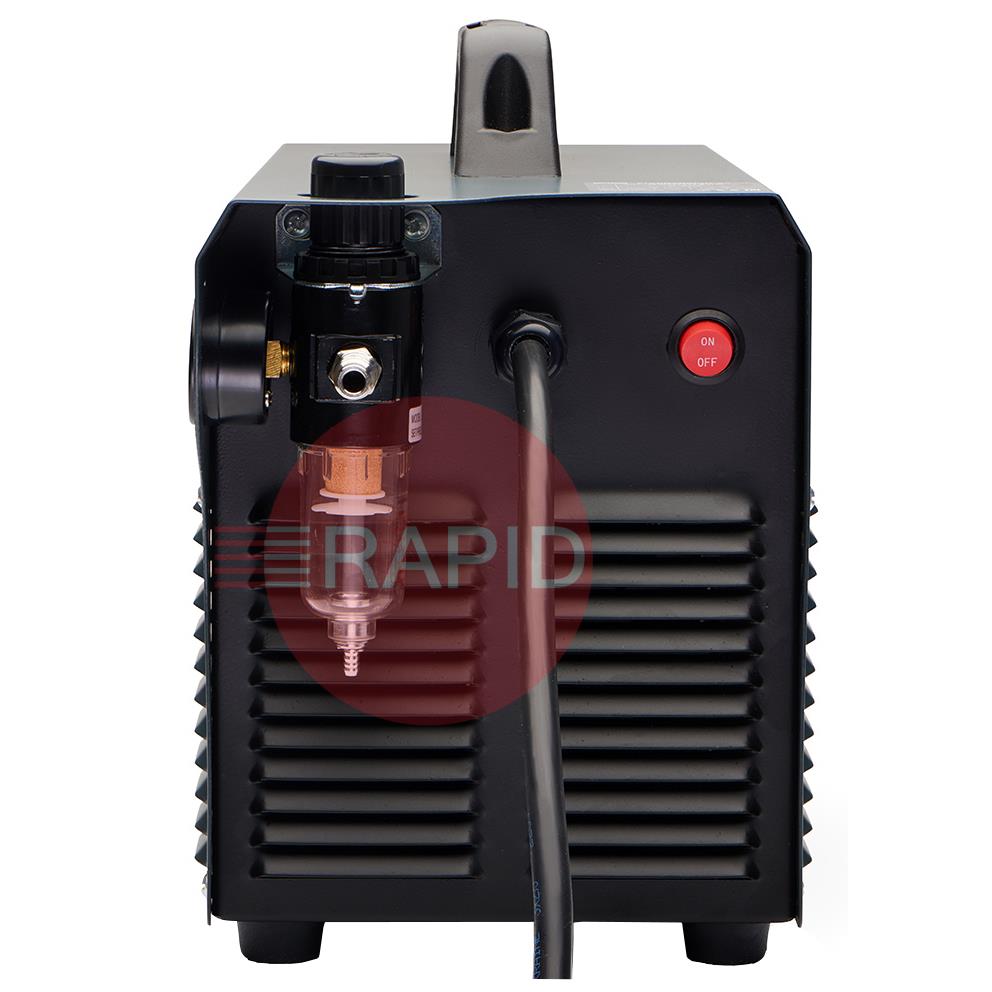

PATON StandardCUT-40 inverter plasma cutter is designed for cutting metals and alloys up to 12 mm thick with a plasma arc in a stream of compressed air. PATON StandardCUT-40 is suitable for use in private and professional workshops. It is powered by a standard 220V single-phase network. This machine is characterised by affordability, ease of setup and use, reliability and small overall dimensions.
The cutter is powered by a single-phase 220V mains supply, which means it can be used almost anywhere – in a workshop, garage or construction site, without the need for specialist electrical infrastructure. Despite its compact dimensions and light weight, it delivers excellent performance, making it a strong choice in its class.
PATON 3m Earth Return, 10mm²
PATON Quick Gas Connector
PATON 4m PT-31 Plasma Torch
PATON 1 Year Warranty
Straight answers to the questions people ask most when choosing and using single-phase 230 volt plasma cutters.
Check the machine's data plate for its input current, then make sure the circuit, socket, plug and fuse or breaker are rated to match. A standard 13 amp domestic socket is not suitable for every machine, and some need a dedicated higher-rated outlet.If your machine needs more than a normal socket can give, have a qualified electrician install a suitable supply rather than modifying the plug or fuse. The manual states the recommended protection.
Plasma cutters draw a large current, especially at start-up and when cutting at full output. A circuit that is too small, shared with other equipment, or fed through a long thin lead will trip.Try the machine on a dedicated circuit with a short, appropriately rated lead, and avoid running other heavy loads at the same time. If it still trips, have the circuit and the machine checked rather than fitting a larger breaker than the wiring allows.
Often, yes, but the generator must be large enough for the machine's input rating and give a stable voltage. An undersized or poor-quality generator can cause the arc to cut out and may damage electronics.Compare the machine's input power on its data plate with the generator's continuous rating, leave a margin, and check the generator maker confirms it is suitable for welding or cutting equipment.
A built-in compressor makes the machine self-contained, which is handy for mobile work or where no air line exists. It is usually sized for light to medium cutting and may limit how continuously you can work.A machine that uses external air relies on your workshop compressor, which can provide more air for longer, but you must make sure the pressure, flow and air quality meet the manufacturer's requirements.
