The FlushCut™ process for Powermax 45XP systems allows users to cut closer to base materials than ever before.
Reduce time-consuming and costly grinding!
Close cutting for removing lugs and other attachments has typically been performed via oxyfuel cutting or carbon arc gouging, followed by labour-intensive grinding. FlushCut for Powermax plasma systems provides a new, more efficient process for challenging removal applications.

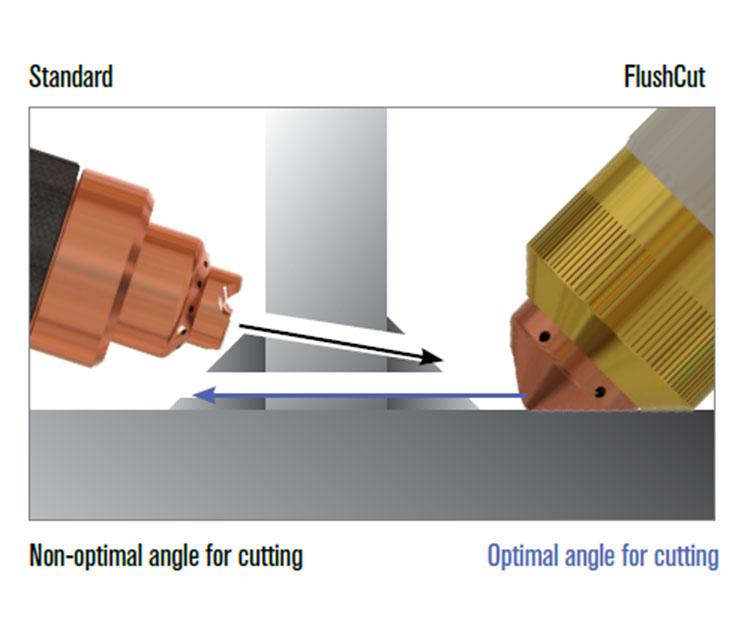

The patented consumable design for FlushCut features an angled nozzle bore design which delivers the plasma arc at a 45° angle – essentially bending the plasma arc. This unique design allows Powermax users to cut closer or flusher to the base than ever before, significantly reducing grinding and increasing the opportunity to reuse pad eyes, attachments and other temporary weld supports.

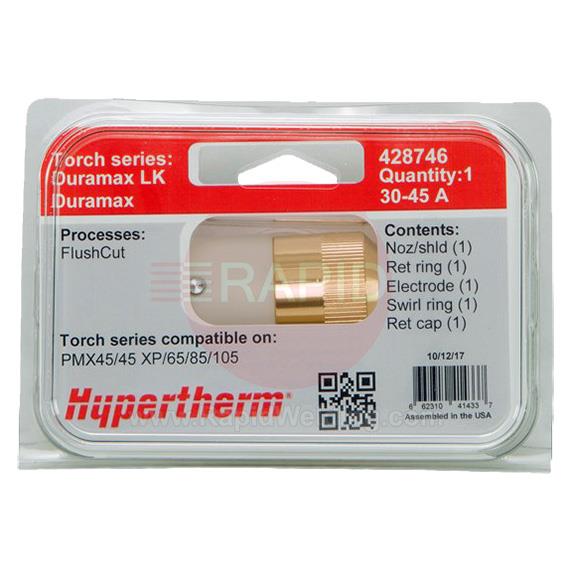

Kit Contents
| Part # |
Description |
Qty |
| 420540 |
Retaining Ring |
1 |
| 420633 |
Shield |
1 |
| 420536 |
Retaining Cap |
1 |
| 420635 |
Electrode |
1 |
| 420634 |
Swirl Ring |
1 |
| |
Total |
5 parts |
