AFD-TPSI270PPW Fronius - TPS 270i C Pulse Push Pull Water-Cooled MIG Package with 400v 3ph
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : AFD-TPSI270PPW

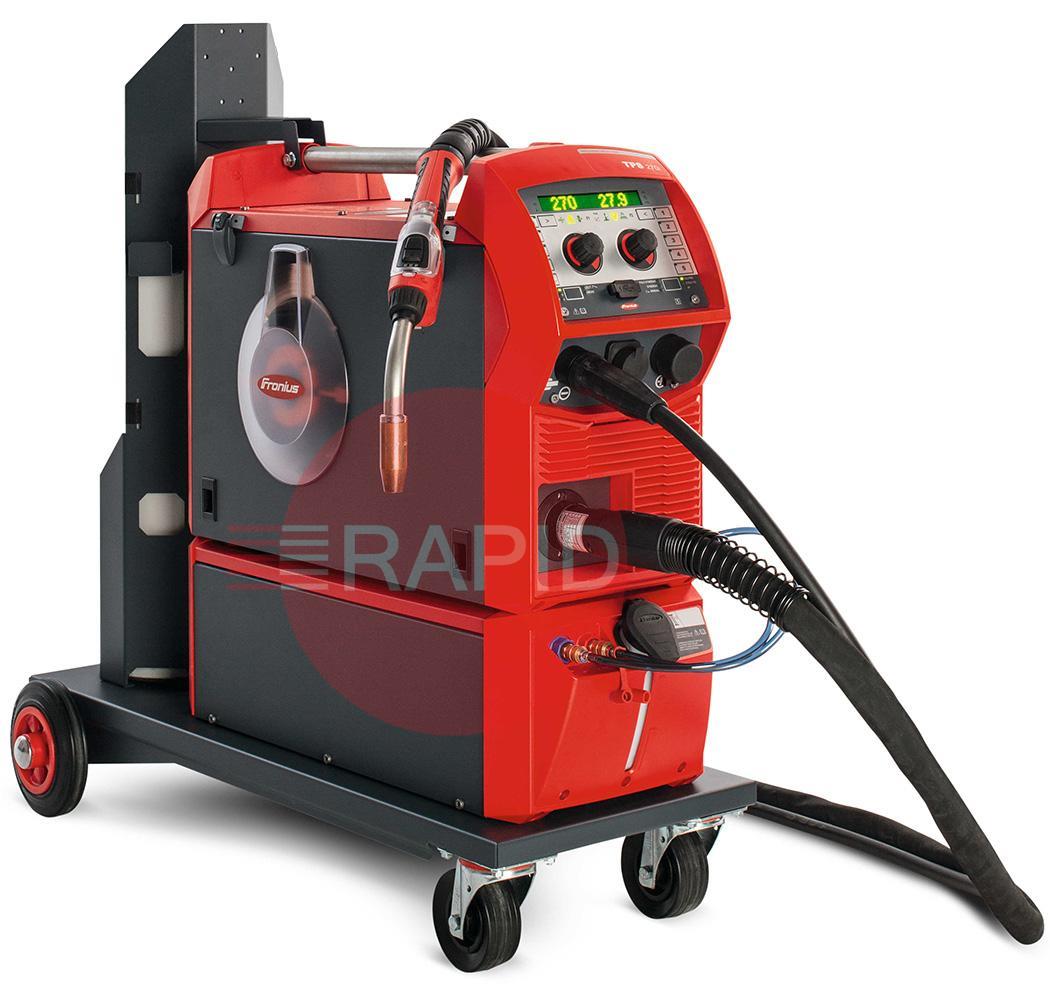

    Fronius - TPS 270i C Pulse Push Pull Water-Cooled MIG Package with 400v 3ph
    AFD-TPSI270PPW

    Click here to see what's included
    £15699.34  EX VAT
     Buy in 3 easy interest free payments of £5233.11† with
    Additional items to consider
    Add a Regulator
    2 gauge bottom Entry MIG Welding Regulator x1 £30.61
    2 gauge Side Entry MIG Welding Regulator x1 £41.00
    GasiQ 2 gauge Side Entry MIG Welding Regulator x1 £63.73
    GasiQ Optimator Lockable Gas Saver Side Entry Reg - 34Lpm x1 £165.12
    Add Welding Wire
    Bohler A18 Q G 3, 0.8mm Premium MIG Wire15kg x1 £26.89
    Bohler A18 Q G 3, 1.0mm Premium MIG Wire15kg x1 £25.95
    Bohler A18 Q G 3, 1.2mm Premium MIG Wire 15kg x1 £25.44
    Aluminium MIG Wire ER4043 1.0mm 2kg (AlSi) x1 £24.57
    Aluminium MIG Wire ER4043 1.2mm 2kg (AlSi) x1 £29.09
    ESAB OK Autrod 4043 Aluminium MIG Wire 1.0mm 7kg (AlSi) x1 £116.24
    ESAB OK Autrod 4043 Aluminium MIG Wire 1.2mm 7kg (AlSi) x1 £113.80
    Aluminium MIG Wire ER5656 1.0mm 7kg (AlMg) x1 £149.10
    Aluminium MIG Wire ER5656 1.2mm 7kg (AlMg) x1 £117.16
    Stainless Steel MIG Wire 308LSI 1.0mm 2kg x1 £88.55
    Stainless Steel MIG Wire 316LSI 1.0mm 2kg x1 £72.00
    Select Style Required
    4 Pin 400V 16A Mains Plug (Red) x1 £12.10
    4 Pin 400V 32A Mains Plug (Red) x1 £18.32
    5 Pin 400V 32A Mains Plug (Red) x1 £7.50
    Add a Tool
    Multi Purpose MIG Helper Pliers x1 £11.40
    Gas Shroud Spatter Reamer x1 £4.90
    Ambersil Anti Spatter Spray 400ml x1 £5.25

    Compact Design.  For Universal Use.  Superior Weld Properties.

    With the TPS 270i C and the TPS 320i C, Fronius has succeeded in packing all the advantages of the TPS/i range into an even more compact design. These new compact versions complete the lower end of the TPS/i power spectrum in perfect fashion. Owing to their compact dimensions and built-in wire feeder, they are a space-saving, portable and yet extremely powerful alternative to other members of the TPS/i series for construction sites and workshops in particular. With their broad range of applications, the TPS 270i C and the TPS 320i C are the ideal partners for carrying out repair work and maintenance tasks.

    Package includes

    • 4,075,170 TPS 270i C Pulse /4R /FSC
    • 4066015 Welding Process PMC
    • 4066012 Welding Process Standard
    • 4066014 Welding Process LSC
    • 4,100,803,IK OPT/i TPS 320i C PushPull /IK
    • 4,100,903,IK OPT/i TPS 270i C Ethernet /IK
    • 44,0001,1407 Feeder roll U 1.2 (4 of)
    • 4,048,002 CU 800i Water Cooler
    • 4,100,777,IK OPT/i CU Flow-thermosensor /IK
    • 4,077,014 TU Car 4 Standard
    • 4,047,807 MHP 320i W PM/FSC/JM/5.85m/LED
    • 44,0350,3168 MTB 400i W ML /30°/L185/H49
    • 44,0350,5220 BK PM Al ø1.2 /W/10m
    • 44,0350,5182 Wear part kit MTW 400i ø1.2
    • 43,0004,0161 Ground Cable 50mm² 4m Earth lead
    • 42,700,001 PAT Inverter
    • 4,100,726 Calibration document incl. calibration data

    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure
       Fronius TPS 270i Operating Instructions

    Related Items

    415v MIG Welders FAQs

    Straight answers to the questions people ask most when choosing a three-phase MIG welder for workshop and production use.

    Who needs a three-phase MIG welder?icon-minus-redicon-plus-red

    Three-phase machines suit fabrication shops, production lines, engineering workshops and anyone welding thicker material or for long periods. A three-phase supply carries more power for a given current per phase, so these machines can give higher output with a steadier load on the supply.

    If you only have a single-phase supply, you are limited to single-phase machines.

    What is the difference between 400v and 415v on these machines?icon-minus-redicon-plus-red

    In practice, very little. Older documents and some machine labels refer to 415v, while the current nominal figure for a UK three-phase supply is usually given as 400v. Machines are normally designed to work within a tolerance either side of their rated input, but the allowed range depends on the maker and the model.

    Check the data plate and the manual for the supply the machine accepts, compare that with the measured supply at your site, and ask a qualified electrician if you are unsure.

    What does a high duty cycle give me?icon-minus-redicon-plus-red

    Duty cycle is the proportion of a ten-minute period the machine can weld at a given current before it must cool. A higher duty cycle at your working current means fewer interruptions on long welds.

    If you weld continuously at high current, look at the rating at that current rather than the headline maximum.

    What is the difference between a compact and a separate wire-feeder system?icon-minus-redicon-plus-red

    A compact machine has the wire feeder built into the power source and is simpler and easier to move. A separate (split) system has an independent wire feeder connected by an interconnecting cable, which you can carry to the work, away from the power source.

    Separate feeders suit large fabrications and reaching big workpieces, and compact units suit general workshop use.

    See all 6 questions for this category
