    Rapid Ref : 0559130004

    ESAB Cutmaster 30+ Plasma Cutter with 6.1m SL60 Hand Torch, 10mm Cut, Dual Voltage 110v & 240v CE
    0559130004

    £1439.00  EX VAT
    SSP Suggested Selling Price = £2056.25  YOU SAVE £617.25
     Buy in 3 easy interest free payments of £479.67† with
    Additional items to consider

    *Included with the Cutmaster 30+ power source -  SL60 75° torch with lead, 3m (10ft) work lead with ground clamp and consumables kit.*

    The total portable plasma-cutting package.

    The Cutmaster 30+ is the perfect combination of power and portability for a hand-held plasma cutting machine. It means more, so ESAB has added a user-friendly 10.9cm TFT LCD screen and upgraded features that give the welder even more control and flexibility to master any cut up to 10mm. Together with the SL60 1Torch, it all adds to the total plasma cutting package.

    Recommended pierce and cut capacity: 10mm

    Maximum edge cut capacity: 16mm

    • Portable and durable with three handles and lightweight, industrial all-weather housing
    • Bright 10.9cm TFT LCD with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
    • Dual input 110-240V, 1-phase power with automatic voltage detection that sets max output amperage
    • Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
    • Switch between normal and grate cutting modes
    • Automatic air pressure detection and post-cut air purge to expand consumable life
    • 40% duty cycle @ 30A (120V), 100% @ 20A (120V)
    • Cutmaster Black Series consumables included for up to 60% longer life
    • Industry-leading 3-year warranty on the power supply and 1-year warranty on torch and leads

    Product Details

    Power + Portability

    Tackle cuts in any terrain with industrial housing and a compact design.

    - Pierce and cut capacity of 3/8" and a maximum edge cut capacity of 5/8"

    - 40% duty cycle at 30A and 100% duty cycle at 20A

    - Runs on both 110 and 240v input with auto-voltage detection

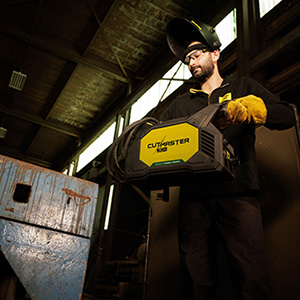

    - Lightweight design with three handles for easy transportation

    - Durable, weather-protected IP23S housing


    Efficiency + Ease

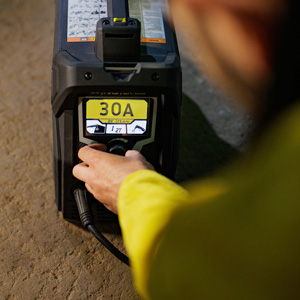

    Mastering cuts is simple with our user-friendly TFT LCD screen.

    - Bright 4.3" screen is optimal for displaying settings and making adjustments

    - Adjustable 2T/4T trigger lock to achieve long cuts by hand or with MechPak

    - Automatic air pressure recognition and purging for proper cutting pressure and extended consumable life

    - Comes as standard with long-lasting Cutmaster Black Series electrodes


    Simplicity + Flexibility

    Dominate any plasma cutting job with built-in functionality and flexibility.

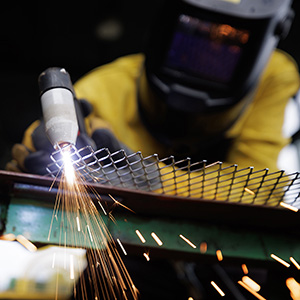

    - Switch from normal plate to grate cutting mode to extend consumable life when working with expanded metal

    - Equipped with SL60TM 1Torch and a full range of consumables for both shielded and unshielded cutting and gouging



    Brochures & Manuals

    BROCHURES & MANUALS
       View Brochure
       ESAB Cutmaster 30+ Operating Manual

    Related Items

    110v Plasma Cutters FAQs

    Straight answers to the questions people ask most when choosing and using 110 volt plasma cutters.

    Why would I choose a 110 volt plasma cutter?icon-minus-redicon-plus-red

    Many UK building sites, shipyards and other controlled workplaces require portable tools to run from a reduced-voltage 110 V supply for electrical safety. A plasma cutter that runs on 110 V lets you cut on those sites without needing a different power arrangement.

    It also suits mobile work, because a 110 V site transformer or generator is often the only power on hand away from the workshop.

    Will a 110 volt plasma cutter cut as thickly as a 230 volt one?icon-minus-redicon-plus-red

    Generally not. Power is voltage multiplied by current, and a 110 V connection can carry less current before the plug, cable or circuit is overloaded. That limits the output a machine can safely draw.

    Expect a 110 V machine to handle thinner and lighter work than a larger machine on a higher voltage. Check the maker's stated cut ratings for the voltage you will actually use, because many dual-voltage machines give a lower rating on 110 V.

    Can I run a 110 volt plasma cutter from a generator?icon-minus-redicon-plus-red

    Often yes, but it depends on the generator. It needs enough continuous power for the machine's input rating, a stable output voltage, and a type of output the manufacturer says is suitable for welding or cutting equipment.

    A generator that is too small can cause the cutter to cut out, struggle to start the arc or run poorly. Check the input power or current on the machine's data plate and compare it with the generator's rated output, allowing some margin. If unsure, ask the maker or our team.

    Do I still need a compressor with a 110 volt plasma cutter?icon-minus-redicon-plus-red

    Plasma cutters need clean, dry compressed air at the pressure and flow the manufacturer specifies. Some portable machines have a built-in compressor, which helps on site where an air line is not to hand.

    If yours needs external air, a small workshop compressor may be enough for light work, but check its output against the machine's air requirement. Wet or oily air shortens consumable life and spoils cut quality, so a filter or moisture trap is worthwhile.
