K14391-1 Lincoln Tomahawk 45 Plasma Cutter with 6m LC45 Hand Torch, 20mm Cut - 110 / 230v, 1ph
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : K14391-1

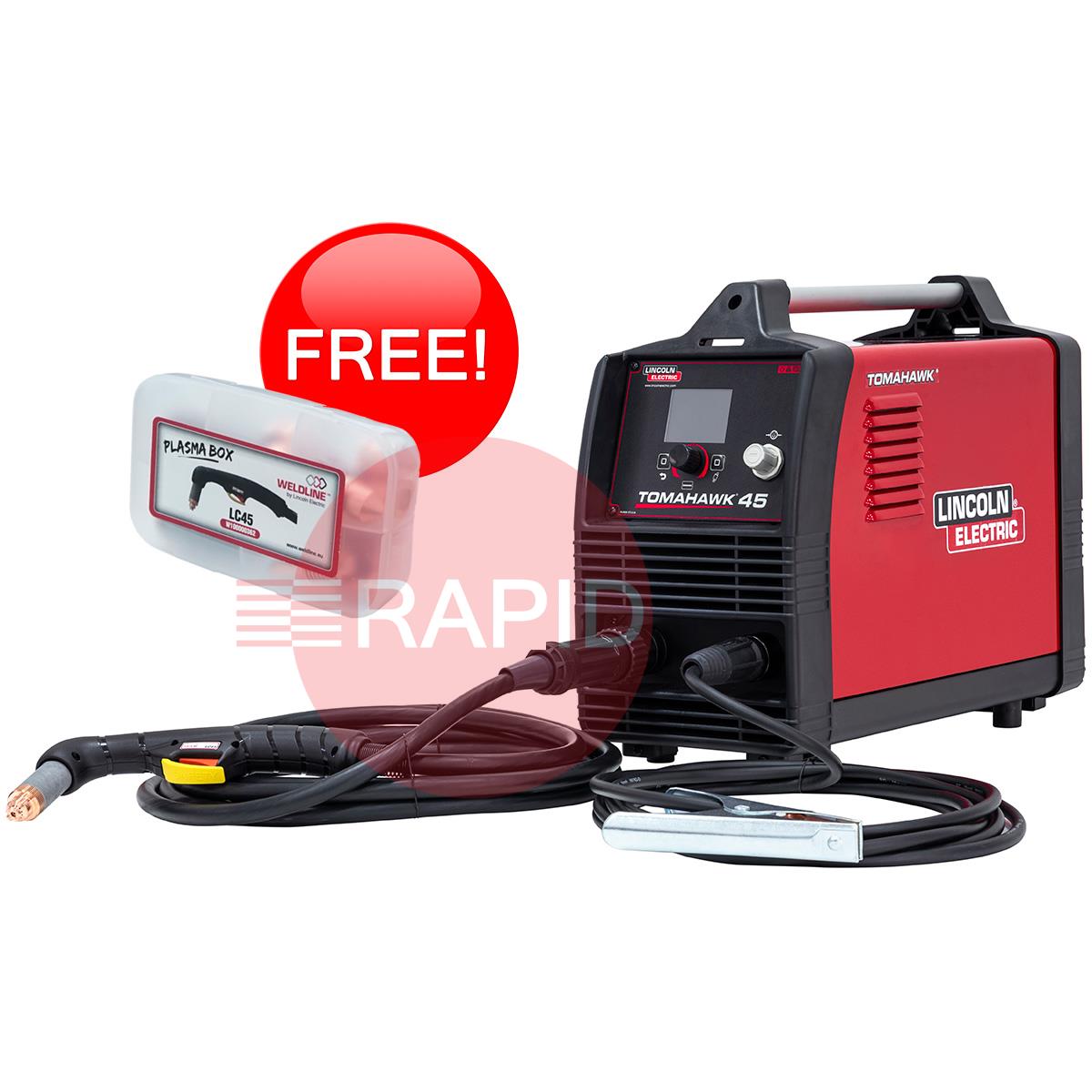

    Lincoln Tomahawk 45 Plasma Cutter with 6m LC45 Hand Torch, 20mm Cut - 110 / 230v, 1ph
    K14391-1

    Click here to see what's included
    £1338.20  EX VAT
    SSP Suggested Selling Price = £1564.23  YOU SAVE £226.03
     Buy in 3 easy interest free payments of £446.07† with
    Additional items to consider
    Select Eye Protection
    Jackson Nemesis Safety Spectacles - Green IRUV - Shade 5 Lens x1 £8.33
    Weltek Welding & Cutting Visor - Shade 5 Lens x1 £36.52
    Select Working Gloves
    Ultima LFYD / 100 Drivers Gloves x1 £6.16
    Kemppi Craft FABRICATOR Model 8 Gloves x1 £15.84
    Kemppi Pro FABRICATOR Model 4 Gloves x1 £21.56
    Hypertherm Cutting Gloves x1 £22.09
    Select required Tools
    Wooden Handle Chipping Hammer x1 £4.98
    3 Row Mild Steel Wire Brush x1 £1.57
    4 Row Stainless Steel Wire Brush x1 £7.62
    Select Air Compressor
    Workhorse Portable Air Compressor - 230V, 3HP, 100LT, 13 CFM x1 £664.30
    Shop Parts

    Package includes LC45 torch with 6m cable, LC45 spare consumables kit, air regulator and pressure gauge, internal water separator, work clamp and cable, spare consumables, shoulder strap, and input power cord.

    Features

    • TFT 2.8” Screen - For an easier and user-friendly user interface
    • Continuous Output Control – Focus the arc for different material thickness
    • Touch Start System – Reliable plasma arc initiation without high frequency
    • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal
    • Front Panel Purge Control – This makes it easy to set the air flow rate without initiating the plasma arc
    • Gouging & Grid Modes - (adjustable grid’s time)
    • Cool Operation, Long Consumable Life – New electrode and nozzle design save you money in the long run
    • Added Safety – Our Parts-in-Place system detects the correct installation of consumables and torch
    • Lightweight and Portable – Easily carried by one person
    • Engine Drive Compatible – Select a Lincoln Electric Outback or Vantage to power your Tomahawk in remote locations

    Product Details

    Plasma Cutting - Anywhere, Anytime

    The Tomahawk 45 plasma cutting systems are portable enough to carry to any job site. Hook up the compressed air, grab the torch and start cutting immediately.

    • Input power: 120/230/1/50/60
    • Rated Output Current/Voltage/Duty Cycle: at 230Vac 45A@45%, 40A@60% 30A@100% / at 120Vac 22A@60%, 15A@100%
    • Fuse (delayed) or Circuit Breaker: 16A
    • Pilot Current: 20A
    • Output Range: 15- 45A (230Vac), 15- 22A (120Vac)
    • Air Pressure Required: 5.0 bar - 6.0 bar
    • Air Flow Rate Required: 200 ±10% l/min
    • Net Weight Without Torch (Kg): 11.1

    What's Included

    LMANUAL Lincoln Electric Operating Manual. (User Instructions)

    Lincoln Electric Operating Manual. (User Instructions)

    W100000327 Lincoln Electric LC45 Plasma Hand Cutting Torch - 6m

    Lincoln Electric LC45 Plasma Hand Cutting Torch - 6m
    WARRANTYL2 Lincoln Electric 2 Year Parts & Labour Warranty

    Lincoln Electric 2 Year Parts & Labour Warranty

    Related Items

    110v Plasma Cutters FAQs

    Straight answers to the questions people ask most when choosing and using 110 volt plasma cutters.

    Why would I choose a 110 volt plasma cutter?icon-minus-redicon-plus-red

    Many UK building sites, shipyards and other controlled workplaces require portable tools to run from a reduced-voltage 110 V supply for electrical safety. A plasma cutter that runs on 110 V lets you cut on those sites without needing a different power arrangement.

    It also suits mobile work, because a 110 V site transformer or generator is often the only power on hand away from the workshop.

    What does dual voltage mean and how does it work?icon-minus-redicon-plus-red

    A dual-voltage plasma cutter can run on either 110 V or 230 V. Depending on the design, it may detect the voltage automatically or need you to change a plug, link or setting.

    Output is usually lower on 110 V than on 230 V, so read the rating plate and manual to see what you get on each. Always check the machine is set up correctly for the supply you are connecting before you switch on.

    Can I run a 110 volt plasma cutter from a generator?icon-minus-redicon-plus-red

    Often yes, but it depends on the generator. It needs enough continuous power for the machine's input rating, a stable output voltage, and a type of output the manufacturer says is suitable for welding or cutting equipment.

    A generator that is too small can cause the cutter to cut out, struggle to start the arc or run poorly. Check the input power or current on the machine's data plate and compare it with the generator's rated output, allowing some margin. If unsure, ask the maker or our team.

    Why does my cutter trip the supply or cut out on a site transformer?icon-minus-redicon-plus-red

    The usual causes are an undersized transformer, a long or thin extension lead, or a circuit shared with other tools. Plasma cutters draw a heavy current while cutting, and a voltage drop on a long lead makes the problem worse.

    Use the shortest, heaviest-gauge lead you can, plug the cutter in on its own, and make sure the transformer is rated for the machine's input current. Fault-protection devices that trip repeatedly are doing their job, so find the cause rather than bypassing them.

    See all 6 questions for this category
