Straightforward answers on choosing, fitting and replacing the consumable parts in a plasma cutting torch.

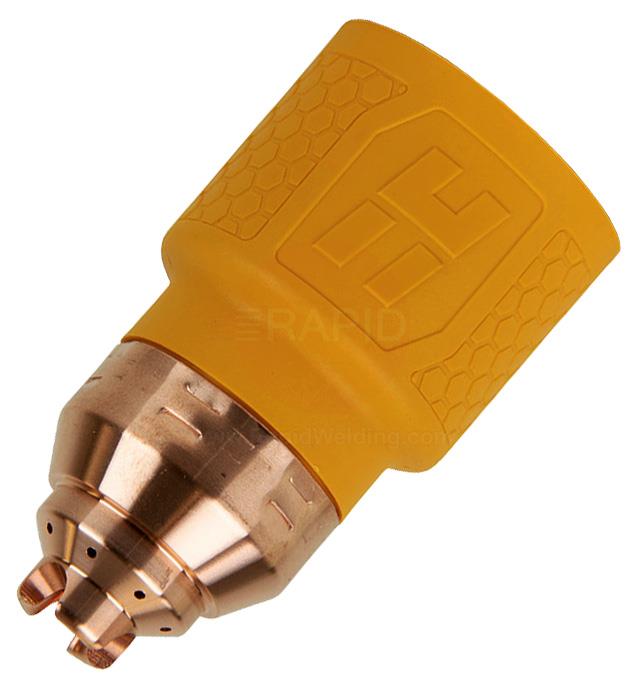

The electrode carries the current and starts the arc. The nozzle squeezes the arc through a small orifice so it is narrow and hot enough to cut. The swirl ring spins the gas around the electrode so the arc stays centred and stable.The retaining cap holds the inner parts in place, and the shield (or cap) protects the front of the torch from spatter and helps shape the gas around the cut. Each part wears in its own way, so a poor cut can point to any of them.
Falling cut quality is usually the first sign: rougher edges, more dross, a bevelled cut or a changed sound from the arc. Look at the parts too. A nozzle whose orifice is nicked, oval or rounded at the edge should be replaced, and an electrode with a deep pit in the centre of its insert is due for replacement.The pit depth that counts as worn differs between makers and electrode types, so use the figure in your torch manual rather than guessing. Do not wait until the part fails completely, as a failing electrode can damage the nozzle.
In most cases, yes. Guidance from plasma makers and trade articles is to replace the nozzle and electrode as a pair, because a new electrode in a worn nozzle (or the reverse) does not perform as well and the worn part can shorten the life of the new one.Some users find a nozzle outlasts an electrode if the electrode is changed before it fails, so a common compromise is to inspect the nozzle each time and replace it when the orifice shows damage. Follow your manual and judge by the cut you are getting.
A hand-cutting shield is designed for dragging the torch lightly along the plate or holding it at a short standoff. A machine (mechanised) shield is designed for a torch held at a fixed height on a table, track or robot.Using the wrong one can make the torch ride at the wrong height or cut poorly, so match the shield to how you actually use the torch. Some parts are common to both versions of a torch and some are not, so confirm in the manual for your torch and current.
