WELD AND CLEAN WITH ONE TIG MACHINE.

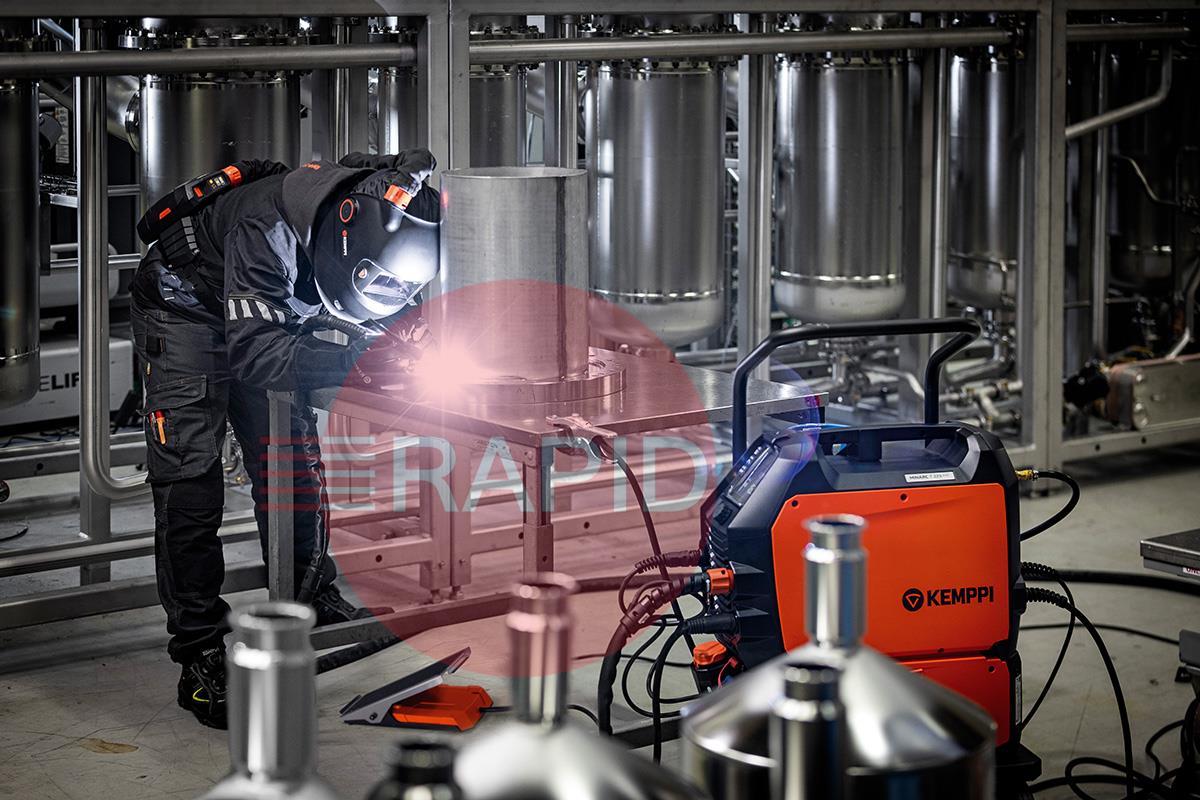

Minarc T 223 ACDC GM is a new 220 A single-phase AC/DC TIG welding machine with built-in electrolytic weld cleaning capability. This portable multi-voltage welding machine allows you to perform high-quality TIG welding and professional weld cleaning with one machine.
Take the Minarc T 223 ACDC GM anywhere on-site and save time by completing and finishing perfect welds in one spot. The new MAX WeldClean electrolytic cleaning process is simple and easy to use. It just takes a moment to convert your TIG torch to cleaning mode, where an efficient combination of electric current and phosphoric acid offers quick removal of oxidation and discolouration around the weld, delivering immaculate welds.
Powerful and versatile, the Minarc T 223 ACDC GM TIG welding machine has important features like the Auto Pulse function, AC frequency control, memory channels, and convenient remote control options. A large colour display with impact protection and a clear user interface makes choosing settings in a wide range of light conditions easy.
Portable and lightweight
Its portable size makes Minarc T 223 ACDC GM easy to carry. Take it anywhere on-site for a convenient combination of powerful welding performance and easy-to-use electrolytic cleaning.
Powerful welding performance
Minarc T 223 ACDC GM is a professional TIG welder with high-quality welding performance and easy-to-use controls. It offers AC and DC TIG welding for working on a wider range of metals and thicknesses.

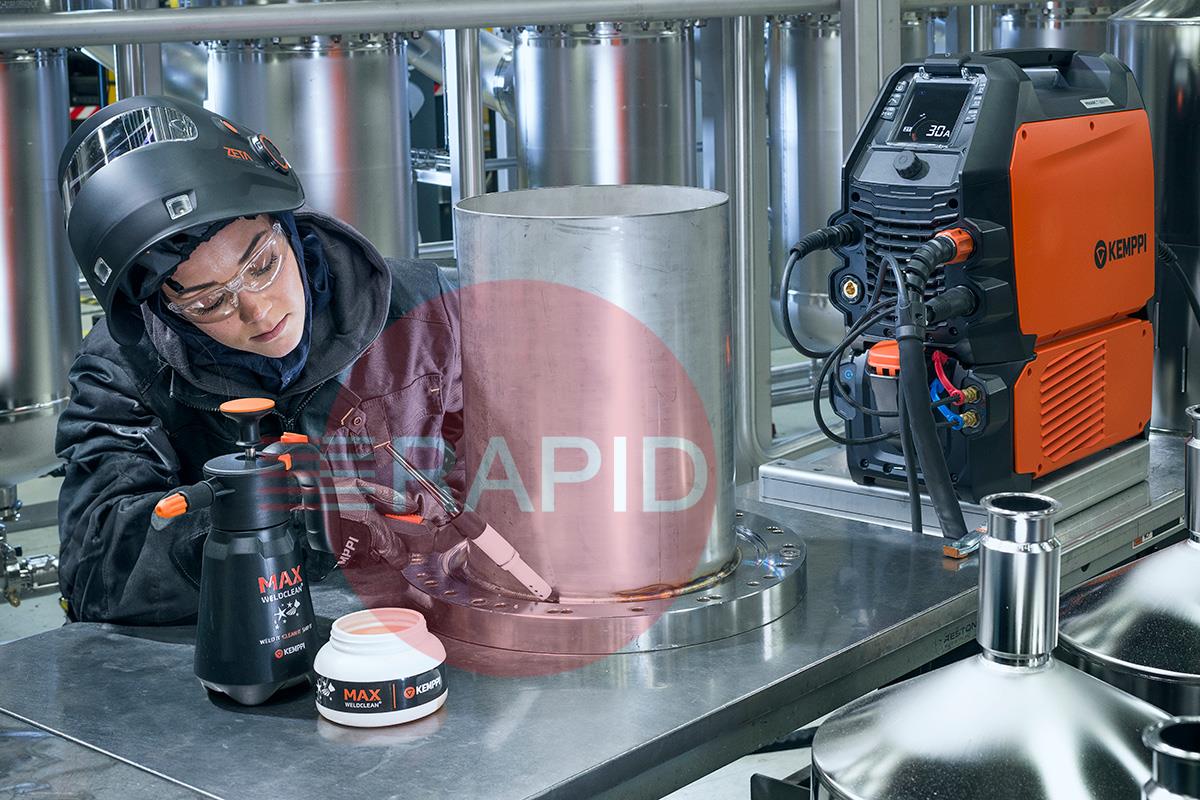

Weld and clean with one machine
MAX WeldClean lets you complete high-quality welds without using a separate weld cleaning machine. Save time and money by quickly activating cleaning mode for a powerful electrolytic weld cleaning process right after completing a weld. Post-processing the welds has never been so fast!
Fast and accurate control

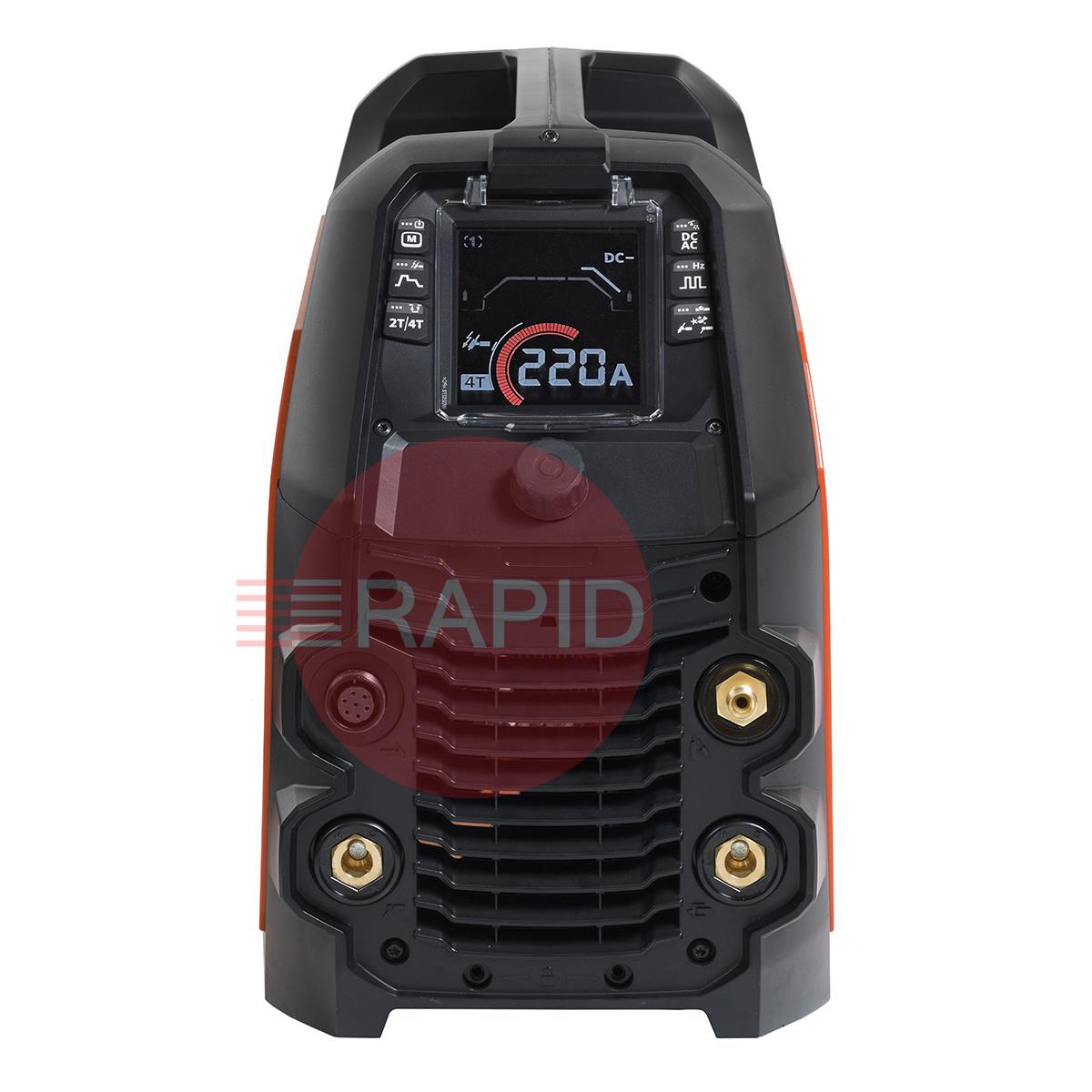

A large, clear, and bright colour LCD is easy to see in different work environments, and an intuitive control knob combined with simple on-screen process selection makes welding easier.
Kemppi Genuine Earth Cable 35mm² x 5m
Kemppi Minarc T223 AC/DC Tig Power Source, 240V

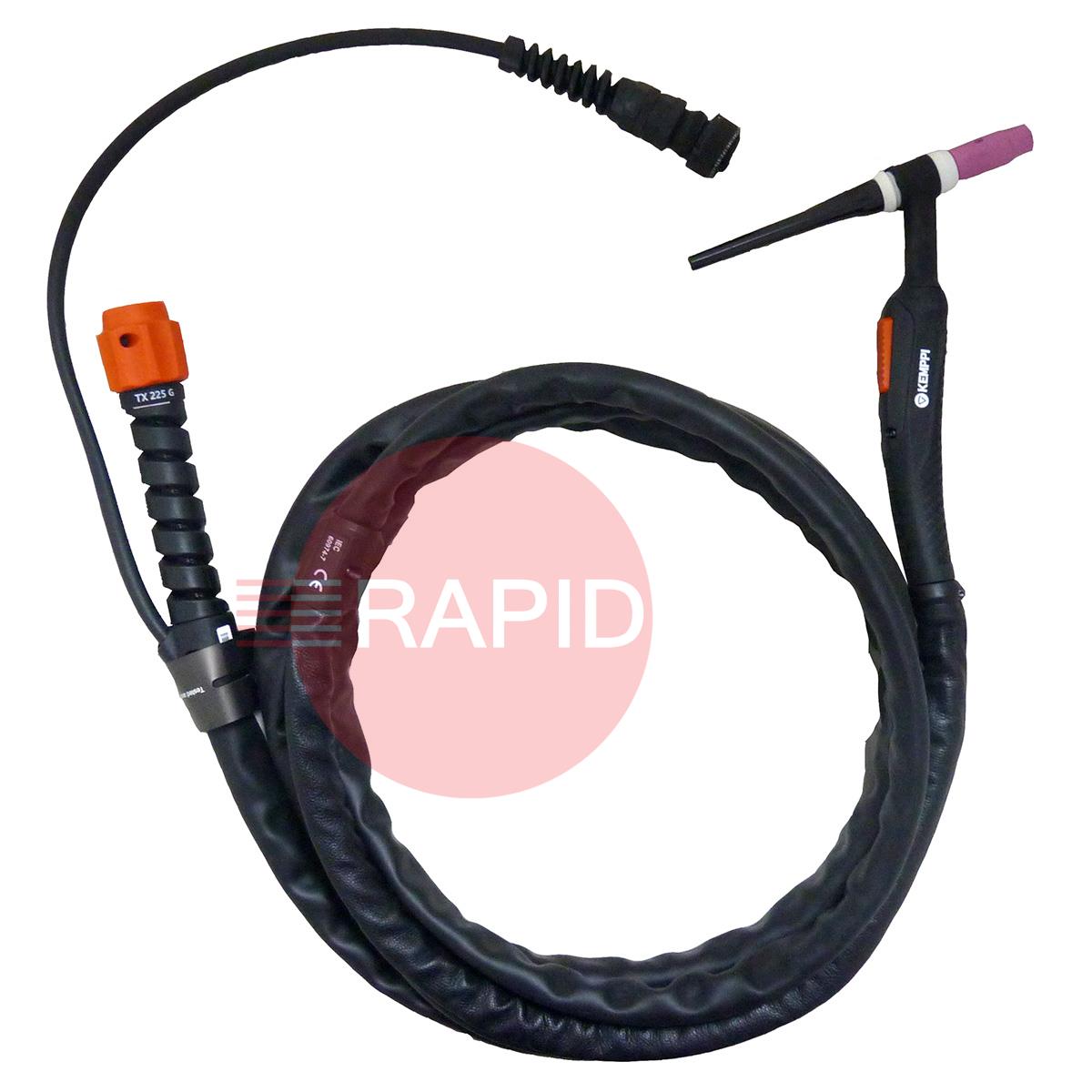

Kemppi Flexlite TX K5 225G Air Cooled 220 Amp Tig Torch, with 70° Angle Neck - 4m, 7 Pin
Kemppi 3 Year Global Parts & Labour Warranty
Straight answers to the questions people ask most when choosing and using TIG welders for 110 volt site supplies.
A 110 volt supply can supply less power than 230 volts for the same plug and fuse size, so the maximum welding current is lower than on the same machine at 230 volts. That still suits thin and medium material, pipework and many repair jobs.Check the rated output at 110 volts on the data plate or specification, not the headline figure for 230 volts. Thicker material, or long runs at high current, may need a higher supply or a bigger machine.
A multi-voltage machine senses the supply and adjusts to suit, so the same welder can run from 110 volts and 230 volts, and sometimes other ranges. This gives flexibility if you move between site and workshop.Remember that the output you get depends on the supply it is connected to, and that the plug and fuse or breaker must match. Always check the manual for the maximum current at each voltage.
Often yes, if the generator is large enough and produces a clean, stable output. Inverter welders can be sensitive to poor quality power, so check the generator's output rating, waveform and regulation against the welder's requirements.A generator that is too small will cause cutting out or damage. The welder manufacturer's guidance on generator size and type is the best guide, and a 110 volt transformer or centre-tapped output is often used on site. If unsure, ask before connecting.
Yes, use a cable properly rated for the current the welder draws, and keep it as short as practical. A thin or very long cable drops voltage, which reduces welding power and can make the machine cut out. Extension reels should be fully unwound, since coiled cable can overheat.Use site-approved 110 volt cable and connectors in good condition. Check the manual for the recommended cable size, and have any doubtful equipment inspected before use.
