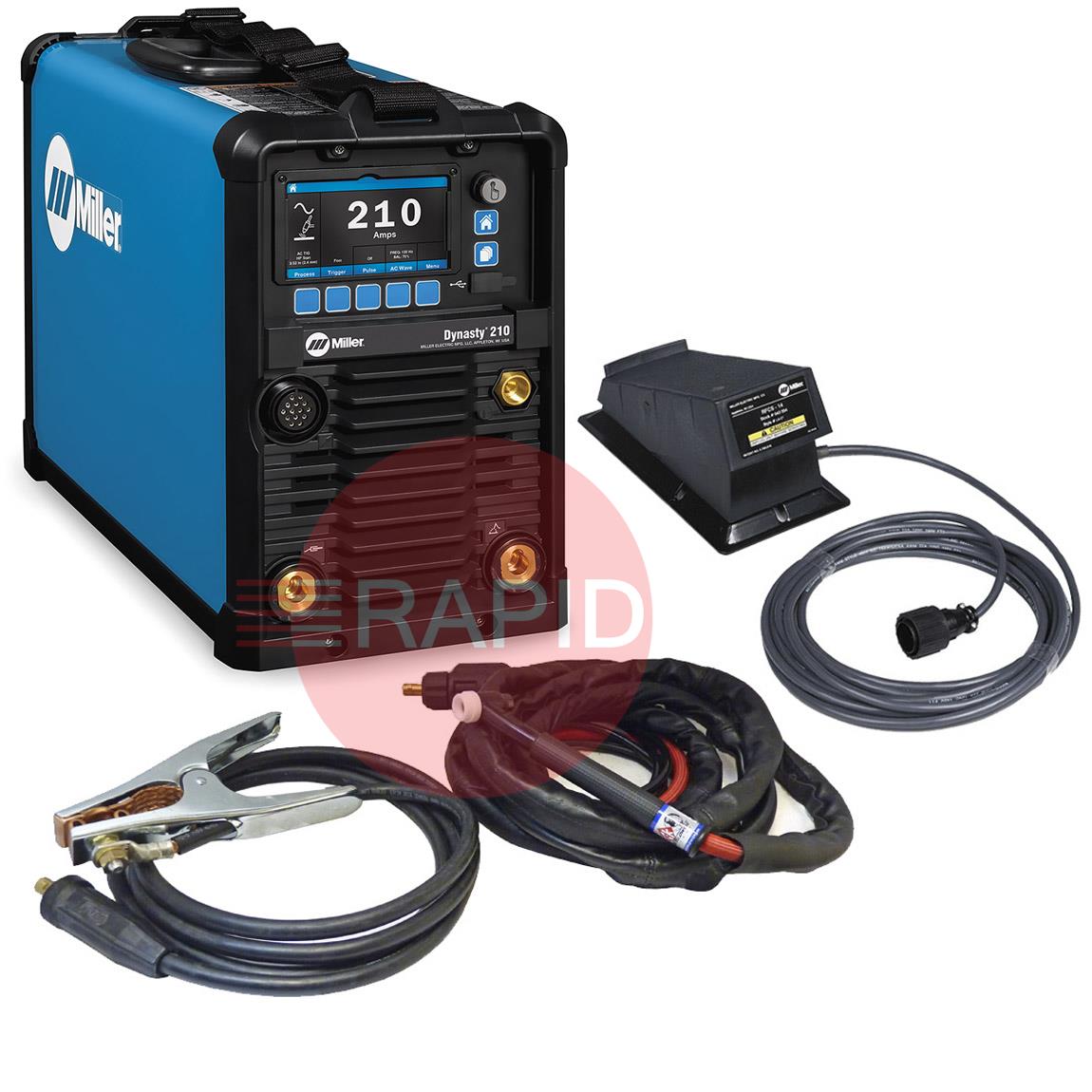

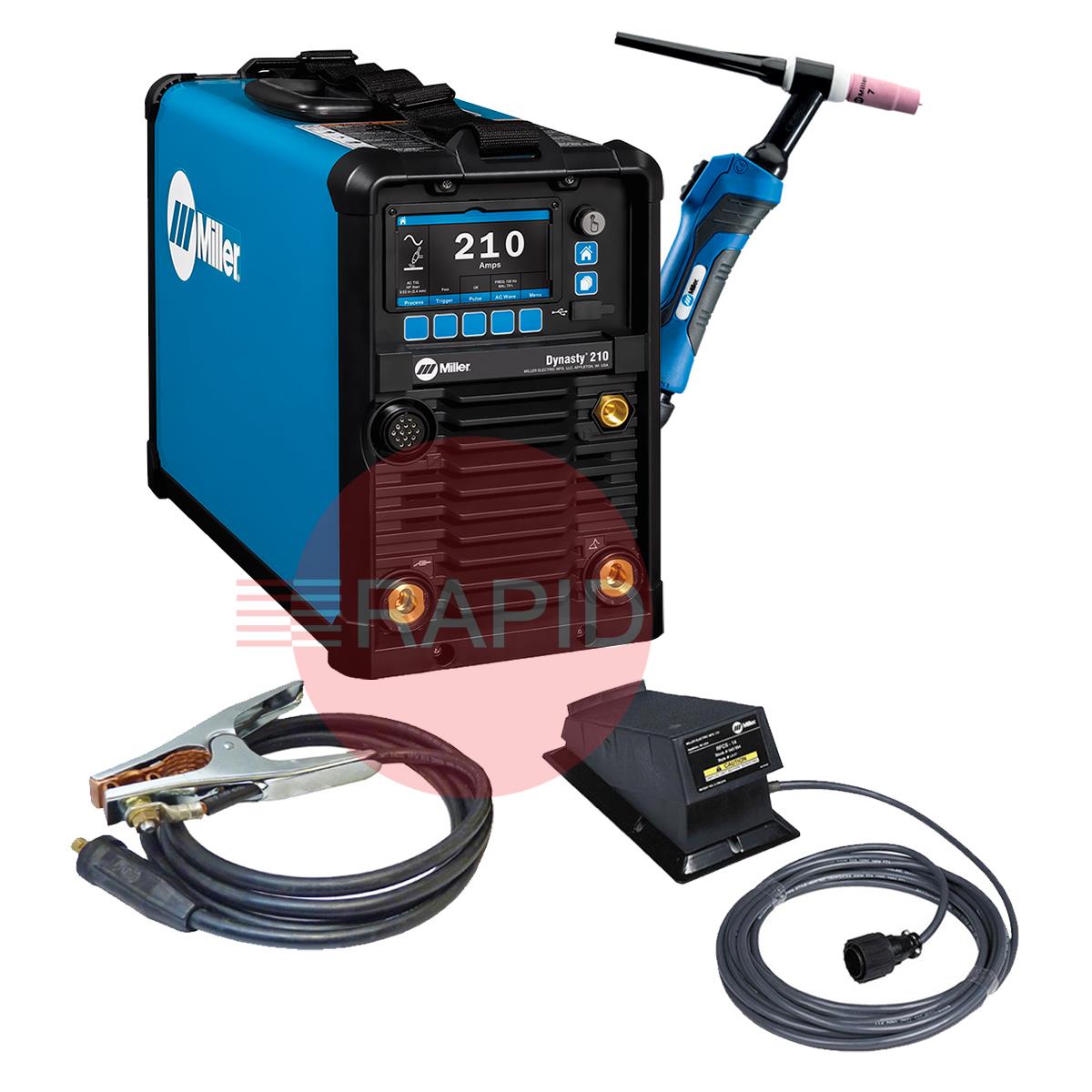

Miller Dynasty 210 AC/DC TIG Welder, 120-480v
907816003APFP

Features

• Easy-to-understand interface with a 4.5" LCD display - ensures proper machine setup and parameter selection. Informative on-screen explanations and dynamic images enhance the parameter selection process.
• Program memory - allows easy naming, saving, and recalling of favourite weld settings. Deliver more productivity by eliminating the need to manually set the parameters. Deliver consistent quality by welders of all skills.
• Pro-Set - eliminates the guesswork when setting weld parameters.
• Locks and limits - provide control of the weld parameter range minimising deviation from the welding procedure specification (WPS).
• Auto-Line - allows for any input voltage hook-up (120–480 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
• Blue Lightning - provides more consistent high-frequency (HF) arc starts and greater reliability compared to traditional arc starters.
• USB - front panel port provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Cooler Power Supply (CPS) - is an integrated 120-volt dedicated-use receptacle for the Coolmate 1.3.
• Cooler-On-Demand - feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.

Weld Process Features

• AC TIG Features Balance control provides adjustable oxide removal which is essential for creating the highest-quality aluminium welds. Frequency controls the width of the arc cone and can improve directional control of the arc.
• AC Waveforms.
  Advanced square provides a fast-freezing puddle, deep penetration, and fast travel speeds. Soft square for a soft buttery arc with maximum puddle control and good wetting action. Sine for customers that like a traditional arc. Quiet with good wetting. Triangular reduces the heat input and is good on thin aluminium. Fast travel speeds.
• Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode.

• AC/DC Stick Features.
  DIG control allows the arc characteristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth-running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes like E6010. Hot Start adaptive control provides positive arc starts without sticking. AC frequency control adds additional stability when stick welding in AC for smoother welds. Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable.
• DC TIG features - Exceptionally smooth and precise arc for welding exotic materials
• Pulse Waveforms - Square provides a fast-freezing puddle for ultimate arc control. Sine produces a reduced audible sound and provides a more fluid puddle that is good for overlaying applications. Triangular provides a quick-forming puddle while further reducing heat for thin materials.
