K14387-1P Lincoln Invertec 300TP DC TIG Inverter Welder Ready To Weld Package - 415v, 3ph
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : K14387-1P

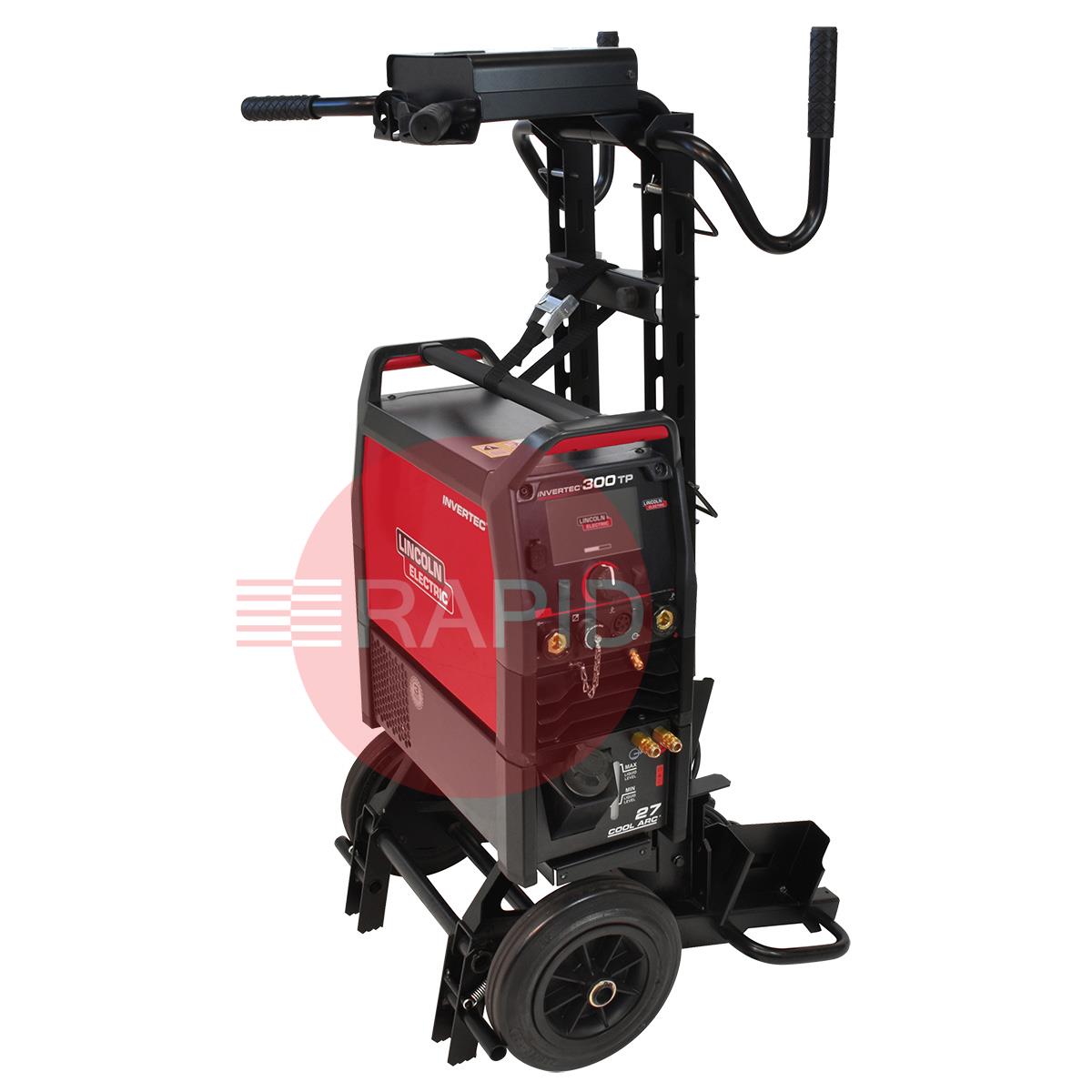

    Lincoln Invertec 300TP DC TIG Inverter Welder Ready To Weld Package - 415v, 3ph
    K14387-1P

    Select Option
    Prices From £3000.00 ex VAT

    The Invertec 300TP is a new generation TIG inverter, which is the next step in professional welding, offering excellent welding processes and high performance to increase productivity. Due to its unique design, the Invertec 300TP is designed with the latest energy-saving technology and is ready to work in the most difficult environments. To achieve excellent welding results, The Invertec 300TP uses digital communication systems and built-in communication devices such as USB, making monitoring and tracking welding operations easy.

    Features

    • 400V ±15%, 3Ph 50/60Hz, generator ready
    • Light weight – 16Kg
    • Inverter platform product
    • Idle power 19W and efficiency > 85%
    • Intelligent F.A.N. (Fan As Needed)
    • Customer Support
    • USB Connectivity
    • Voltage Reduce Device (VRD)
    • Cellulosic 6010 stick capability
    • Gouging capability

    Product Details

    415v TIG Welders FAQs

    Straight answers to the questions people ask most when choosing and using three phase TIG welders.

    Why choose a three phase TIG welder?icon-minus-redicon-plus-red

    Three phase machines are designed for industrial use, where a three phase supply is installed. The supply can provide far more power than a single phase socket, so these machines provide higher welding currents, heavier duty cycles and the ability to weld thick sections, especially aluminium, all day.

    They are the usual choice for fabrication shops, pipe welding, heavy repair and production work, where reliability and capacity matter more than portability.

    What is the supply requirement?icon-minus-redicon-plus-red

    A three phase machine needs a suitable three phase supply with the correct voltage and protection. The data plate and manual specify the voltage range, input current and fuse or breaker size. Many machines accept a range of three phase voltages.

    Have the installation, cable and isolator fitted and checked by a competent electrician. Do not use adaptors or improvised connections, and make sure the supply capacity suits the full welding output.

    Can I run a three phase TIG welder from a generator?icon-minus-redicon-plus-red

    Sometimes, but only if the generator is a three phase unit suited to the welder. Check the data plate and manual for your machine for its input current and any minimum generator size or type the maker states.

    Generators are rated for balanced three phase loads, and power factor affects the size you need, so allow a generous margin above the welder's input requirement. The output must be stable and well regulated. An undersized or poor quality generator can cause cutting out, an unstable arc or damage to the electronics. If in doubt, ask the maker or a competent electrician before connecting.

    AC/DC or DC only: which do I need?icon-minus-redicon-plus-red

    A DC machine welds steel, stainless steel, copper and many other metals, but not aluminium or magnesium. An AC/DC machine adds AC output, which cleans the oxide layer on aluminium and magnesium so they can be welded properly.

    If you will ever weld aluminium, choose AC/DC. Look for adjustable AC balance and frequency, which let you tune the cleaning action and the arc focus.

    See all 6 questions for this category
