PATON ProTIG-315 Water Cooled AC/DC TIG Welder Package - 400v, 3ph
1034031515

Name: PATON ProTIG-315 Water Cooled AC/DC TIG Welder Package - 400v, 3ph
SKU: 1034031515
Price: 1890.00 GBP

Click here to see what's included

£1890.00 EX VAT

SSP Suggested Selling Price = £2810.00 YOU SAVE £920.00

Buy in 3 easy interest free payments of £630.00^† with

Additional items to consider

Shop Parts

Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

Professional multifunctional welding machine for welding aluminium, black steel, and stainless steel. Supplied with a cooler, trolley, and control pedal
Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
Advantages: High-frequency arc ignition, RIV (spot welding) function, ability to save welding settings, improved arc stabilisation, smooth parameter adjustment, pulse welding
1-Year Warranty

Product Details

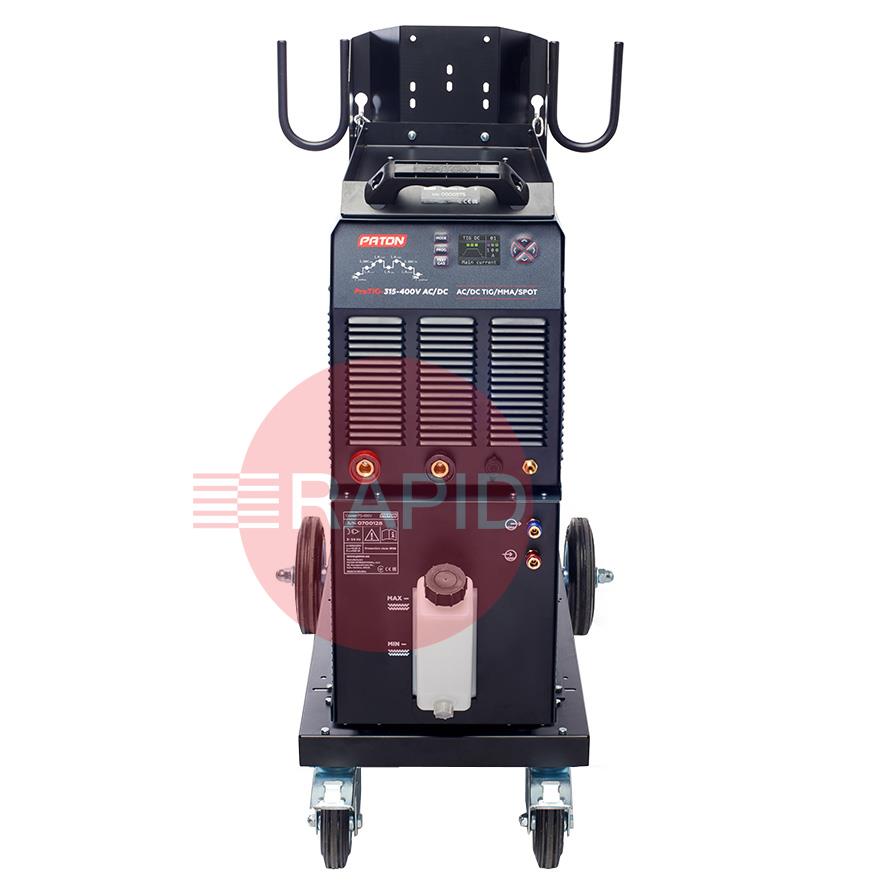

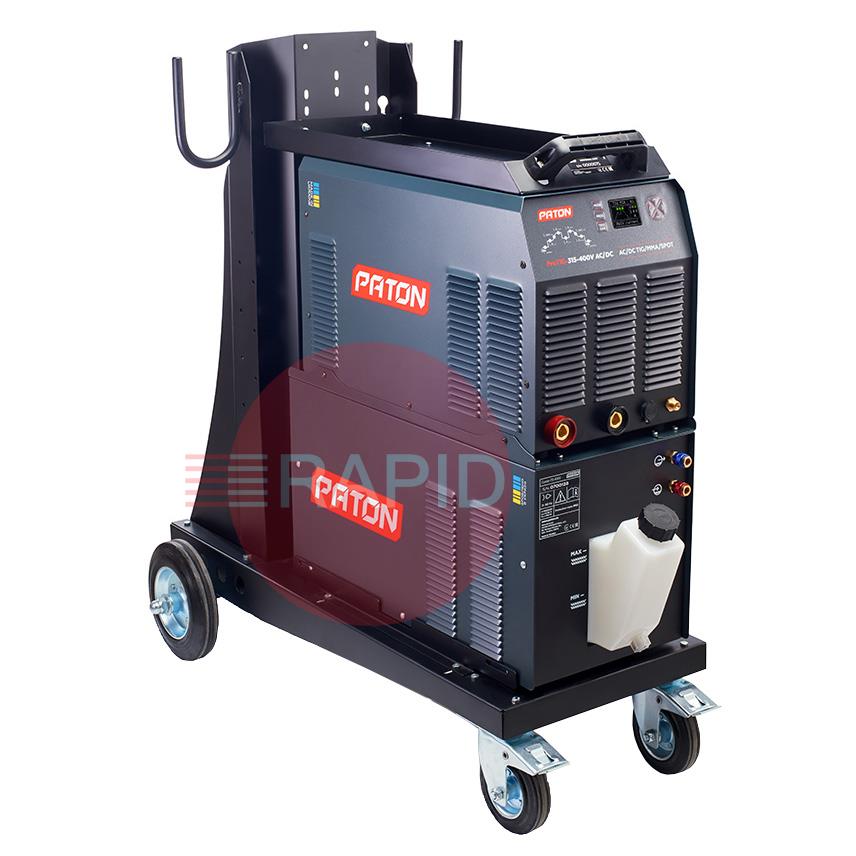

PATON PROTIG-315-400V WK is an industrial argon-arc welding kit, which is designed for welding thick-walled pieces of a wide range of non-ferrous and ferrous metals: aluminium and its alloys, copper, titanium, stainless steel, cast iron, and all grades of steel with both direct and alternating current up to 315 amperes. It works in TIG AC, TIG DC, TIG MIX, MMA AC/DC, SPOT, Double Pulse, and TIG Lift modes. The machine has a colour LCD screen and can store up to 10 sets of user-configured parameters for each welding mode. The ProTIG-315 benefits from a 50% duty cycle. This machine has a 1-year warranty.

Specification

Mains Voltage:	380/400v
Welding Current Range:	10A - 315A
Duty Cycle:	315A at 50%, 200A at 100%
Nominal Power Consumption:	13.5kVA
Dimensions (L x W x H):	465mm x 150mm x 350mm
Weight:	27.7kg
Protection Class:	IP23

Perfect For

Production companies of the food and chemical industry
Truck fleets
Repair shops
Industrial companies that produce goods using non-ferrous metals and their alloys

Brochures & Manuals

BROCHURES & MANUALS

View Brochure

PATON Pro-TIG User Manual

What's Included

	PATON 315 TIG Welding Cart
	Genuine Binzel ABITIG 18 4m Water Cooled Tig Torch for use with PATON TIG machines
	PATON 7S Water Cooler 400v

	PATON MMA Cable Kit, 4m Electrode Lead with 4m Earth Return, 25mm²
	PATON Quick Gas Connector
	PATON 1 Year Warranty

Warranty and Support

One-Year Warranty
UK based service centre and support hotline
Access to spare parts and calibration service

415v TIG Welders FAQs

Straight answers to the questions people ask most when choosing and using three phase TIG welders.

Why choose a three phase TIG welder?

Three phase machines are designed for industrial use, where a three phase supply is installed. The supply can provide far more power than a single phase socket, so these machines provide higher welding currents, heavier duty cycles and the ability to weld thick sections, especially aluminium, all day.

They are the usual choice for fabrication shops, pipe welding, heavy repair and production work, where reliability and capacity matter more than portability.

Can I run a three phase TIG welder from a generator?

Sometimes, but only if the generator is a three phase unit suited to the welder. Check the data plate and manual for your machine for its input current and any minimum generator size or type the maker states.

Generators are rated for balanced three phase loads, and power factor affects the size you need, so allow a generous margin above the welder's input requirement. The output must be stable and well regulated. An undersized or poor quality generator can cause cutting out, an unstable arc or damage to the electronics. If in doubt, ask the maker or a competent electrician before connecting.

What does duty cycle mean?

Duty cycle is the proportion of a ten minute period that a machine can weld at a given current without overheating. A figure of 60 percent means six minutes welding and four minutes cooling. It falls as current rises.

For continuous production welding, choose a machine whose duty cycle at your working current is high. Industrial three phase machines are generally built to a higher duty cycle than lighter single phase ones. Check the rating at the current you will actually use.

AC/DC or DC only: which do I need?

A DC machine welds steel, stainless steel, copper and many other metals, but not aluminium or magnesium. An AC/DC machine adds AC output, which cleans the oxide layer on aluminium and magnesium so they can be welded properly.

If you will ever weld aluminium, choose AC/DC. Look for adjustable AC balance and frequency, which let you tune the cleaning action and the arc focus.
