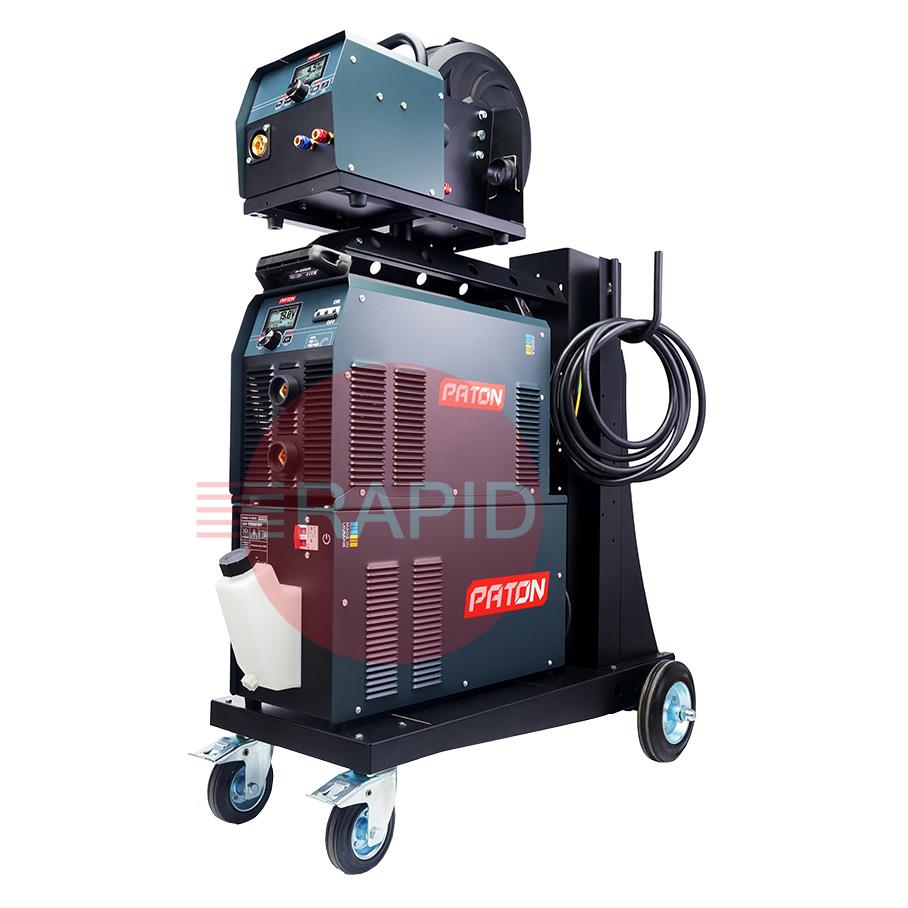

The PATON ProMIG-500 400V welding machine is designed for semi-automatic welding using the MIG/MAG process with shielding gases and protective mixtures, manual arc welding using the MMA method, and arc welding in an argon shield using the TIG method with DC current.
PATON 7 Water Cooler - 400v, 3ph
PATON U-Groove Roller Set – Aluminium Wire: 0.8 / 1.0mm
PATON V-Groove Roller Set – Solid Wire: 0.8 / 1.0 / 1.2 / 1.6 mm
PATON 5m Earth Return, 50mm²
PATON TurnEase 360 Welding Cart
PATON Quick Gas Connector
PATON 2 Year Warranty
Straight answers to the questions people ask most when choosing a three-phase MIG welder for workshop and production use.
Three-phase machines suit fabrication shops, production lines, engineering workshops and anyone welding thicker material or for long periods. A three-phase supply carries more power for a given current per phase, so these machines can give higher output with a steadier load on the supply.If you only have a single-phase supply, you are limited to single-phase machines.
In practice, very little. Older documents and some machine labels refer to 415v, while the current nominal figure for a UK three-phase supply is usually given as 400v. Machines are normally designed to work within a tolerance either side of their rated input, but the allowed range depends on the maker and the model.Check the data plate and the manual for the supply the machine accepts, compare that with the measured supply at your site, and ask a qualified electrician if you are unsure.
Yes, it needs a three-phase connection with the correct cable size and protection for the machine's input current, installed by a competent electrician. The manual states the recommended supply cable and fuse or breaker rating.Do not connect a machine to a circuit that has not been checked for the load. Poor supply causes tripping, overheating and unreliable welding.
A compact machine has the wire feeder built into the power source and is simpler and easier to move. A separate (split) system has an independent wire feeder connected by an interconnecting cable, which you can carry to the work, away from the power source.Separate feeders suit large fabrications and reaching big workpieces, and compact units suit general workshop use.
