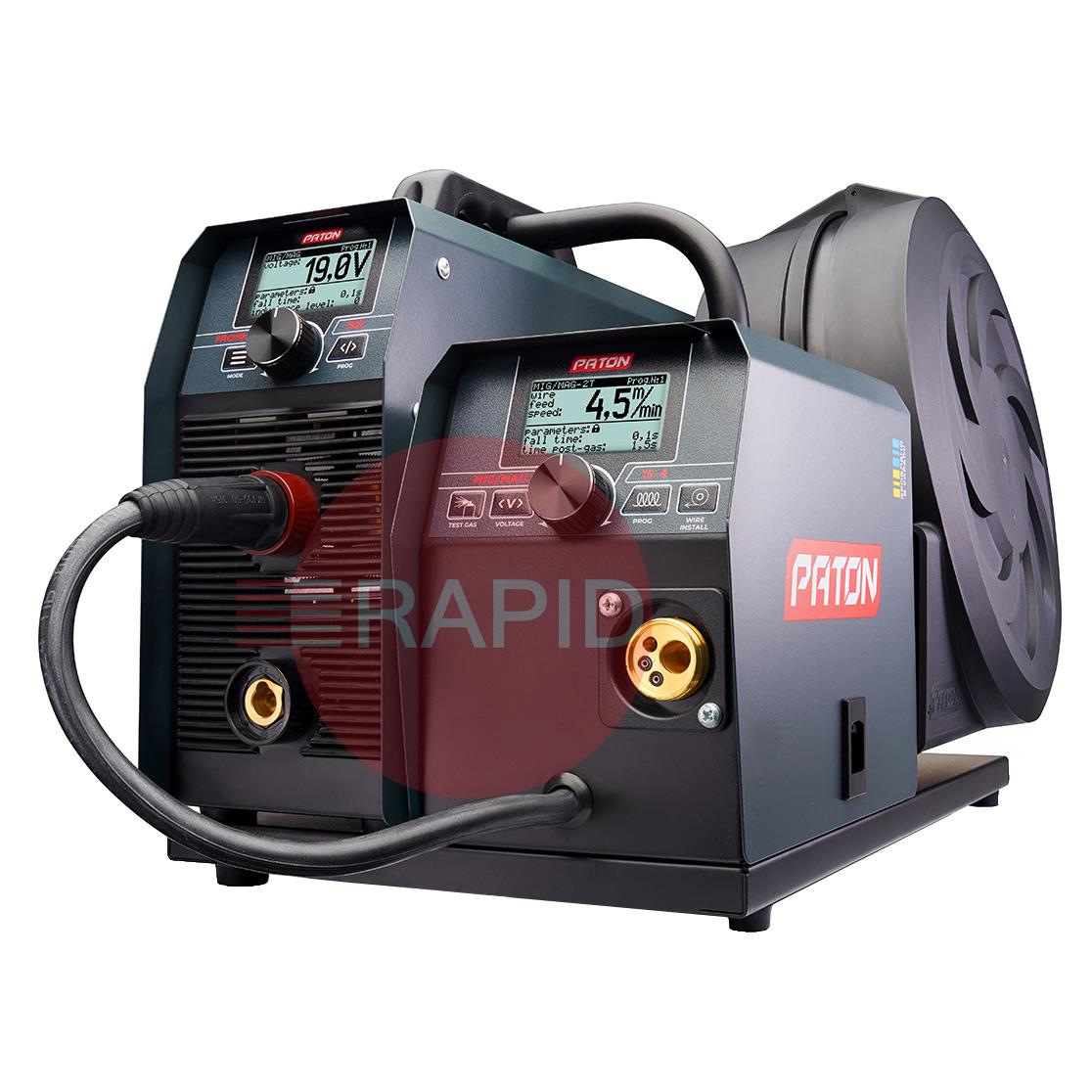

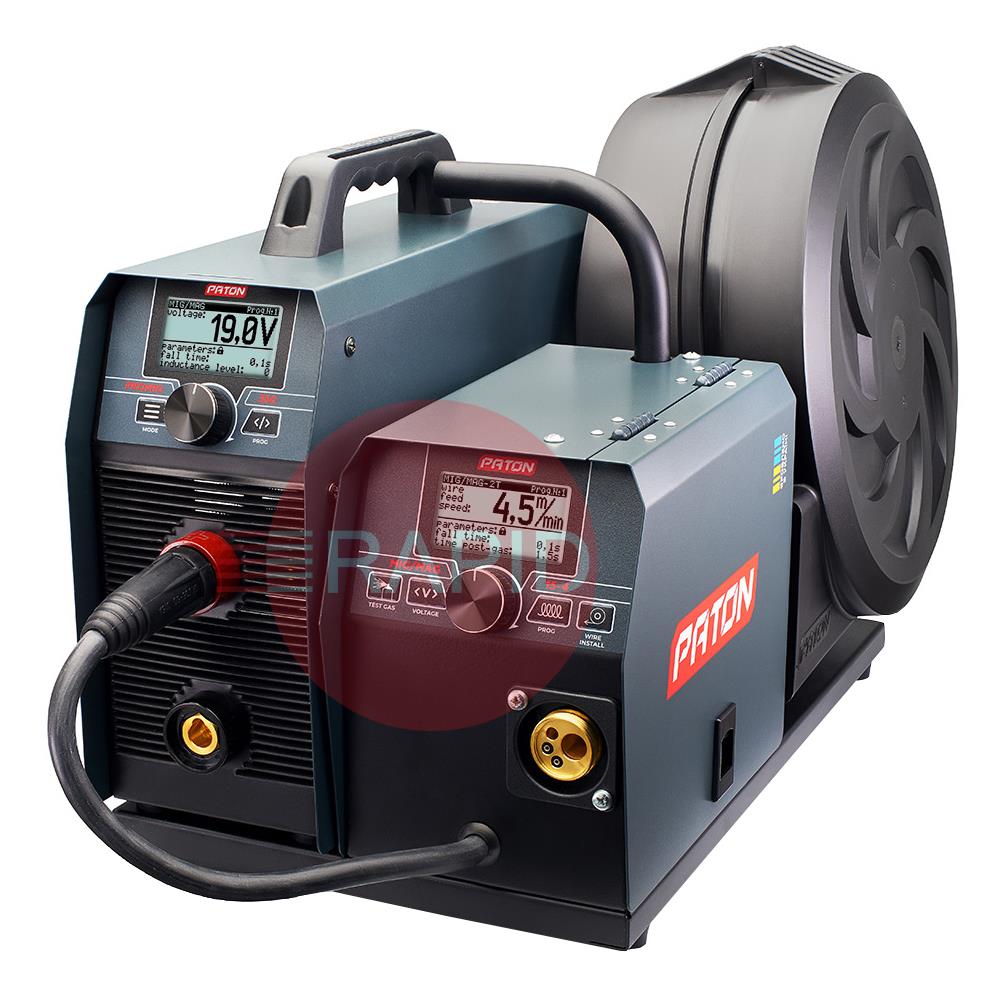

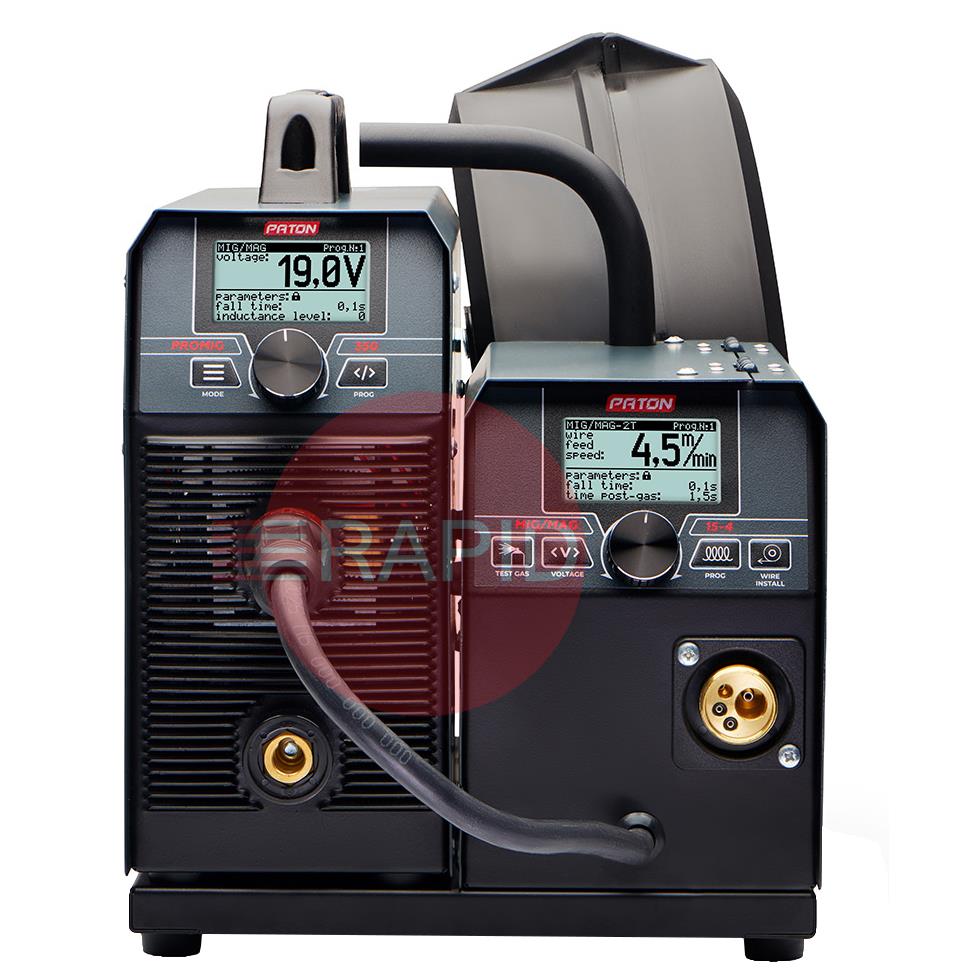

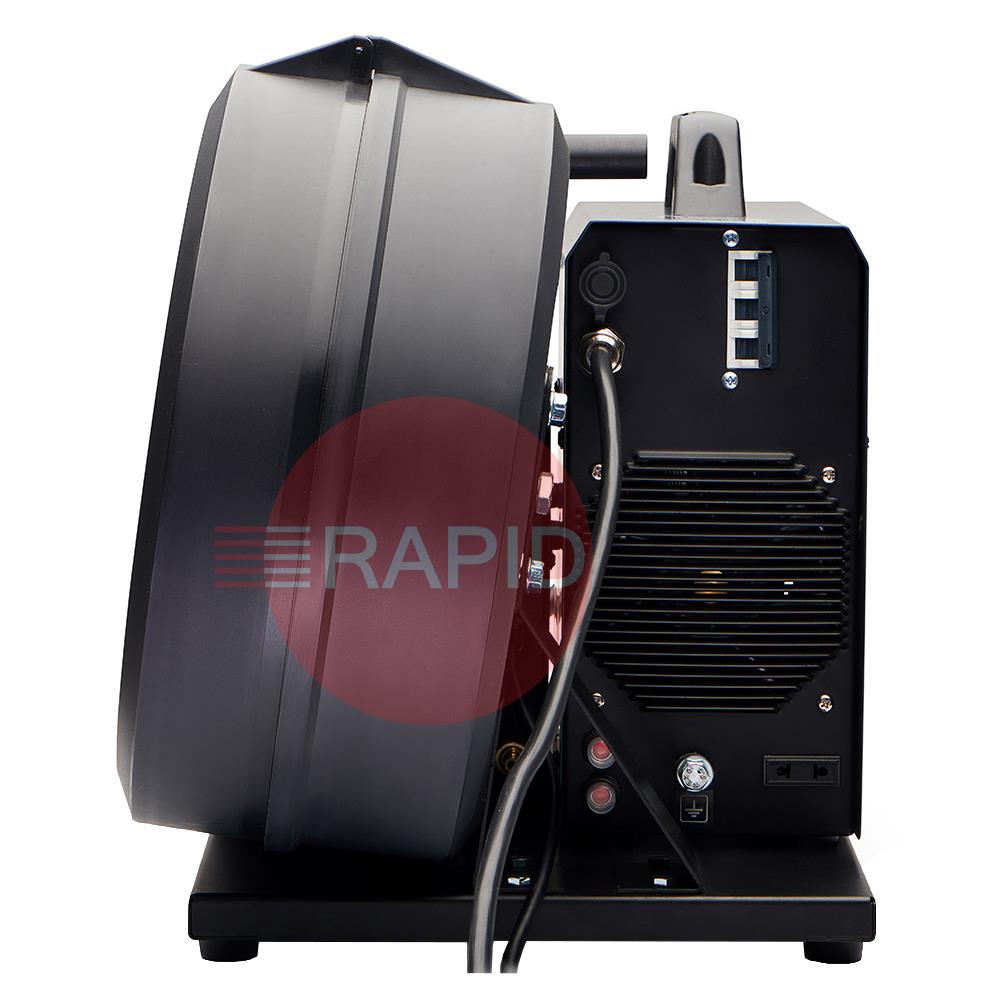

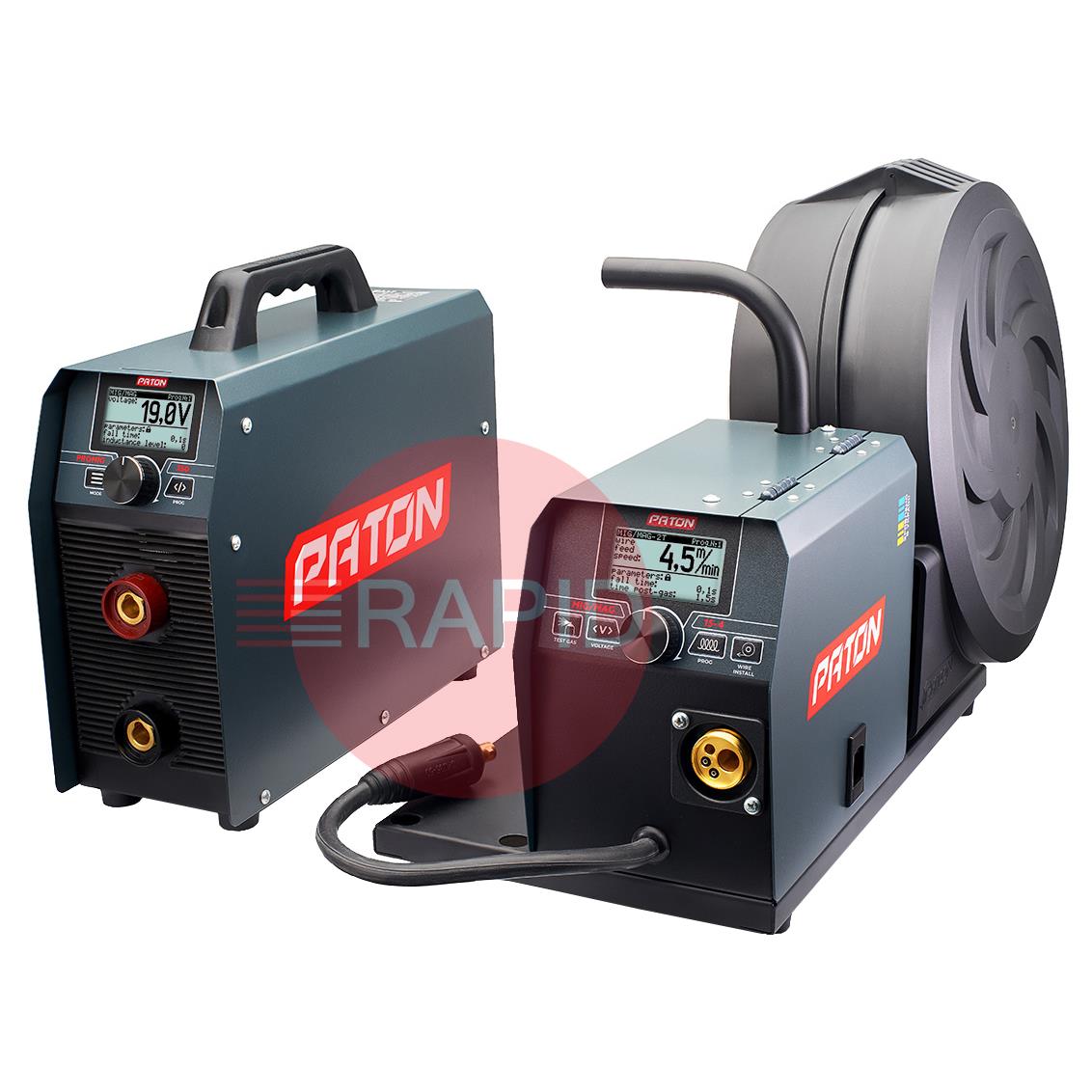

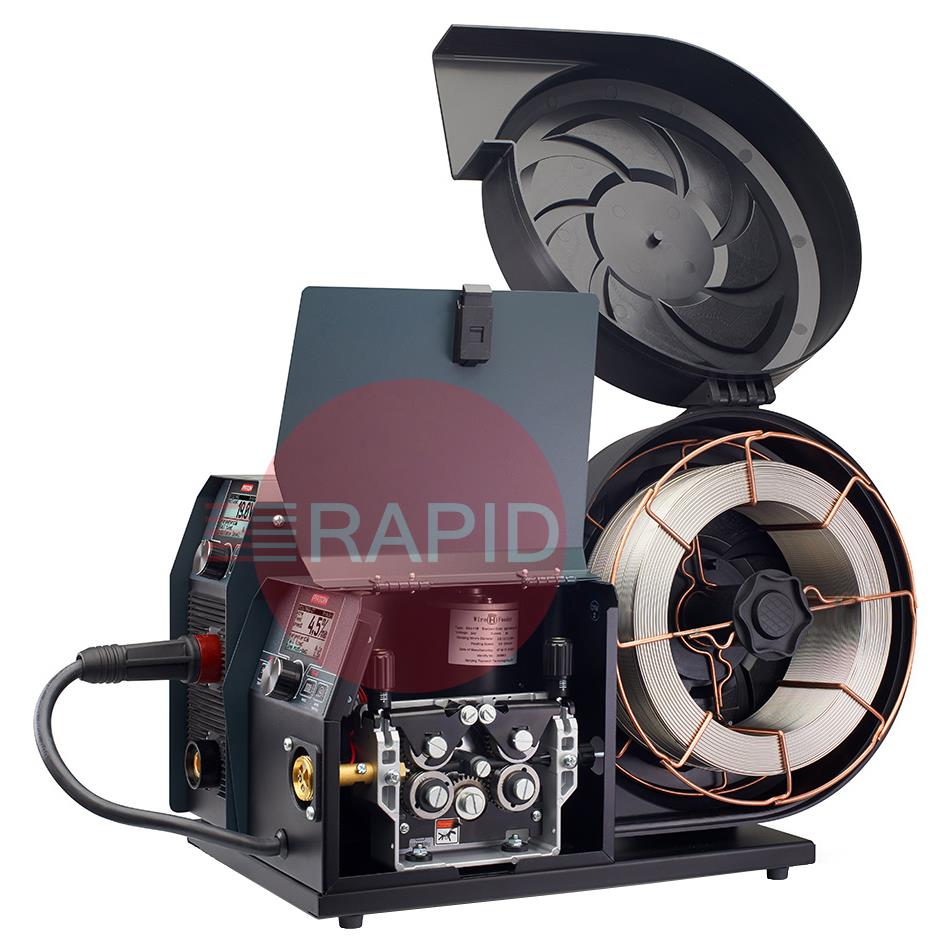

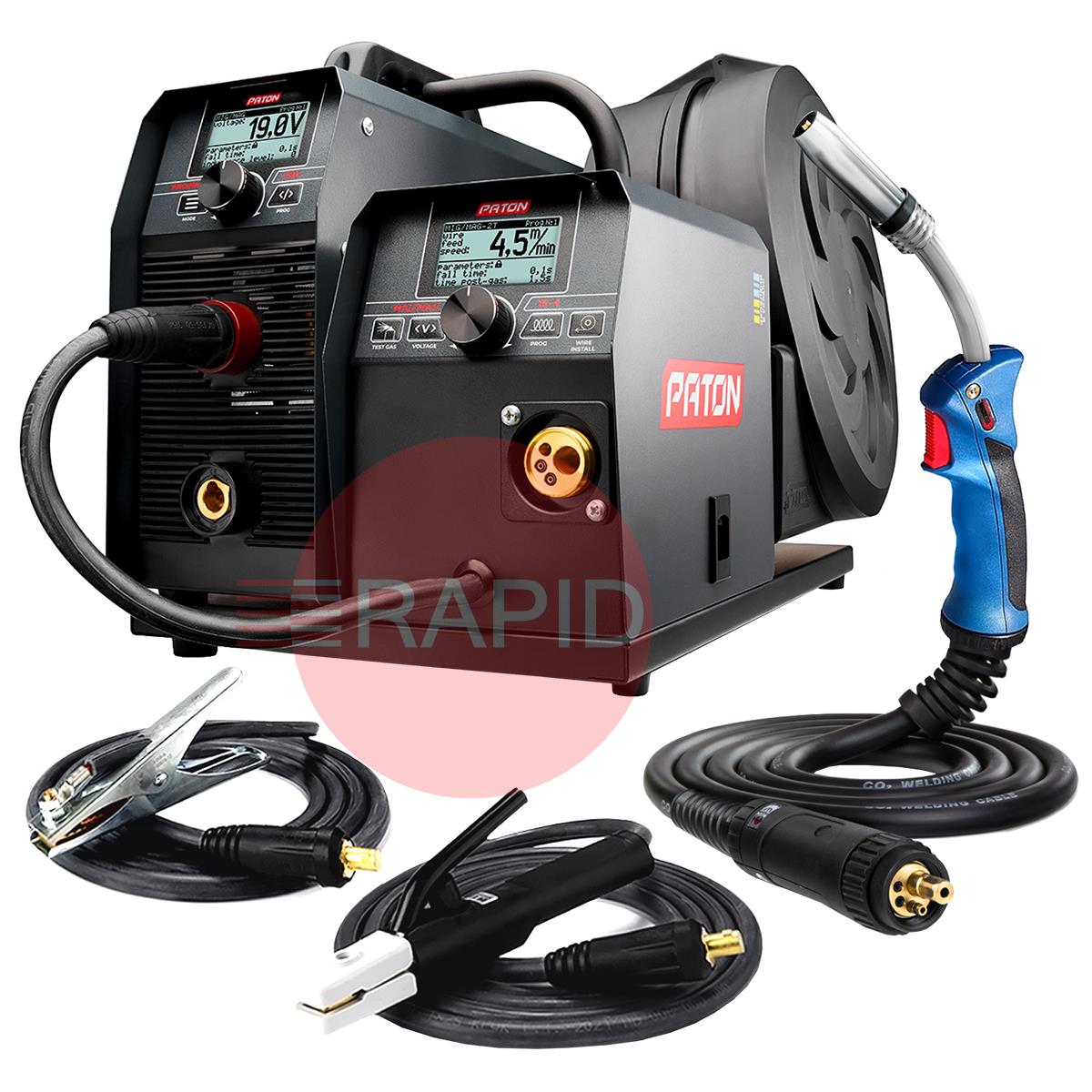

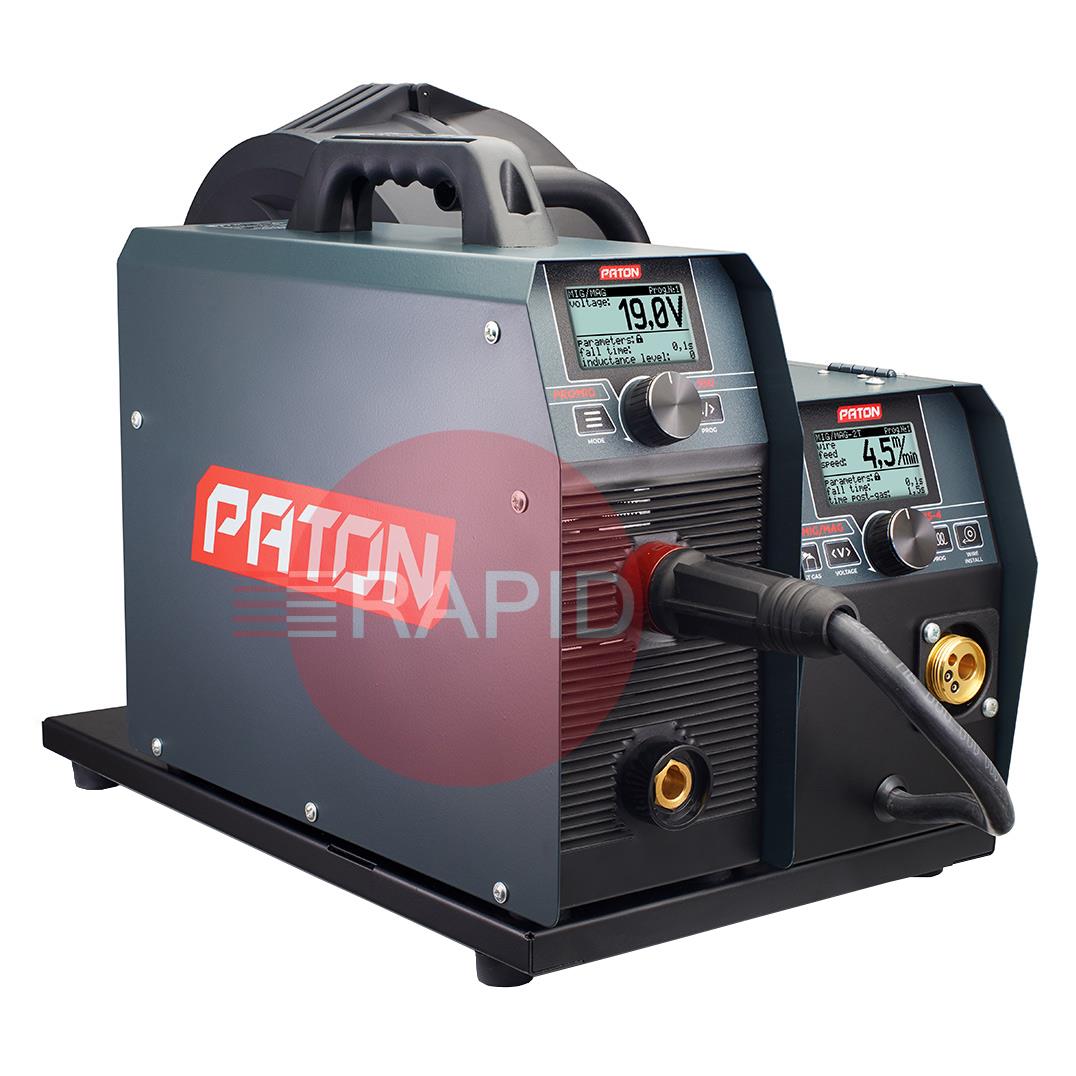

Digital semiautomatic inverter PATON ProMIG-350-15-4 W – is a device for professional use, designed for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG DC, in shielding gases and mixtures thereof. In ProMIG-350-15-4 W, the machine offers an all-digital control system, thereby ensuring its versatility and the ability to fine-tune welding conditions. Expectancy increased load on the rated current to 350A, allows any electrode diameter from 1.6 mm to 6 mm, and conducts semi-solid welding wire with a diameter of 0.6 to 1.4 mm.
PATON V-Groove Feed Roller Set of 4 – Solid Wire: 0.8 - 1.0mm (4 Roll Drive)
PATON U-Groove Feed Roller Set of 4 - Aluminium Wire: 0.8 - 1.0mm (4 Roll Drive)
PATON V-Groove Feed Roller Set of 4 – Solid Wire: 1.2 - 1.6mm (4 Roll Drive)
PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 25mm²
PATON Quick Gas Connector
PATON 3 Year Warranty
Straight answers to the questions people ask most when choosing a three-phase MIG welder for workshop and production use.
Three-phase machines suit fabrication shops, production lines, engineering workshops and anyone welding thicker material or for long periods. A three-phase supply carries more power for a given current per phase, so these machines can give higher output with a steadier load on the supply.If you only have a single-phase supply, you are limited to single-phase machines.
Yes, it needs a three-phase connection with the correct cable size and protection for the machine's input current, installed by a competent electrician. The manual states the recommended supply cable and fuse or breaker rating.Do not connect a machine to a circuit that has not been checked for the load. Poor supply causes tripping, overheating and unreliable welding.
Air-cooled torches are simpler and need no extra equipment, and suit many general jobs. Water-cooled torches carry higher current for longer without overheating, so they suit heavy, continuous or production welding, but they need a cooler and a little more upkeep.Choose according to the current and the duty cycle you will use.
Duty cycle is the proportion of a ten-minute period the machine can weld at a given current before it must cool. A higher duty cycle at your working current means fewer interruptions on long welds.If you weld continuously at high current, look at the rating at that current rather than the headline maximum.
