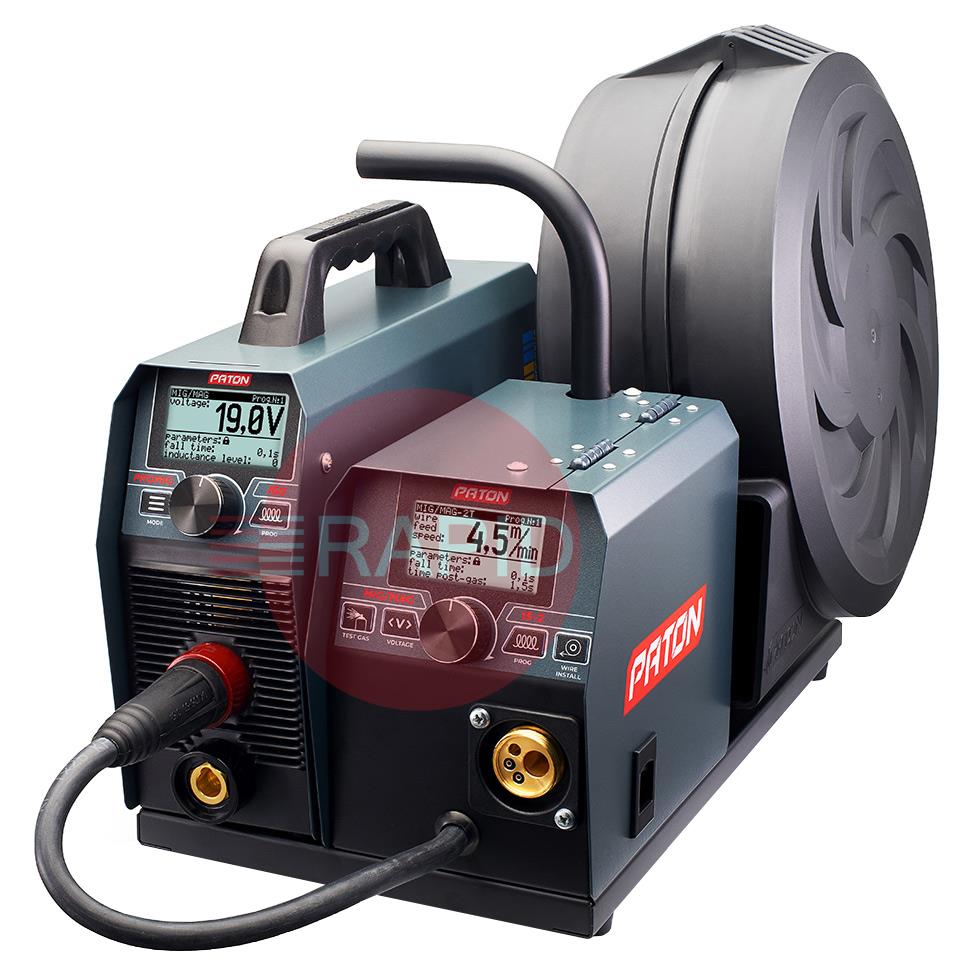

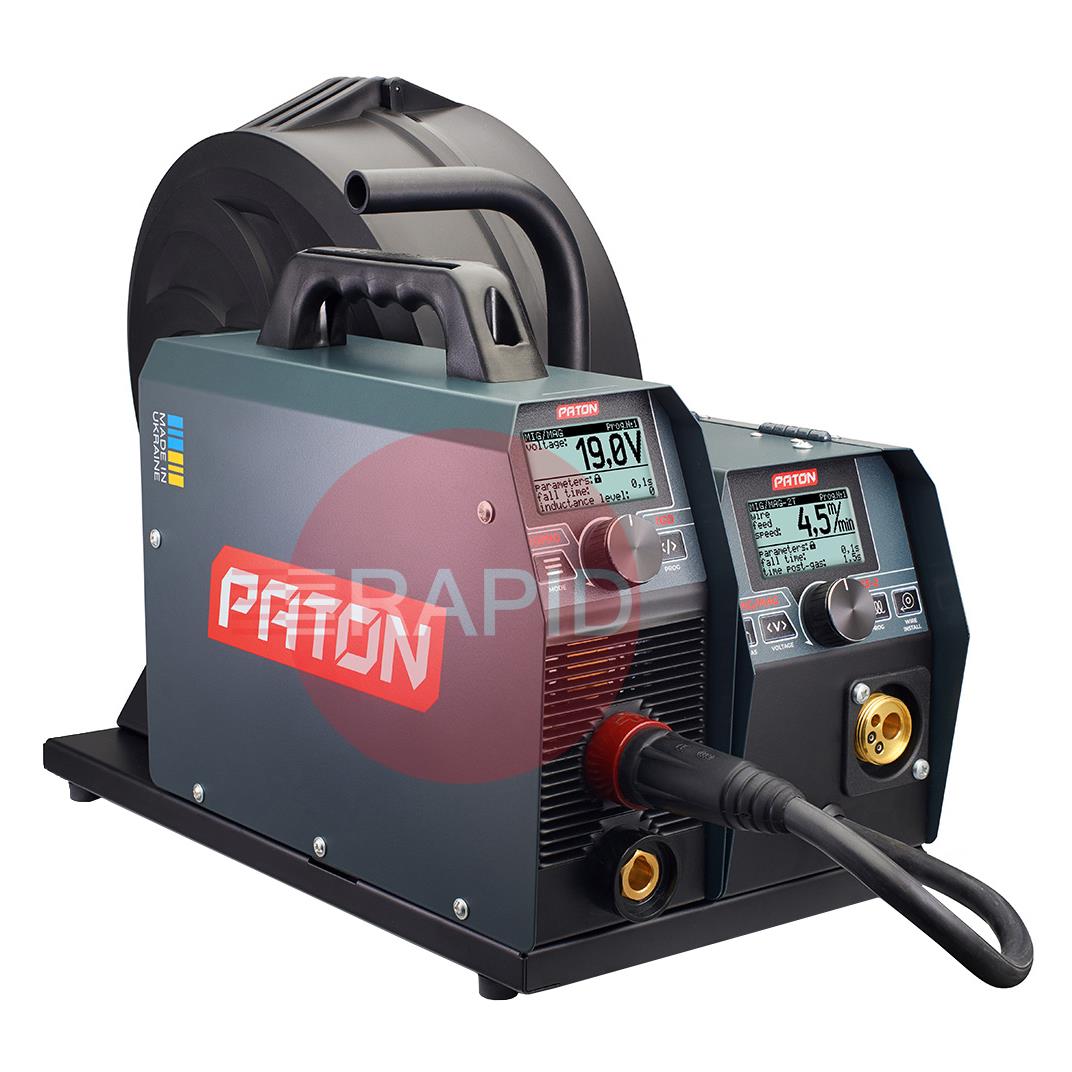

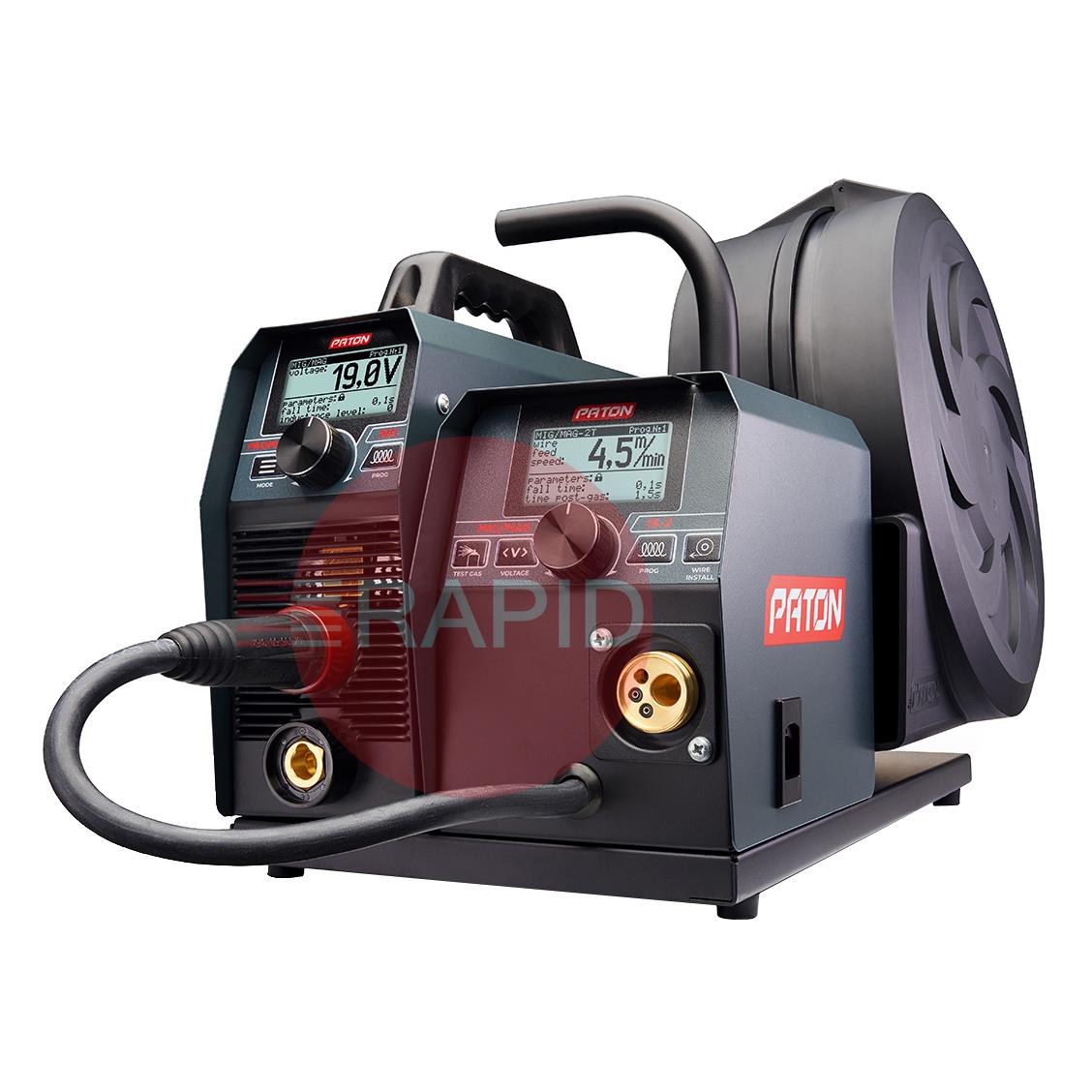

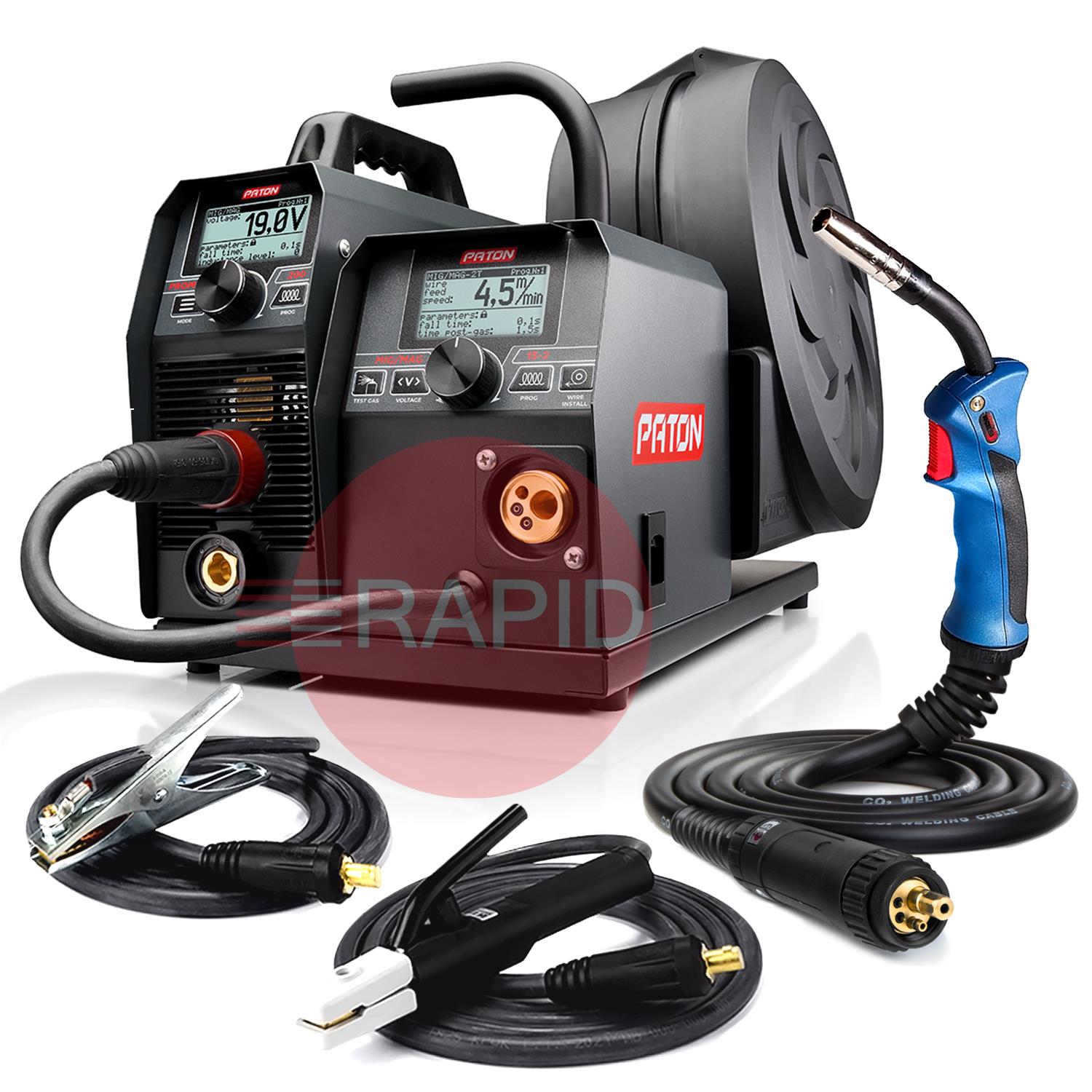

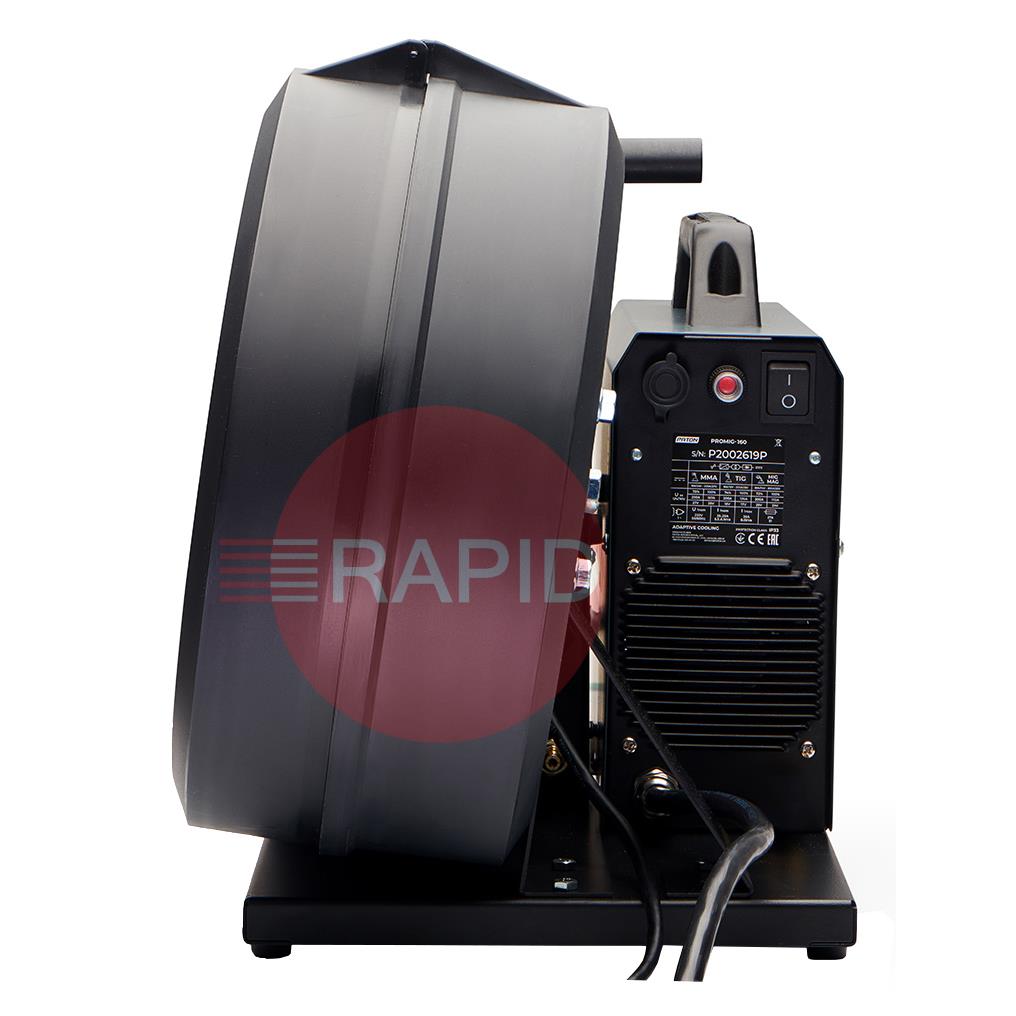

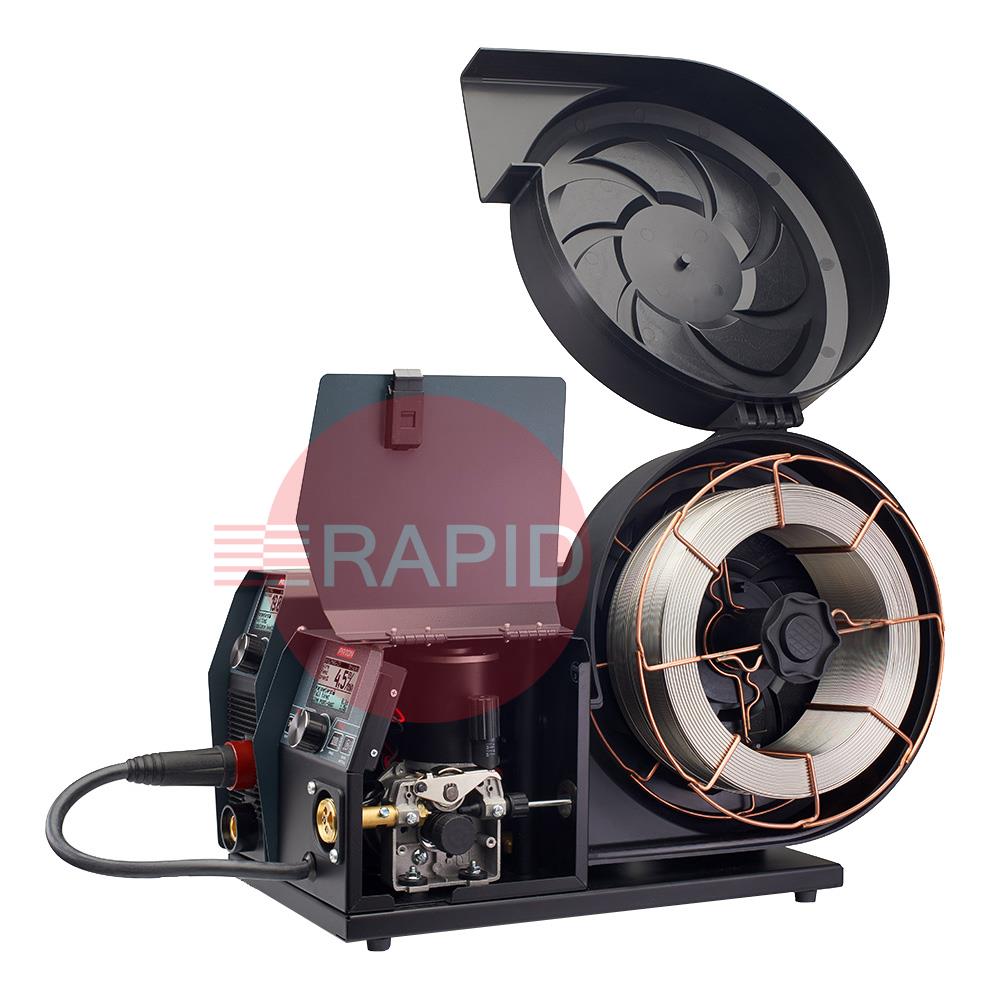

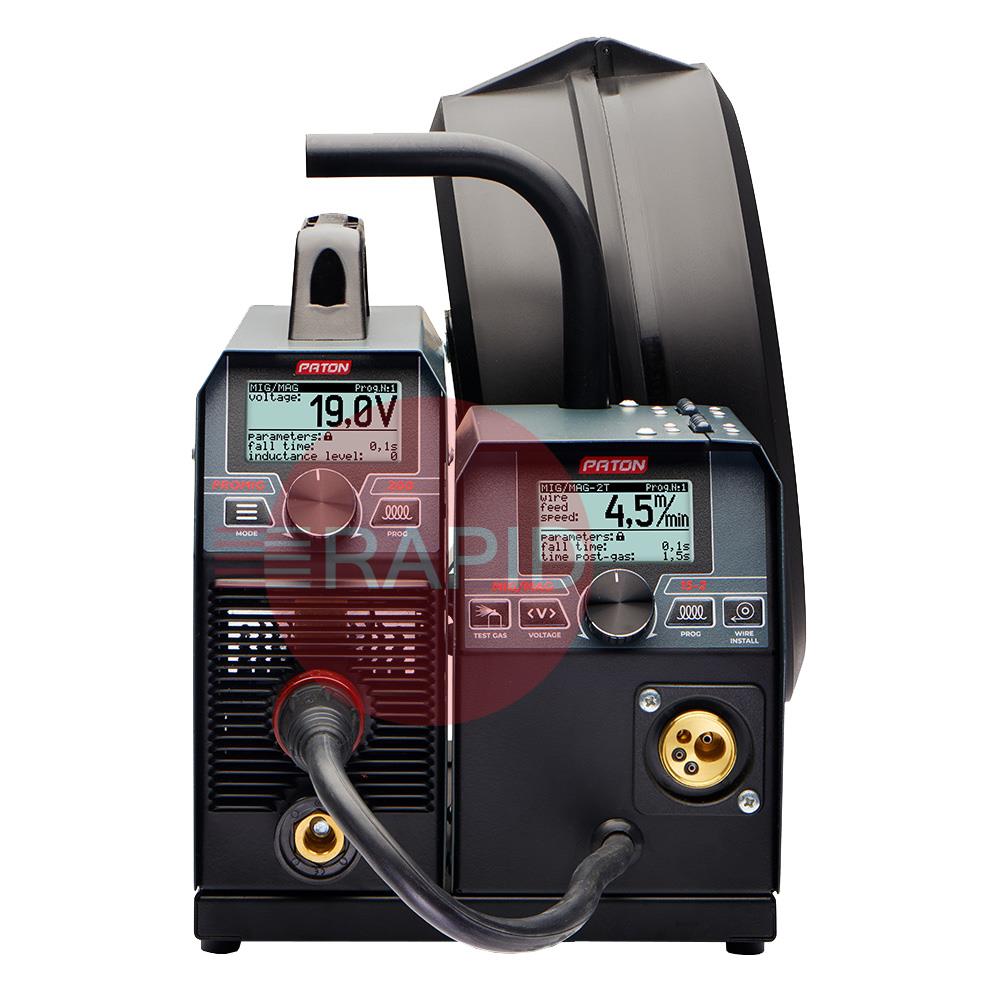

The Paton ProMIG 200 welder inverter is designed for semi-automatic MIG/MAG welding with shielded gases and protective mixtures, manual arc MMA welding and argon shielded TIG welding with direct current. These machines operate from a 230V single-phase power supply, have an IP33 protection class and a five-year warranty.
Binzel Abimig Grip A 155 LW 3 Meter Mig Torch (Air Cooled) 190A CO2, 170A Mixed Gas
PATON V-Groove Roller Set – Solid Wire: 0.6 / 0.8 & 1.0 / 1.2 mm
PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²
PATON Quick Gas Connector
PATON 5 Year Warranty
Straight answers to the questions people ask most when choosing a MIG welder that runs from a normal single-phase supply.
An inverter converts the supply electronically, which generally makes the machine lighter and smaller, and often gives finer control of the arc. A conventional (transformer) machine uses a heavy transformer, so it is bulkier, but it is simple and robust.How much current each type draws for a given output varies between machines, so compare the input current and weight on the data plate and in the manual. For portability and a limited supply an inverter is often the better choice, while some people prefer a transformer design for rugged, simple workshop use.
Some smaller machines can, but many need a dedicated circuit with suitable protection, and some larger single-phase machines need a heavier supply than a normal domestic socket gives. Check the machine's input current and the supply and fuse or breaker rating it requires.Have a qualified electrician check the supply if you are unsure. Running a machine beyond what the circuit can supply causes tripping and can be dangerous.
It depends on the machine's output and the process. Smaller machines suit thin sheet and light fabrication, while larger single-phase units cope with thicker plate, especially with good joint preparation and multiple passes.Check the maker's stated capacity rather than relying only on the headline current, and remember that duty cycle limits how long you can weld at the top of the range.
Duty cycle is the proportion of a ten-minute period a machine can weld at a given current before it must cool. Machines usually have a much higher duty cycle at lower current.If you weld for long periods at high current, choose a machine with a suitable rating. If the machine overheats, a thermal cut-out stops it until it cools.
