Rapid Ref : 1012020013

PATON ECO-200-C Inverter 200A Arc Welder Suitcase Package - 230v, 1ph
1012020013

Click here to see what's included
£214.17  EX VAT
SSP Suggested Selling Price = £345.00  YOU SAVE £130.83
 Buy in 3 easy interest free payments of £71.39† with
Additional items to consider
Select Model Required
ESAB Swarm A20 Helmet 9 - 13 x1 £55.02
Kemppi S1030 Welding Helmet 9-13 x1 £40.04
ESAB Savage A41 Welding Helmet 8-13 x1 £89.00
Select Style Required
Ultima S6 Red/Gold Premium Gauntlet x1 £5.76
Panther Pro Welding Gauntlet x1 £9.75
Spiderhand MIG Supreme MIG Welding Gloves x1 £18.75
Kemppi Craft MIG Model 6 Welding Gloves x1 £21.12
Select Welding Rods
ESAB GoldRox E6013 Electrodes 2.5mm 2.5kg x1 £19.12
ESAB GoldRox E6013 Electrodes 3.2mm 2.3kg x1 £15.72
ESAB GoldRox E6013 Electrodes 4.0mm 2.4kg x1 £16.24

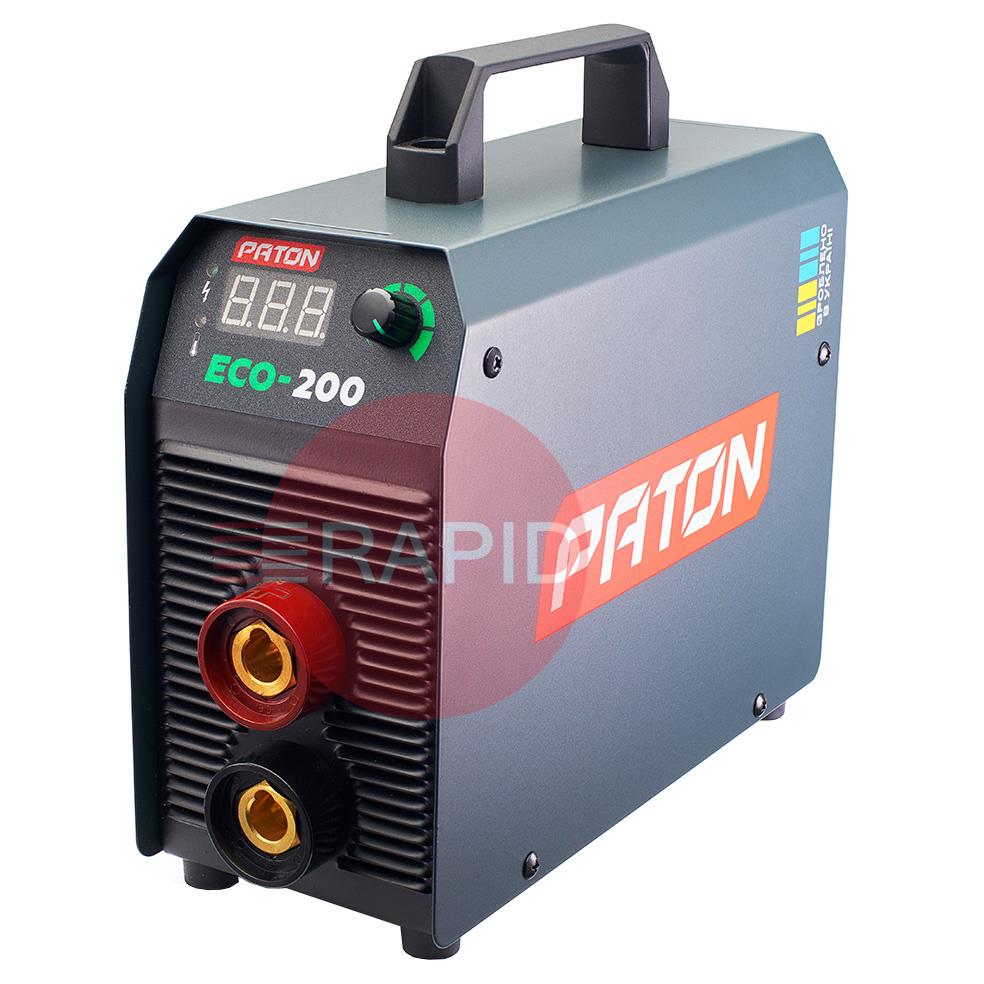

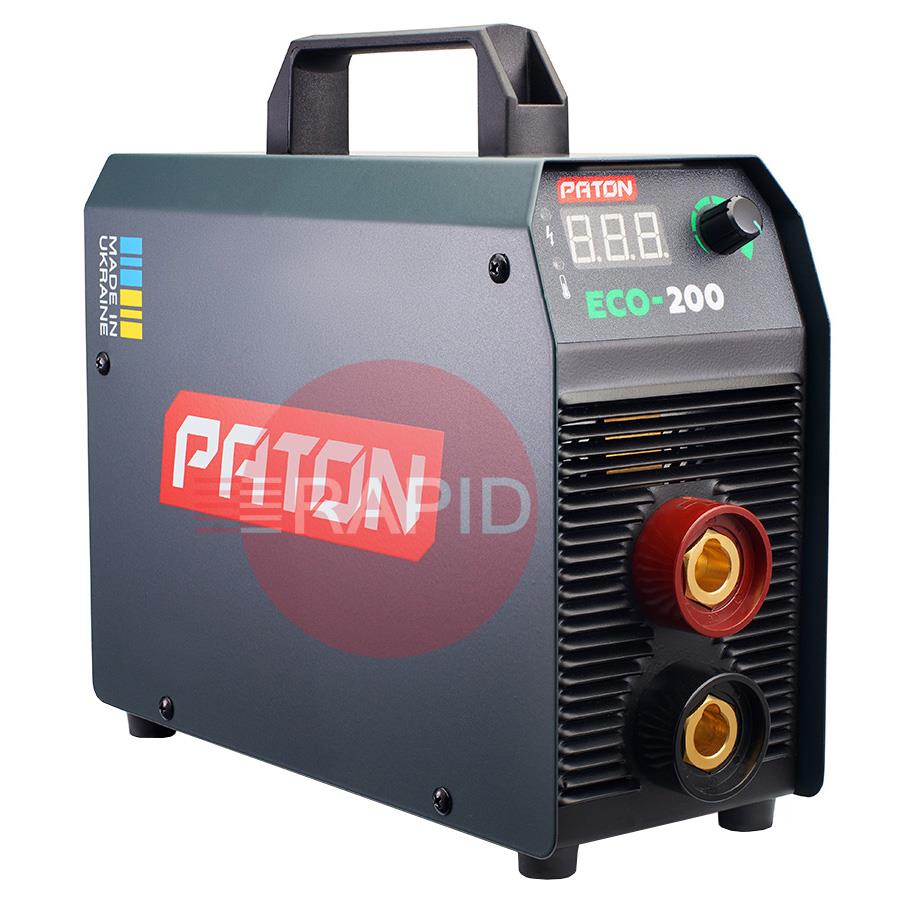

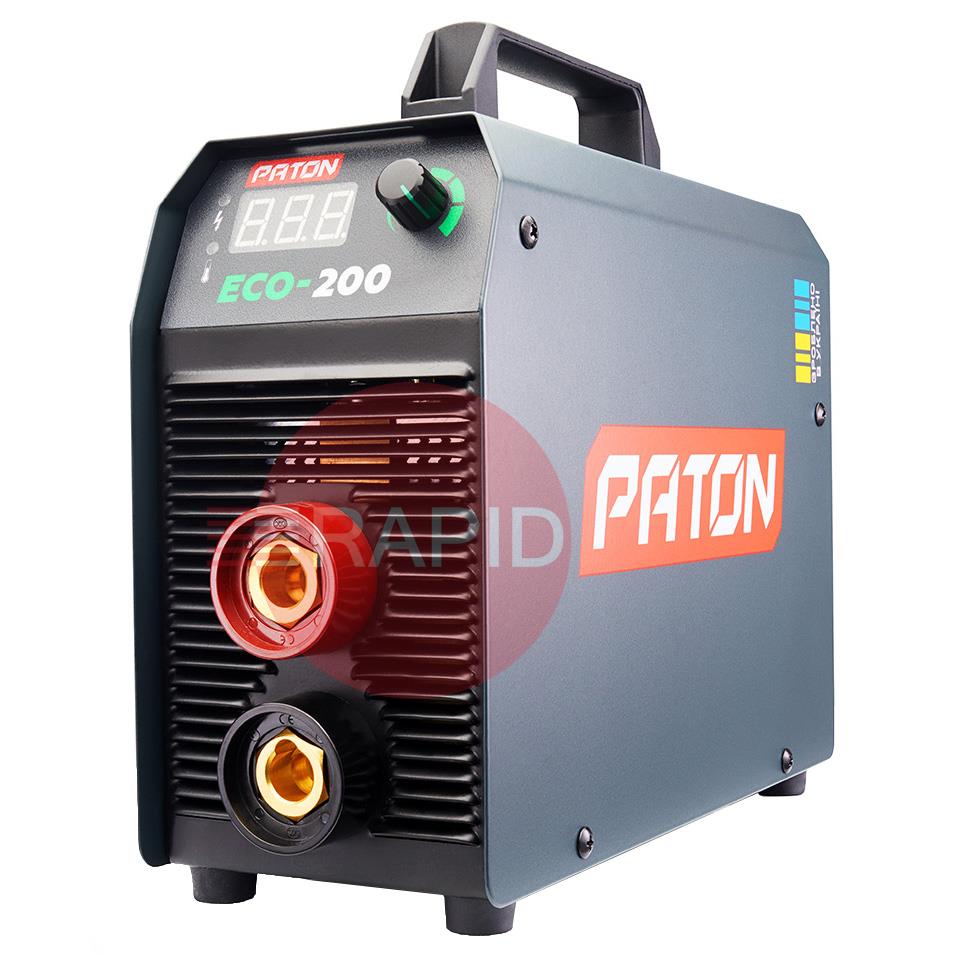

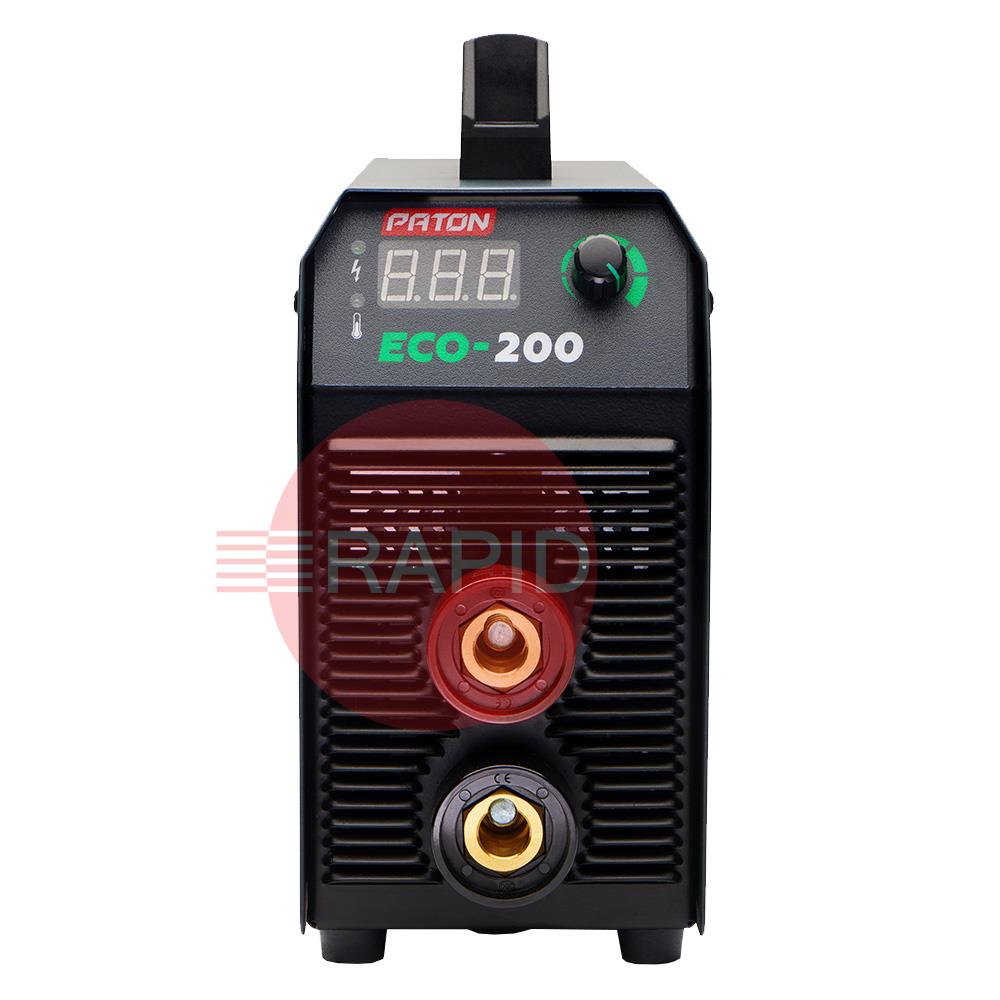

The PATON ECO-200-C is a compact 200A arc welder, perfect for field work and household conditions. The device's small size makes it very mobile. The PATON ECO-200-C welder has a work stabilisation system installed, allowing it to be powered by a generator. The 200A output allows the use of electrodes with diameters from 1.6mm to 5.0mm. The ECO-200-C features a 40% duty cycle and a 5-year warranty.

All machines supplied by Rapid Welding are load tested, have a gas hose with 3.8" fittings supplied and a UK plug adaptor included.

  • Powerful Output in a Compact Package: Weld with confidence — the ECO 200-C delivers up to 200A of steady, reliable power for MMA (Stick) welding. For electrode diameters 1.6mm up to 5.0mm
  • Lightweight & Portable: Weighs just 4 kg – ideal for site work, garages, and hard-to-reach spots
  • Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
  • Generator Ready: Possibility to work on long extension cables as well as with a generator
  • Hot-Start, Arc-Force and Anti-Force functions
  • 5-Year Warranty

Product Details

The PATON ECO-200-C MMA stick welder is designed for manual MMA arc welding with direct current. ECO series is dedicated for home users who require a functional device with a nominal current of 200A. This is sufficient to work with any electrode from 1.6mm to 5mm, including low-fusing electrodes. The duty cycle is at least 40%, which enables most tasks to be carried out on a semi-industrial scale, and it works perfectly in the household sector.

Specification

Mains Voltage: 230V
Welding Current Range: 25 - 200A
Duty Cycle: 200A at 40%, 126A at 100%
Maximum Power Consumption: 6.9kVA
Open Circuit Voltage: 80V
Dimensions (L x W x H): 270mm x 110mm x 270mm
Weight: 4kg
Protection Class: IP33

Perfect For

  • Household & DIY Use
  • Field Work
  • Small Workshops

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   PATON MINI-C ECO MMA User Manual

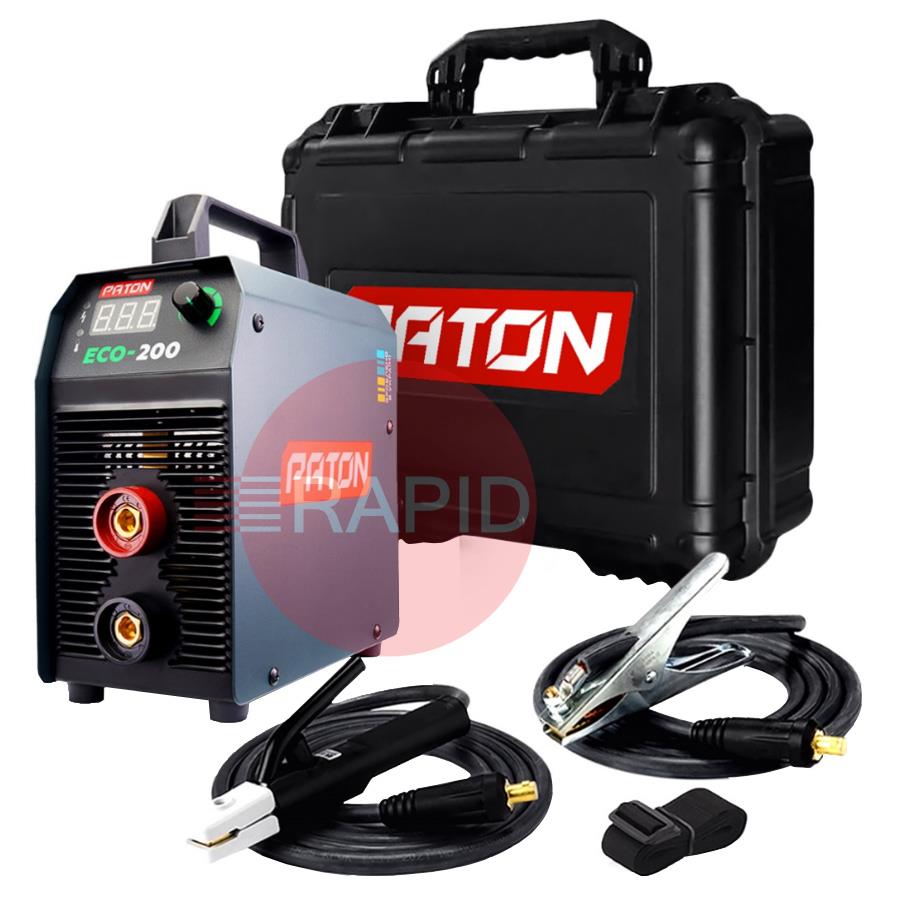

What's Included

PATON-CASE PATON Carry Case

PATON Carry Case

PATON-SSTRAP PATON Shoulder Strap

PATON Shoulder Strap
PTN-MMA16CBL PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

PATON MMA Cable Kit, 3m Electrode Lead with 3m Earth Return, 16mm²

WARRANTYP5 PATON 5 Year Warranty

PATON 5 Year Warranty

Warranty and Support

  • 5 Year Warranty
  • UK based service centre and support hotline
  • Access to spare parts and calibration service

Whether you're welding at home, in the field, or on the job site, the PATON ECO-200-C Arc Welder gives you the power, precision, and portability you need, without the bulk.

230v Arc Welders FAQs

Straight answers to the questions people ask most when choosing and using a 230 volt single phase arc welder.

Why choose a 230 volt arc welder?icon-minus-redicon-plus-red

A 230 volt single phase welder plugs into the ordinary mains supply found in most workshops, garages and homes, so there is no need for a three phase installation. Modern inverter designs draw modest current for the welding power they produce.

They suit repair work, fabrication, maintenance and light industrial use, and they are popular both with trade users and with serious hobbyists.

Does the plug and fuse on my supply matter?icon-minus-redicon-plus-red

Yes. The welder draws more current at its maximum setting than a typical household appliance. Check its input current on the data plate and make sure the plug, socket, cable and circuit protection are rated for it.

A socket circuit that is too small will trip, overheat or give a weak arc. Some machines are supplied with a particular plug rating. Have a qualified electrician check or upgrade the supply if you are unsure.

How do I choose the right output current?icon-minus-redicon-plus-red

Think about the thickest metal and the largest electrode you expect to use regularly, then choose a machine that provides that current comfortably within its duty cycle, not at its limit.

A machine with some spare capacity runs cooler and lasts longer. As a rough guide, small portable units handle light fabrication and repairs, and larger single phase machines cope with thicker steel and bigger electrodes, but exact limits vary between models.

Can I run a 230 volt welder from a generator?icon-minus-redicon-plus-red

Sometimes, but not every welder suits every generator. The generator must supply the welder's input current continuously, with a margin, and give a clean, stable voltage. A generator that is too small or poor quality can cause cut-outs, an unstable arc and damage to the welder's electronics.

Size the generator from the welder's input power, not its welding output, and check the welder's manual and data plate for any generator guidance. If the manual does not say the machine is suitable for generator use, ask the maker before connecting it.
