Rapid Ref : 0705002009

ESAB Rogue ES 201iP PRO Ready To Weld Package with 3m MMA Cable Set - 115v / 230v
0705002009

Name: ESAB Rogue ES 201iP PRO Ready To Weld Package with 3m MMA Cable Set - 115v / 230v
SKU: 0705002009
Price: 489.00 GBP

£489.00 EX VAT

SSP Suggested Selling Price = £772.19 YOU SAVE £283.19

Buy in 3 easy interest free payments of £163.00^† with

Additional items to consider

*Included: power source with 3m mains cable, shoulder strap, electrode holder and 3m return cable and clamps.*

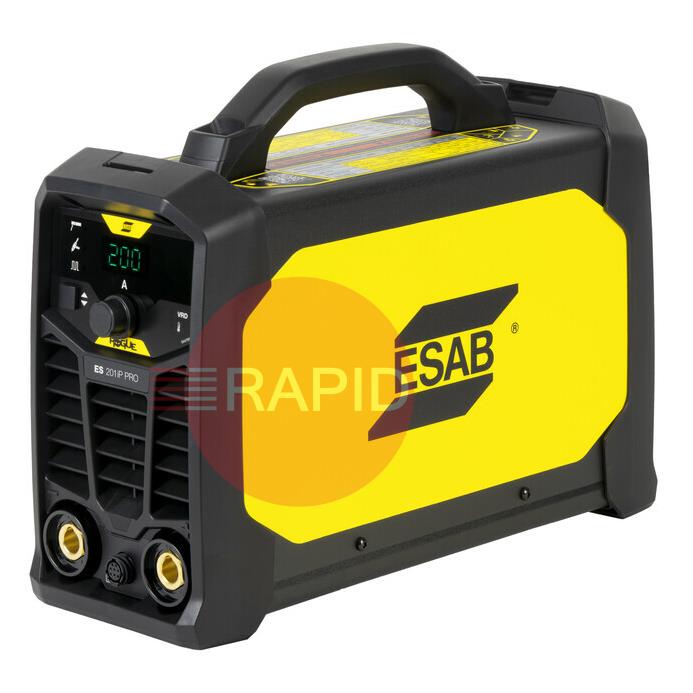

The Rogue ES is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through the use of the latest high-performance power electronics and Digital control; ensuring a precise consistent arc.

The Rogue ES provide a smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non-alloyed steel, stainless steel, and cast iron. Featuring adjustable Arc Force and Hot Start settings for more control over your arc. Digital microprocessor offers more control over all arc parameters and provides best-in-class welding performance. The Rogue ES 201iP PRO can be used with electrodes up to 4.0 mm.

New Pulse MMA functionality enhances the performance and improves the heat input control, to minimise thin gauge materials distortion, facilitate out-of-position welding with no undercuts and reduce spatter, thus helping to effectively avoid several welding defects.

Rogue ES can TIG weld mild-steel or stainless steel via "LIVE TIG“ functionality for even more versatility.

Product Details

Break The Rules. Go Rogue.

Rogue breaks all the rules, giving entry-level welders premium accessories and everything you need to start welding, right out of the box. In fact, Rogue's power stacks up against machines twice its price. Rogue's new MMA Pulse functionality provides users with improved control, enhanced penetration, reduced spatter, and increased welding speed. Power Factor Control (PFC) technology enables a highly efficient, steady arc that is resistant to power fluctuations. Break away from convention with Rogue.

More Control with MMA Pulse

Rogue's Pulse feature provides welders with enhanced control over heat input and arc stability. The controlled pulsing action helps create a stable arc, preventing excessive spatter and minimising the risk of weld defects or the need for post-weld clean-up. Rogue's Pulse waveform enhances penetration and fusion during welding, which is crucial for creating strong, durable weld joints and ensuring the structural integrity of fabricated components. Pulse technology helps in minimising the heat-affected zone, reducing the likelihood of material distortion or unforeseen metallurgical changes.

A Portable Workhorse.

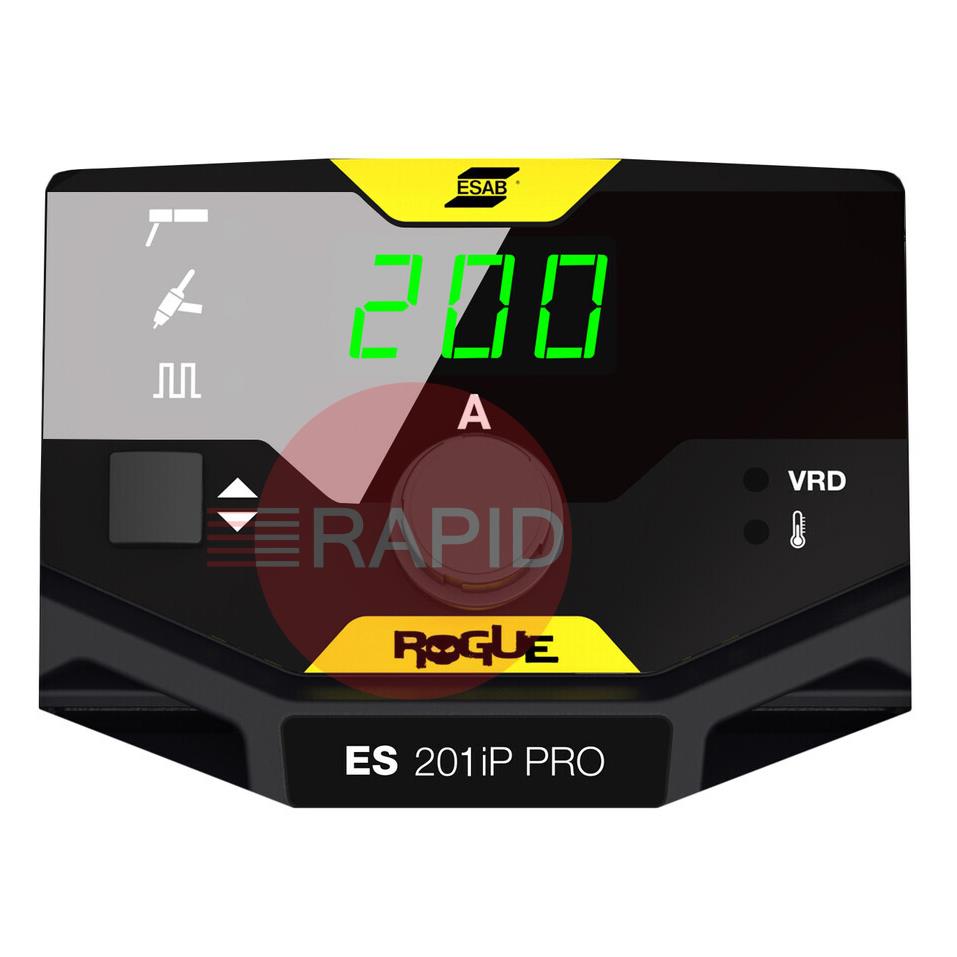

No matter what you are working, Rogue’s compact and lightweight design makes it easy to carry from job to job with sturdy handles and a shoulder strap. It comes with a large digital display that can be easily read from up to 25 metres away, and the optional remote control lets you adjust current settings without going back to the machine. Thanks to stable arc performance and weather-resistant housing, you can use long extension cables to work in even the most remote locations, all without affecting process stability and weld quality.

Pulse with Impact

Pulse MMA and TIG welding are versatile techniques suitable for a wide range of materials, including stainless steel, carbon steel, as well as non-ferrous metals' alloys. This versatility makes these welding methods suitable for diverse industries, from automotive manufacturing to aerospace, providing welders with flexibility. The benefits of using Rouge's new MMA Pulse functionality extend across applications, enabling easier gap bridging and improved penetration in root-pass processes, resulting in stronger welds. This reduces undercuts in vertical welding, provides better weld-puddle control in overhead welding to better keep material in place, and reduces burnthrough and material distortion with thin-gauge materials.

Brochures & Manuals

BROCHURES & MANUALS

View Brochure

ESAB Rogue ES 181iP PRO / 201iP PRO Instruction Manual

110v Arc Welders FAQs

Straight answers to the questions people ask most when choosing and using a 110 volt arc welder.

Why are 110 volt arc welders used on sites?

On many construction and industrial sites, portable electrical equipment is required to run from a reduced 110 volt supply, because it lowers the risk of a serious shock if a cable or tool is damaged. A welder that runs from 110 volts can be connected to the site supply or to a suitable generator.

Check your site rules, because requirements vary, and follow the instructions of the person in charge of site electrical safety.

How much welding power can I get from a 110 volt supply?

A 110 volt supply limits the current the welder can draw, so the maximum welding output is lower than on a 230 volt supply. In practice this means 110 volt machines are suited to smaller electrodes and lighter to medium work rather than heavy, thick-section welding.

Many dual voltage machines give less output on 110 volts than they do on 230 volts. Check the maker's output figures at the voltage you will actually use, not just the headline rating.

What supply and plug does a 110 volt arc welder need?

Site 110 volt equipment normally uses a yellow industrial plug and socket, usually at a particular current rating. The supply must be able to provide the current the welder draws, and the plug and cable must be rated for it.

A welder drawing more current than the supply or plug is rated for will trip protective devices or overheat the cable. Check the current draw on the welder's data plate and make sure the supply, transformer or generator can provide it.

Can I run a 110 volt welder from a site transformer or generator?

Often yes, but the transformer or generator must be big enough for the current the welder draws, with enough capacity left for other equipment connected at the same time. An undersized supply makes the arc unstable and can cause cut-outs.

For generators, check the output rating covers the welder's input requirement, and ask whether the generator suits inverter equipment. Follow the generator and welder manufacturers' guidance and any site rules.

See all 6 questions for this category
