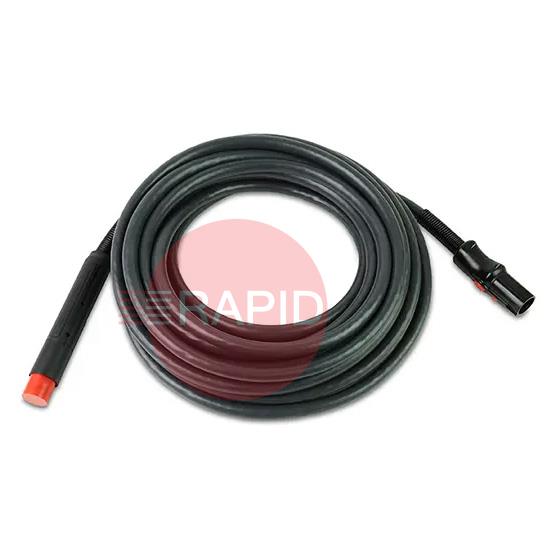

Practical answers on fitting, setting up and looking after a plasma machine torch on a cutting table, positioner or automated system.
They are two separate settings. Cut height (standoff) is the distance between the torch tip and the plate while cutting. Pierce height is the higher setting used to start the hole, so molten metal blown back from the pierce does not land on the nozzle and shield.A common rule of thumb is to pierce at roughly one and a half to two times the cut height. Piercing too low is a leading cause of early consumable and torch damage, while piercing too high can stop the arc transferring to the plate. Take the exact values from the cut chart for your consumables, material and current.
Arc voltage rises as the torch moves away from the plate and falls as it gets closer. A torch height control reads that voltage while cutting, compares it with a target set from the cut chart, and raises or lowers the torch to hold the distance steady. This lets the torch follow warped or uneven plate.The voltage reading also shifts as the electrode and nozzle wear, so a worn set can leave the torch sitting at the wrong height. If cut quality drifts, check the consumables and the actual cut height as well as the voltage setting.
Yes. Moisture, oil and dirt in the air supply shorten consumable life, reduce cut quality and can harm the torch and the power supply. Condensation can form in long pipe runs, and oil from other lubricated air tools on the same line can travel back into the supply.A moisture and particle filter close to the plasma power supply's air inlet is commonly recommended on top of the workshop's own air treatment. Drain and service filters regularly, and follow the manufacturer's air quality requirements in the manual. Sudden drops in consumable life are often an air supply problem.
Look at how the parts have worn rather than changing them after a fixed number of hours. Replace the nozzle if the orifice is gouged, oversized or out of round, and replace the electrode when the pit in the insert has become too deep. Falling cut quality, more dross or a changing bevel are your cue to inspect.Running parts until they fail can ruin the plate and damage the torch itself. Keep a note of arc-on time or number of starts for a typical set so you can plan changes, and replace the electrode and nozzle together where the maker advises.
