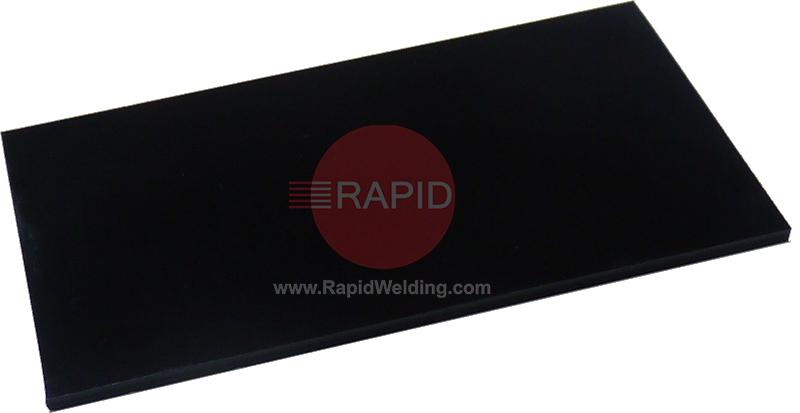

Lens dimensions: 60mm x 110mm.
Answers to common questions about welding helmet filter lenses and cover lenses, from shade numbers to fit and fogging.
The shade number tells you how dark the filter is. The higher the number, the darker the lens and the less light passes through it. Low numbers are used for lighter tasks such as gas welding and brazing, while higher numbers are used for arc welding and arc cutting.The number alone is not the whole story. The right shade depends on the process, the current and how bright the arc is, so always check the shade chart that comes with your helmet or filter, or ask our team to help you choose.
The filter lens is the dark lens that actually protects your eyes from the arc. A cover lens is a clear, replaceable plate fitted in front of it (and sometimes behind it) to take the spatter, scratches and grime so the filter stays in good condition.Cover lenses are not a substitute for a filter and are not dark. They are normally the part you replace most often, and they should be changed when they are scratched, pitted or hazy enough to hamper your view.
These processes use much lighter filters than arc welding. Gas welding, brazing and flame cutting use the lighter end of the shade scale, with the shade rising with the size of the flame or the oxygen flow, while arc welding and arc cutting use darker filters that rise with the current.Use the shade given in the maker's chart or the welding filter standard for your task and flame size. Shade charts often allow the next lighter or darker shade within the recommended range if the conditions call for it, but do not go lighter just to see better.
The shade depends mainly on the process, the welding current and the brightness of the arc. Higher current and brighter processes need a darker lens, and the recommended shade range is set out in the shade charts supplied with filters and in the relevant standard.Start from the maker's chart for your process and amperage rather than guessing. If you wear a helmet with a variable shade lens, set it within the range for your work. A lens that is too light is a risk to your eyes, so do not go lighter than the recommended range just to see better. Better lighting can help instead.
