W000278885 Lincoln WTT2 26V Gas Valve TIG Torch - 4m with 13mm Connection
  • W000278885 Lincoln WTT2 26V Gas Valve TIG Torch - 4m with 13mm Connection
  • W000278885 Lincoln WTT2 26V Gas Valve TIG Torch - 4m with 13mm Connection
  • W000278885 Lincoln WTT2 26V Gas Valve TIG Torch - 4m with 13mm Connection
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : W000278885

Lincoln WTT2 26V Gas Valve TIG Torch - 4m with 13mm Connection
W000278885

£124.24  EX VAT
SSP Suggested Selling Price = £155.28  YOU SAVE £31.04
 Buy in 3 easy interest free payments of £41.41† with

Lincoln WTT2 TIG Torches

Lincoln introduces the WTT2 range, the latest of their standard TIG torch line. These models were designed to provide better performances for welders of every kind. The WTT2 series can become suitable solutions for various welding applications in many different workshops. The WTT2 range is available in air-cooled and water-cooled versions.

The modernised design combined with the high-quality components creates one of the best welding process efficiency and the welder's comfort. These torches are built and manufactured according to high standards, built with the welder's needs in mind. Their expendables are compatible and made to fit with international standard models.

Customers will be able to witness the following benefits;

  • High reliability of welding applications
  • Easy usage of pivoting handle

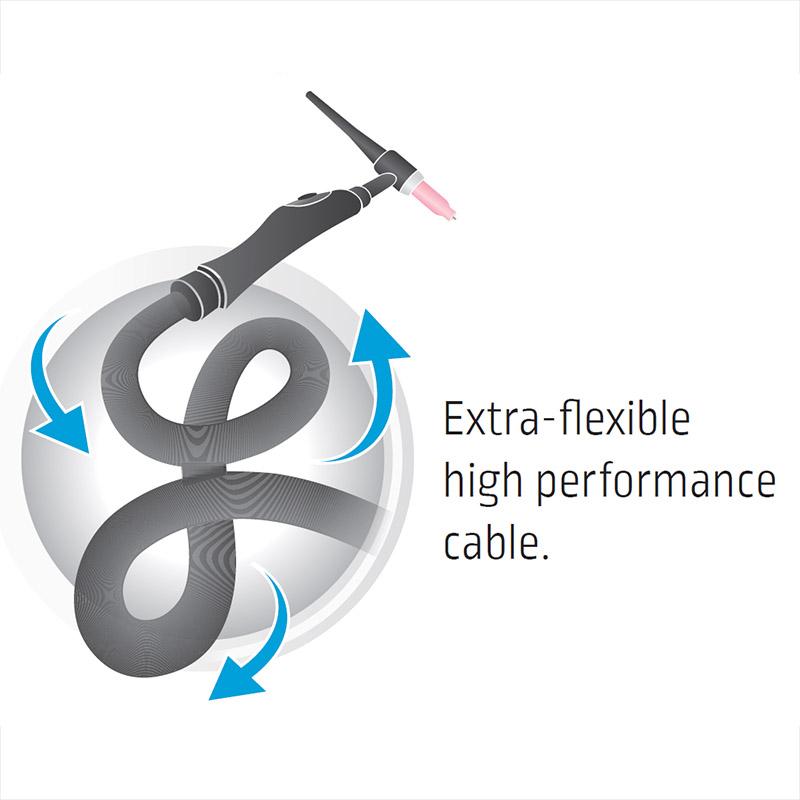

  • High flexible cable, designed for the tightest of workspaces
  • Versatility and manoeuvrability
  • Excellent grip for welding comfort

Product Details

Torch specifications

  • Model: WTT2 26
  • Version: Air-cooled
  • Duty cycle at 40°C - 60%: 130A
  • Duty cycle at 40°C - 35%: 180A
  • Back cap: Long
  • Nozzle: Ø 12.8mm
  • Electrode: Ø 2.4mm
  • Length of cable: 4m
  • Handle: V
  • Connection: V (Conn. 13mm)

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure

Related Items

TIG Torch FAQs

Straight answers to the questions people ask most when choosing and looking after a TIG torch.

Do I need an air-cooled or a water-cooled TIG torch?icon-minus-redicon-plus-red

Air-cooled (also called gas-cooled) torches are lighter, simpler and cheaper, because the shielding gas flowing through them does the cooling. They suit lower currents and shorter welds. Water-cooled torches have a coolant circuit and stay cooler at higher currents, so they are the choice for thicker material and long, continuous welding, but they need a water cooler and extra hoses.

If you mostly weld thin to medium material in short runs, air-cooled is normally enough.

Which tungsten electrode should I use?icon-minus-redicon-plus-red

For most work on steel and stainless steel with DC, a ceriated or lanthanated tungsten is a good all-round choice: it starts easily, lasts well and holds its shape. For aluminium with AC, zirconiated or pure tungsten is the traditional choice because it forms a small rounded tip, although many modern machines also work well with other types.

The colour band on the electrode shows its type, but colour codes differ between makers, so check the packaging. Thoriated tungsten is still seen, but it is mildly radioactive, which is why many welders now choose other types.

What does the cup number mean, and which size do I need?icon-minus-redicon-plus-red

The number on a TIG cup (nozzle) is the size of its opening in sixteenths of an inch, so a larger number means a wider cup. The cup must be wide enough to cover the weld pool with shielding gas, but not so wide that you waste gas or can't see or reach the joint.

Larger tungstens and higher currents generally need a larger cup, and a gas lens allows good coverage with a smaller cup. Ceramic (alumina) cups are the usual choice, and clear glass cups let you see the weld better.

What is a gas lens and is it worth having?icon-minus-redicon-plus-red

A gas lens is a fine mesh in the torch that smooths the shielding gas so it leaves the cup as a steady column rather than a turbulent stream. That gives better protection, so you can often use less gas, and it lets the tungsten stick out further for a better view and for reaching into awkward joints.

It is a worthwhile upgrade for stainless steel, aluminium and any joint where you need extra reach.

See all 6 questions for this category
