Rapid Ref : SGTX04HD01

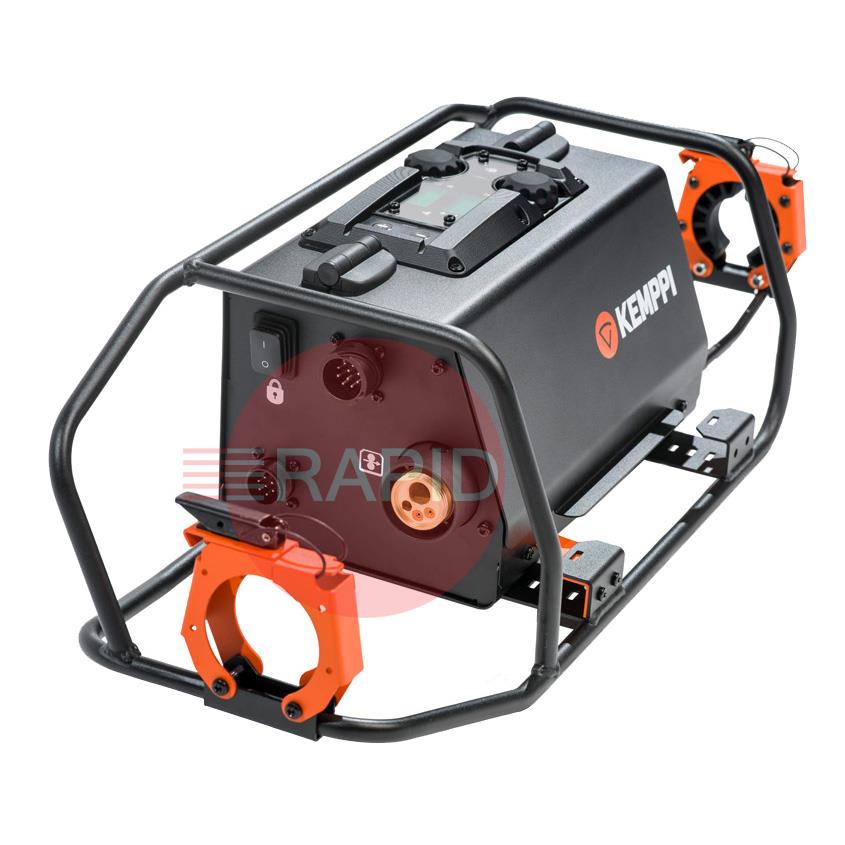

Kemppi SuperSnake GTX04HD Motor Drive Unit & Frame (Subfeeder Only)
SGTX04HD01

Name: Kemppi SuperSnake GTX04HD Motor Drive Unit & Frame (Subfeeder Only)
SKU: SGTX04HD01
Price: 1886.00 GBP

£1886.00 EX VAT

SSP Suggested Selling Price = £2218.48 YOU SAVE £332.48

Buy in 3 easy interest free payments of £628.67^† with

Shop Parts

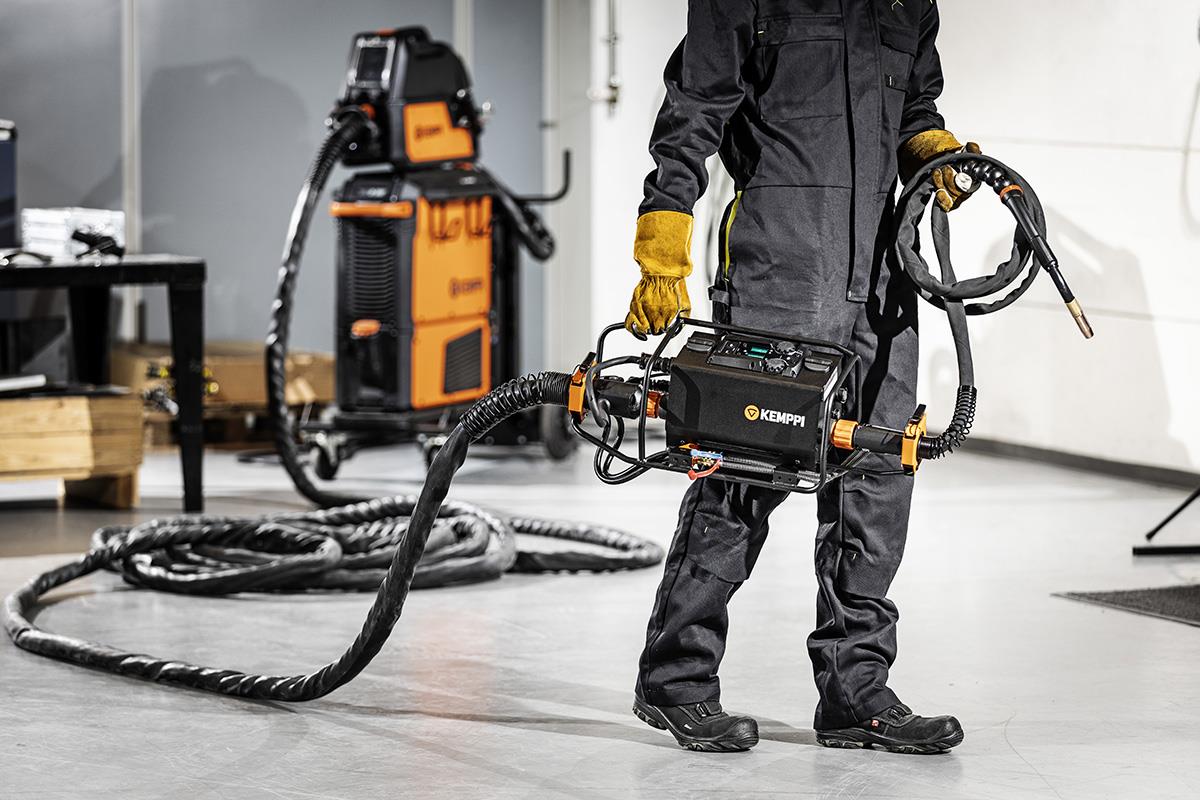

The SuperSnake GTX04HD is the ultimate predator of the welding world, negotiating its terrain with ease. Traditional wire feeding systems are large and heavy and motor pistols and spool gun options increase weight and strain on the operator’s wrist. In addition, they are limited by their reach, filler wire size options, or volume welding capability.

The SuperSnake GTX04HD liberates your welding team with a combined feeding distance of up to 30m, bringing quality welding to locations other welding brands can’t reach. The SuperSnake GTX04HD is suitable for X5 FastMig and Master M 350 machines.

Welding distance up to 30 metres
Easy to grab, move, and carry
Strong metal construction, cable and gun clamps, plus LED wire line light

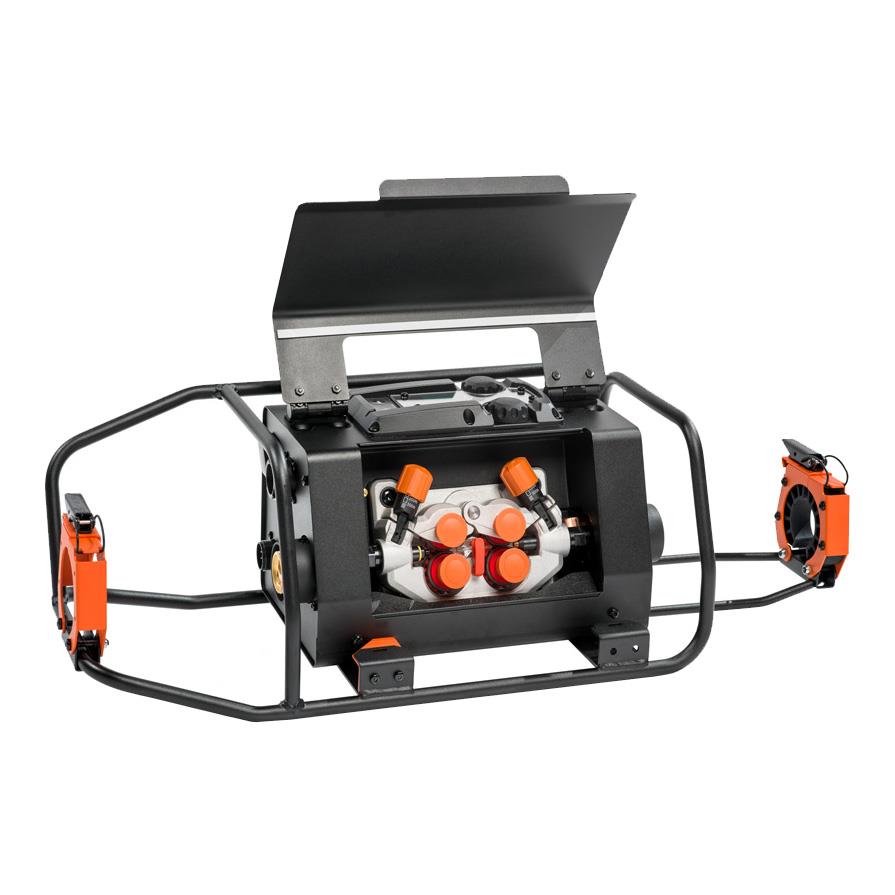

Reliable 4x4 wire drive mechanics
Water hose clamps for fast and easy connection

Please Note - this feeder is not supplied with a feed roll kit. Please select the kit you require below in the related items.

Brochures & Manuals

BROCHURES & MANUALS

View Brochure

Kemppi SuperSnake GTX04HD Declaration of Conformity

Kemppi SuperSnake GTX04HD Operating Manual

X5 FastMig FAQs

Straight answers to the questions people ask most when choosing and using modular industrial MIG/MAG welders and their subfeeders.

What is a modular industrial MIG welder?

A modular industrial MIG welder is built from separate parts: a power source, a wire feeder, a torch, and optional items such as a cooling unit, trolley and subfeeder. You build the system to match your work and change it later as needs change.

It is aimed at fabrication shops, heavy engineering and production welding where reliability, output and flexibility matter.

What is the difference between manual, synergic and pulse versions?

On a manual machine you set voltage and wire speed separately. A synergic machine sets them together from a single control once you pick the material, wire and gas. A pulse machine adds pulsed current for lower heat input and less spatter.

Manual suits experienced welders who like full control, synergic speeds up set-up and consistency, and pulse suits aluminium, stainless and quality-critical work.

What is a subfeeder and when do I need one?

A subfeeder is a separate wire feeder that sits close to the work, linked to the main machine by a cable. It lets you weld a long way from the power source, with a short, light torch lead.

It is useful on large structures, in shipyards, tanks and tall assemblies. Check that the subfeeder is compatible with your power source and whether you need an air-cooled or water-cooled version.

Why might an industrial machine need a three-phase supply?

Higher-output machines draw a lot of current, and a three-phase supply spreads that load across three lines so it is easier to support for long periods of heavy welding. Some machines can run on either supply, usually with a lower output on single phase.

Check the data plate and manual for your own machine to see its supply requirements. Have a qualified electrician confirm the supply, protection and cable size before you connect, and do not modify the supply yourself.

See all 6 questions for this category
