Rapid Ref : FEEDKIT_GT04

Kemppi GT04 Feed Roll Kit #1 for MXP 37
FEEDKIT_GT04

Name: Kemppi GT04 Feed Roll Kit #1 for MXP 37
SKU: FEEDKIT_GT04

Select Option

Prices From £97.22 ex VAT

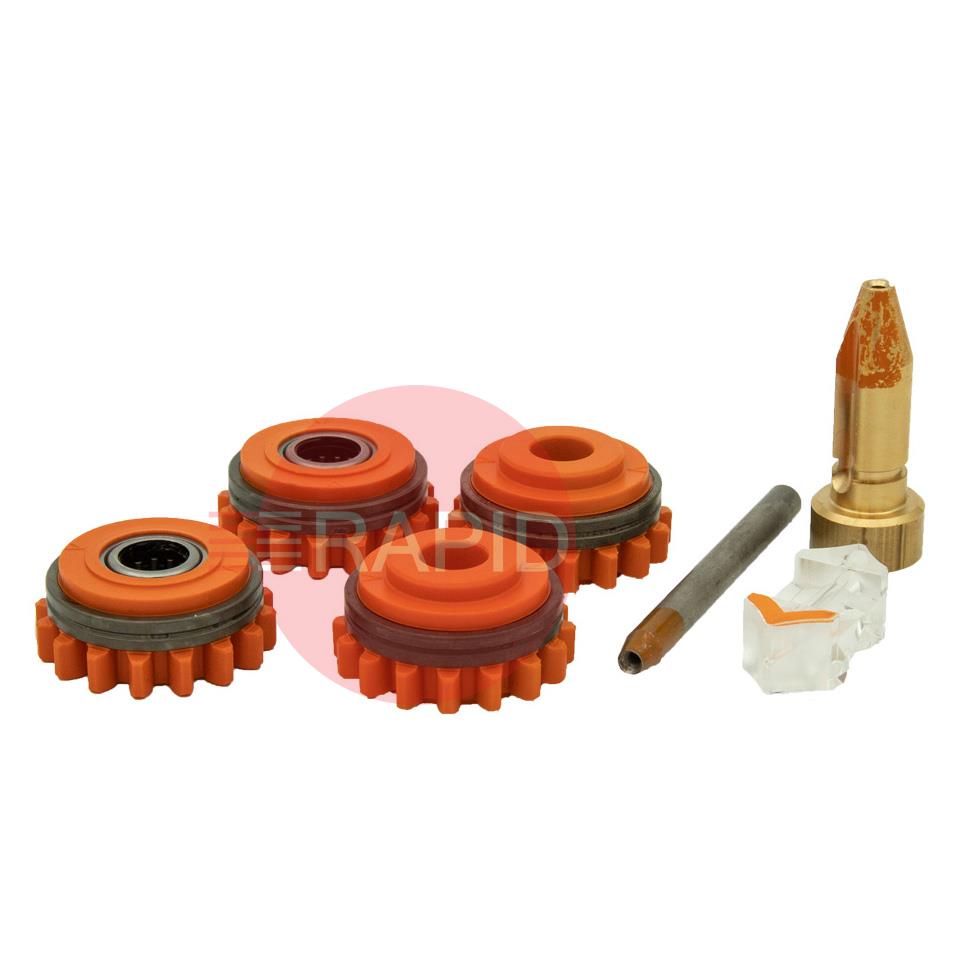

Complete Consumable Feed Roll Kit for MXP 37 Wire Feed Unit.

Kemppi Feed Kits FAQs

Straight answers to the questions people ask most when choosing and fitting a feed roll kit for a wire feeder.

Which roll groove do I need for steel, flux-cored or aluminium wire?

The groove shape is chosen to suit the wire. V-groove rolls are used for solid wire such as steel and stainless. V-knurled rolls, which have small teeth, suit flux-cored and metal-cored wire, because the tubular wire, filled with flux or metal powder, is softer and needs extra grip. U-groove rolls suit aluminium and other very soft wires, because the rounded groove feeds them without squashing them.

Using the wrong type is a common cause of slipping, shaving or crushed wire.

Why does the groove size have to match my wire diameter?

A roll that is too big or too small for the wire cannot grip it properly. Too large and the wire slips; too small and the wire can be squeezed out of shape or shaved. Either way you get uneven feeding and an unsteady arc.

Check the diameter printed on the wire spool and choose a roll or kit for that size. Some rolls carry two grooves for different sizes, so make sure the correct groove is the one facing the wire. The inlet and outlet guides should be sized to the wire too.

What is the difference between standard and heavy duty feed roll kits?

In many kit tables, standard feed roll kits are fitted with plastic rolls and heavy duty kits with metal rolls, listed by wire type and diameter. The exact difference depends on the maker and the feeder, and the groove shape for your wire matters more than the roll material.

Do not assume a heavy duty kit can replace a standard one or the other way round. Check the kit description, the data plate and your feeder manual, and fit the type the manual lists for your feeder and wire.

How tight should I set the drive roll pressure?

Use the least pressure that feeds the wire without slipping. Too much pressure can flatten or deform the wire, which leads to arc instability or burn-back and sheds shavings into the liner. Too little lets the rolls slide over the wire.

A commonly used method is to release the tension, feed the wire against a piece of wood, and tighten until the wire stops slipping, then add about half a turn. Reset the pressure every time you change the rolls or the wire.

See all 6 questions for this category
