Rapid Ref : GXE305W

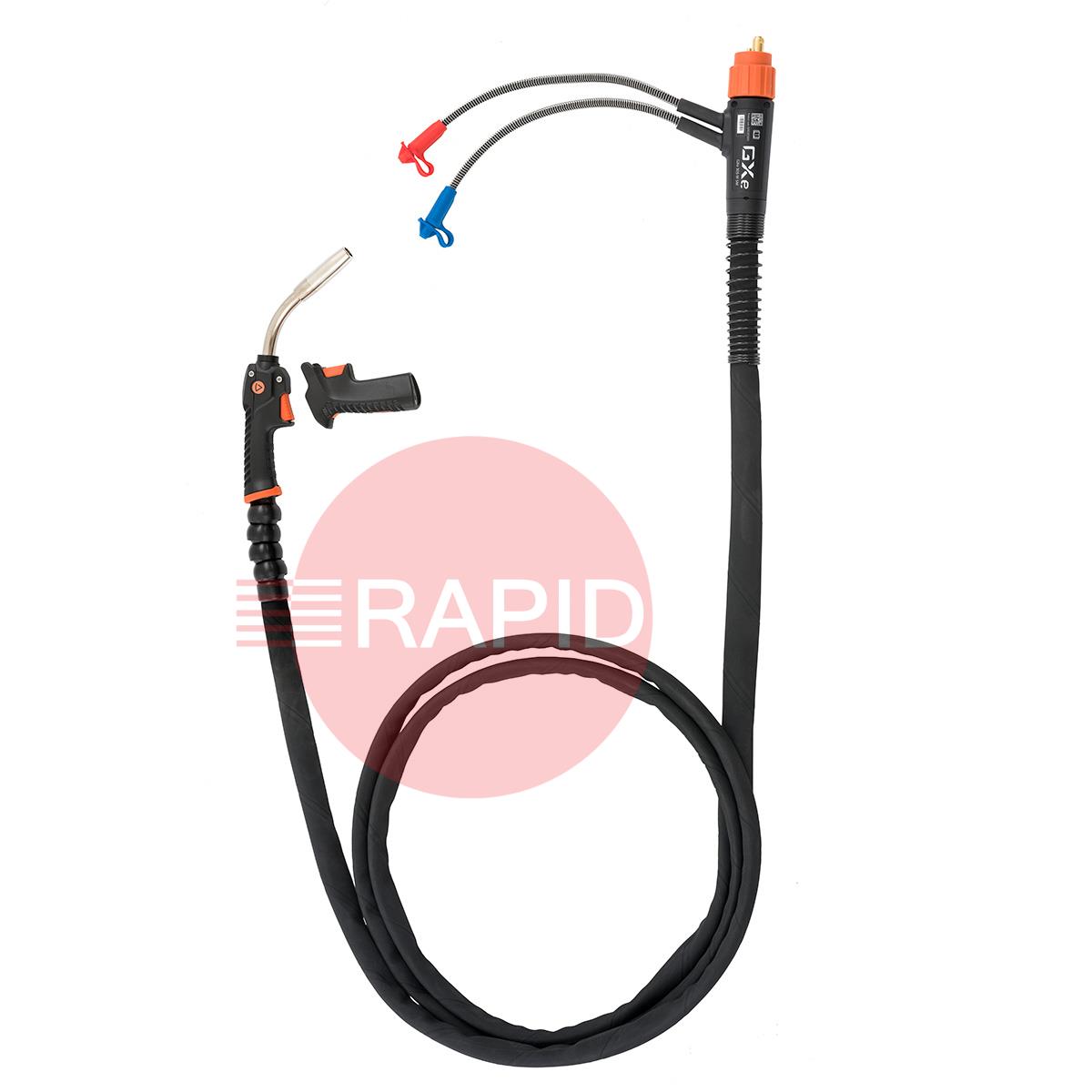

Kemppi Flexlite GXe K5 305W Water Cooled 300A MIG Torch, with Euro Connection
GXE305W

Name: Kemppi Flexlite GXe K5 305W Water Cooled 300A MIG Torch, with Euro Connection
SKU: GXE305W

Select Option

Prices From £382.60 ex VAT

Shop Parts

REDESIGNED WITH OVER 200 IMPROVEMENTS

The Flexlite GXe is a reliable, high-quality MIG/MAG torch series with optimised ergonomics and excellent welding performance. The improved structure enables a longer, cost-efficient lifetime for both the torch and consumables, proved by a 6-month warranty.

Long, cost-efficient lifetime
IP5X Protected against dust and humidity

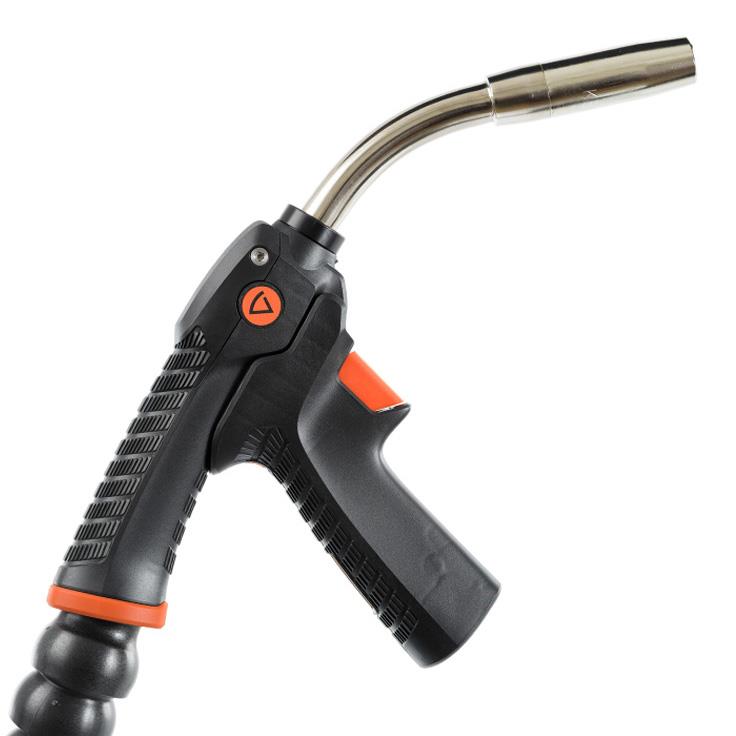

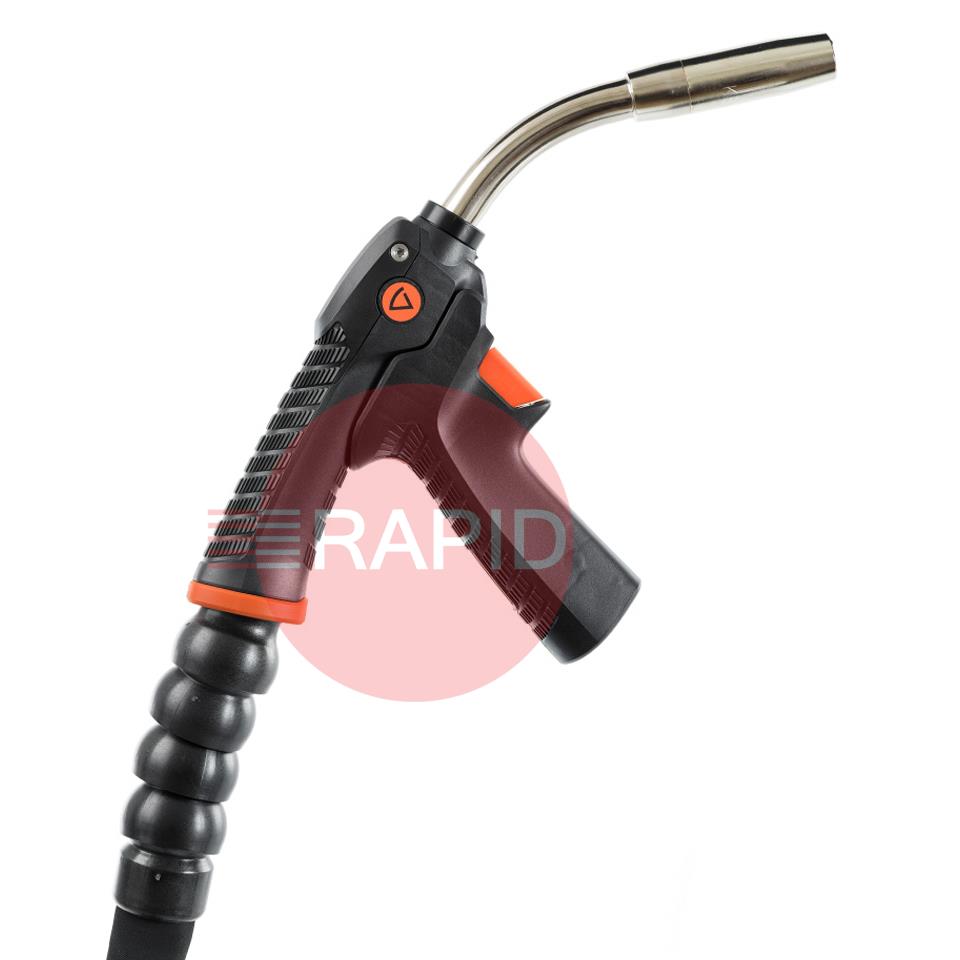

Improved handle grip features and shape for better ergonomics
New lightweight on-torch remote control options
Redesigned and patented ball-joint cable is optimised for smoother wireline and reduces wrist load
Over 200 improvements made to the previous version (GX-series)
Compatible with all GX-series consumables

Brochures & Manuals

BROCHURES & MANUALS

View Brochure

Kemppi Flexlite GXe MIG Torches Declaration Of Conformity

Kemppi Flexlite GXe MIG Torches Operating Manual

MIG Torch FAQs

Straight answers to the questions people ask most when choosing and looking after a MIG torch.

Should I choose an air-cooled or water-cooled MIG torch?

Air-cooled torches are simpler, lighter and need nothing extra, so they suit most light to medium work and welds done in short bursts. Water-cooled torches have a coolant circuit running through them, which lets them carry higher currents for longer without overheating. They are the usual choice for heavy, continuous or production welding, but they need a water cooler and a little more looking after.

If you mostly weld at moderate current in short runs, air-cooled is normally all you need.

Will a MIG torch fit my welding machine?

Many machines use the standard Euro connector, and a torch with a Euro fitting will go straight on. Some machines, especially in smaller ranges or from certain makers, use their own connection, so a torch made for one brand may not fit another.

Check which connector your machine has, along with the torch's gas and electrical connections, before you order. If you are not sure, our team can help you match a torch to your machine.

Which parts of a MIG torch wear out, and how do I know when to replace them?

The parts that wear are the contact tip, the gas nozzle, the diffuser and the liner. A worn or oversized contact tip, or a dirty or kinked liner, causes erratic wire feed, the wire burning back into the tip and an unsteady arc. Spatter building up in the nozzle upsets the gas shield and can cause porosity in the weld.

Change the contact tip when the hole wears oval or the arc becomes unstable, clean or replace the nozzle when spatter builds up, and replace the liner if the wire no longer feeds smoothly.

What length of MIG torch should I choose?

Choose the shortest cable that still lets you reach the work comfortably. A longer cable gives more freedom to move, but the wire has further to travel and more friction to overcome, which can cause feeding problems, especially with soft wires such as aluminium.

Most general fabrication is comfortable with a torch a few metres long. For long reaches, a wire feeder that you can move close to the work usually works better than a very long torch.

See all 6 questions for this category
