9873028 Kemppi Beta e90P Safety Helmet Welding Shield Kit, with 110 x 90mm Passive Shade 11 Lens & Flip Front for Grinding
  • 9873028 Kemppi Beta e90P Safety Helmet Welding Shield Kit, with 110 x 90mm Passive Shade 11 Lens & Flip Front for Grinding
  • 9873028 Kemppi Beta e90P Safety Helmet Welding Shield Kit, with 110 x 90mm Passive Shade 11 Lens & Flip Front for Grinding
  • 9873028 Kemppi Beta e90P Safety Helmet Welding Shield Kit, with 110 x 90mm Passive Shade 11 Lens & Flip Front for Grinding
  • 9873028 Kemppi Beta e90P Safety Helmet Welding Shield Kit, with 110 x 90mm Passive Shade 11 Lens & Flip Front for Grinding
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : 9873028

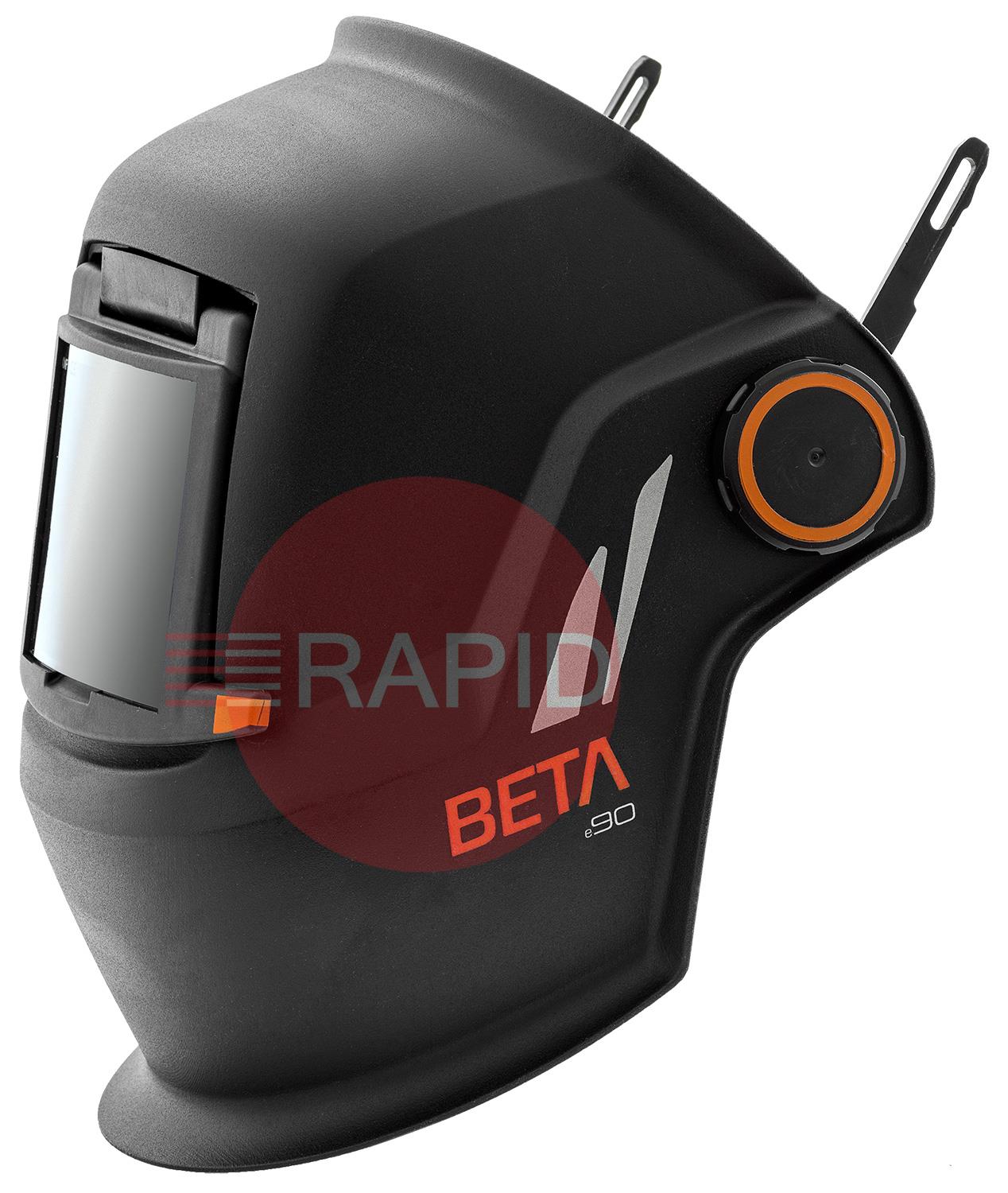

Kemppi Beta e90P Safety Helmet Welding Shield Kit, with 110 x 90mm Passive Shade 11 Lens & Flip Front for Grinding
9873028

£253.00  EX VAT
SSP Suggested Selling Price = £315.92  YOU SAVE £62.92
 Buy in 3 easy interest free payments of £84.33† with
Shop Parts

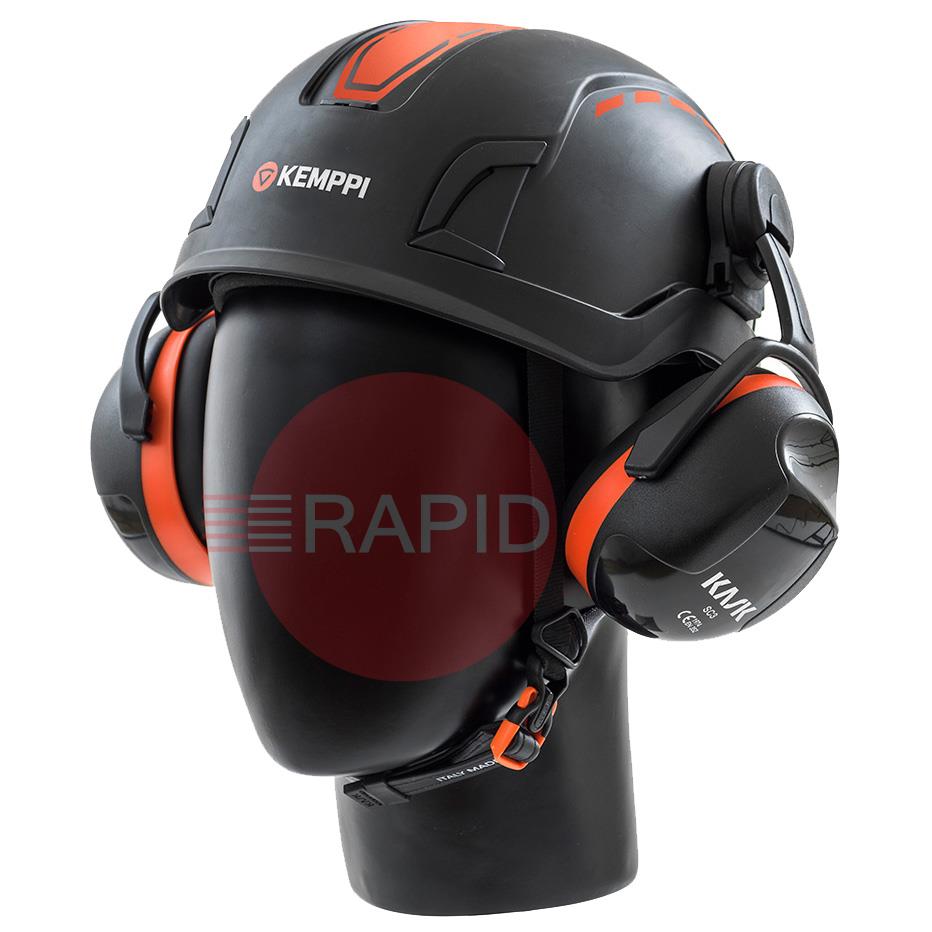

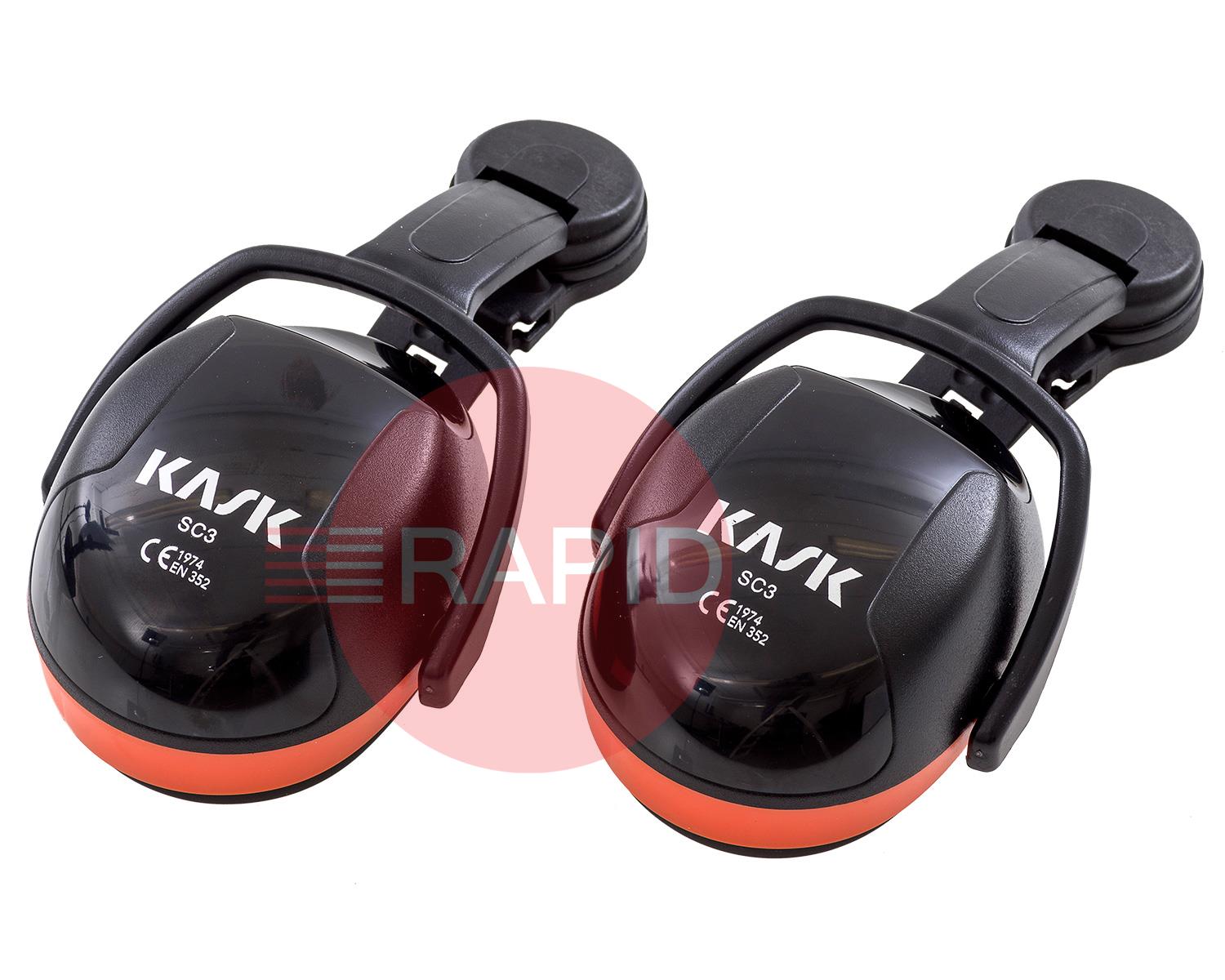

This complete kit includes the Beta e90P SH welding shield, Beta e397 hard hat, and Kask earmuffs.

CONVERT THE SAFETY HELMET INTO A WELDING HELMET

The Beta E SH product range provides cost-efficient occupational safety with full head and face protection as well as the ability to wear the hard hat even while welding. Beta e90 SH welding masks feature either passive or auto-darkening lenses, providing improved occupational safety with full face and head protection against sparks and spatter. This product range is compatible with Kask, Petzl and Zekler hard hats with passive earmuffs.

Quick and secure installation to the hard hat earmuff holder enables easy shifting into different work modes. Click the visor into three positions for multiple uses, from welding to grinding and inspection. The flip-up welding lens cassette holder offers three fixed positions: fully closed, fully open, or the convenient GapView position, which provides a limited clear view of the work area, ideal for setting and tack welding tasks.

Features

  • For MIG/MAG, TIG, MMA, plasma, cutting and grinding applications
  • Magnifying lens frame
  • Reliable full-face protection
  • Improved ergonomics with a lightweight design
  • EN175 B impact protection rated

Product Details

Technical specifications Value
Welding filter type Passive
Grind mode No
Flip-up visor Yes
Impact rate EN 175 B
Operating temperature -5 - 55 °C
Storage temperature -20 - 50 °C
Recommended maximum humidity for use 80%
Weight without accessories 1225kg
Standards EN 175 B, EN 166 B, EN 397

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   Kemppi Beta E SH Declaration Of Conformity

Safety Helmets FAQs

Straight answers to the questions people ask most when choosing and using safety helmets in welding and fabrication work.

What is a safety helmet for, and when do I need to wear one?icon-minus-redicon-plus-red

A safety helmet (hard hat) protects your head from falling objects, from knocks against fixed objects and from some side impacts. You need one wherever your risk assessment or the site rules say there is a head injury risk, such as construction sites, work under cranes or overhead activity, and areas with low beams or pipework.

A welding helmet protects your face and eyes from the arc, but it does not replace a safety helmet unless it is designed to do both. Check what head protection the site requires and make sure what you wear covers it.

What is the difference between a safety helmet and a bump cap?icon-minus-redicon-plus-red

A safety helmet has a hard shell and an internal harness that spreads the force of a blow, and it protects against falling objects. A bump cap is a lightweight cap that only protects against minor knocks, such as hitting your head on a low beam or machine, and it will not protect you from something falling on you.

If there is any risk of falling objects, a bump cap is not enough. Ask your safety adviser which is needed for your task, because the wrong choice can leave you unprotected.

How should a safety helmet fit and how do I adjust it?icon-minus-redicon-plus-red

A safety helmet should sit level on your head, fairly low on the forehead, without rocking when you shake your head and without pinching. Most have a harness that adjusts at the back, either with a ratchet wheel or slots, so you can set the size to your head.

Check there is a clear gap between the shell and the harness and that the helmet does not slip over your eyes when you look down. If you wear a cap, hood or hearing protection underneath, adjust it with those in place. Replace sweatbands that have worn out.

Does a safety helmet protect me from weld spatter and heat?icon-minus-redicon-plus-red

Not necessarily. A standard safety helmet is made to protect against impact, not hot work, and its shell may be damaged by hot metal or strong heat. Some helmets carry an optional marking for molten metal splash, but only helmets marked for it have been tested for it, so check the markings and the maker's instructions for your own helmet.

For welding and cutting, protect your face, head, neck and ears with suitable welding head protection and a hood or cap as well. If the shell shows scorching, distortion or any other heat damage, replace it.

See all 6 questions for this category
