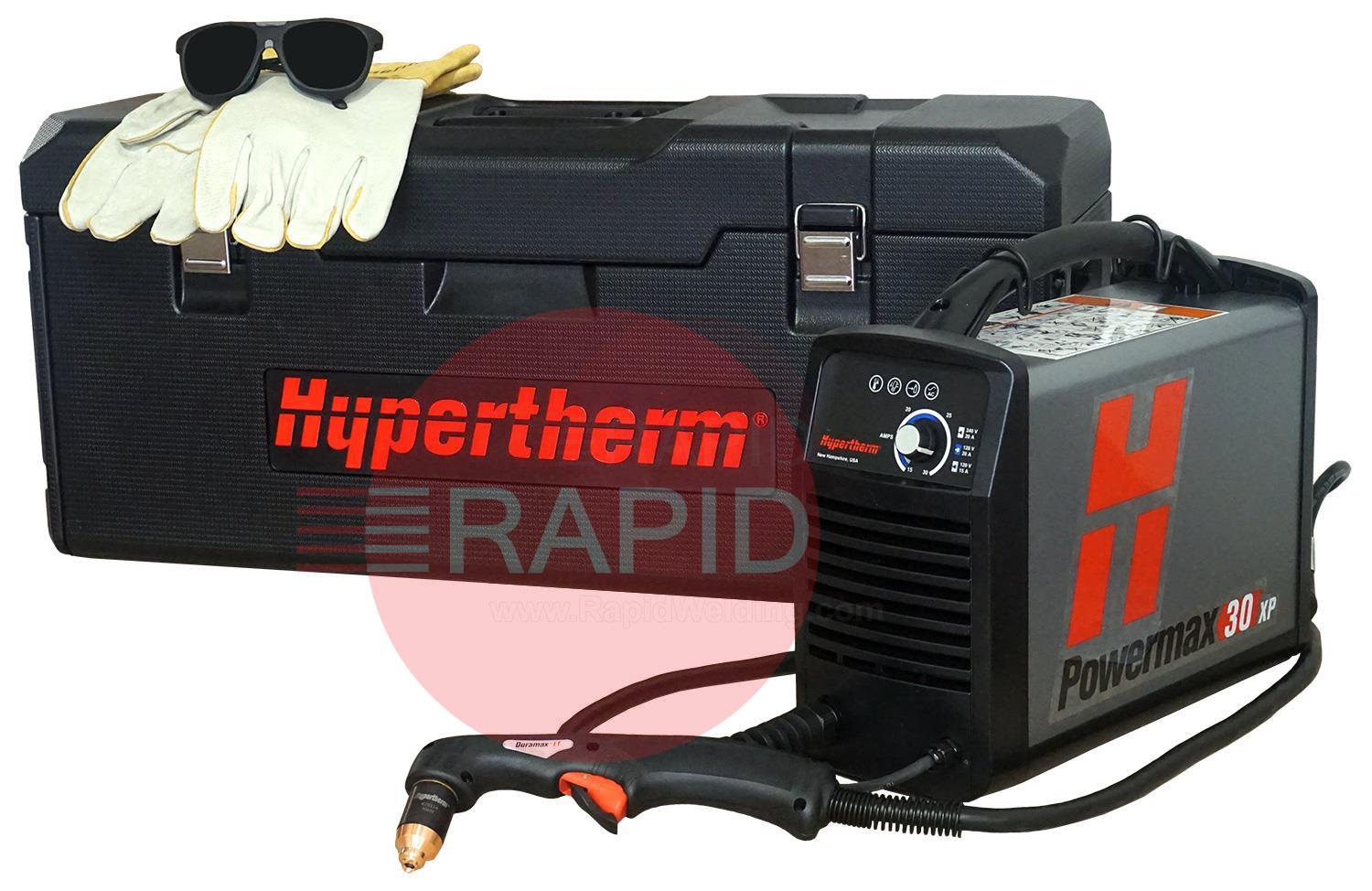

The new Powermax 30 XP is a lightweight, portable plasma cutter offering a 50% increase in power from the Powermax 30. The newly designed torch and consumables make this a versatile cutting tool that cuts metal up to 16mm. The new Duramax LT plasma torch features consumables with twice the consumable life of its predecessor. The Powermax 30 XP has a recommended cut of 10mm at 500mm/min, with a severance of 16mm. This package includes a durable carry case for easy storage and protection.

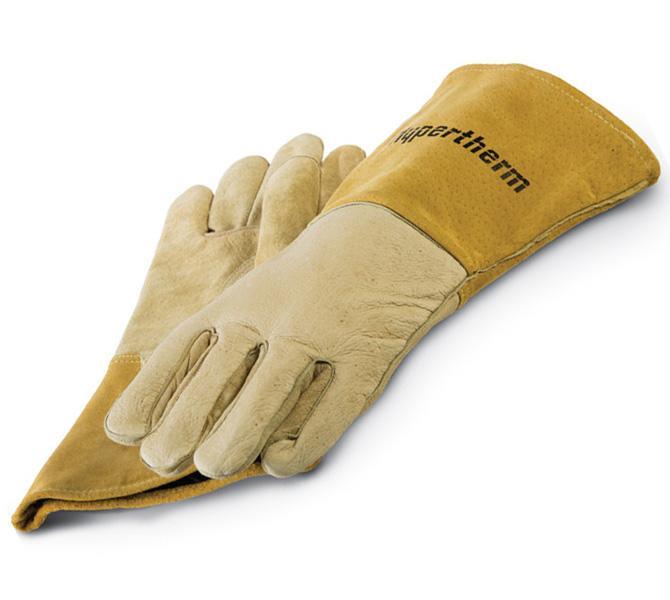

Hypertherm Cutting Gloves (Pair)

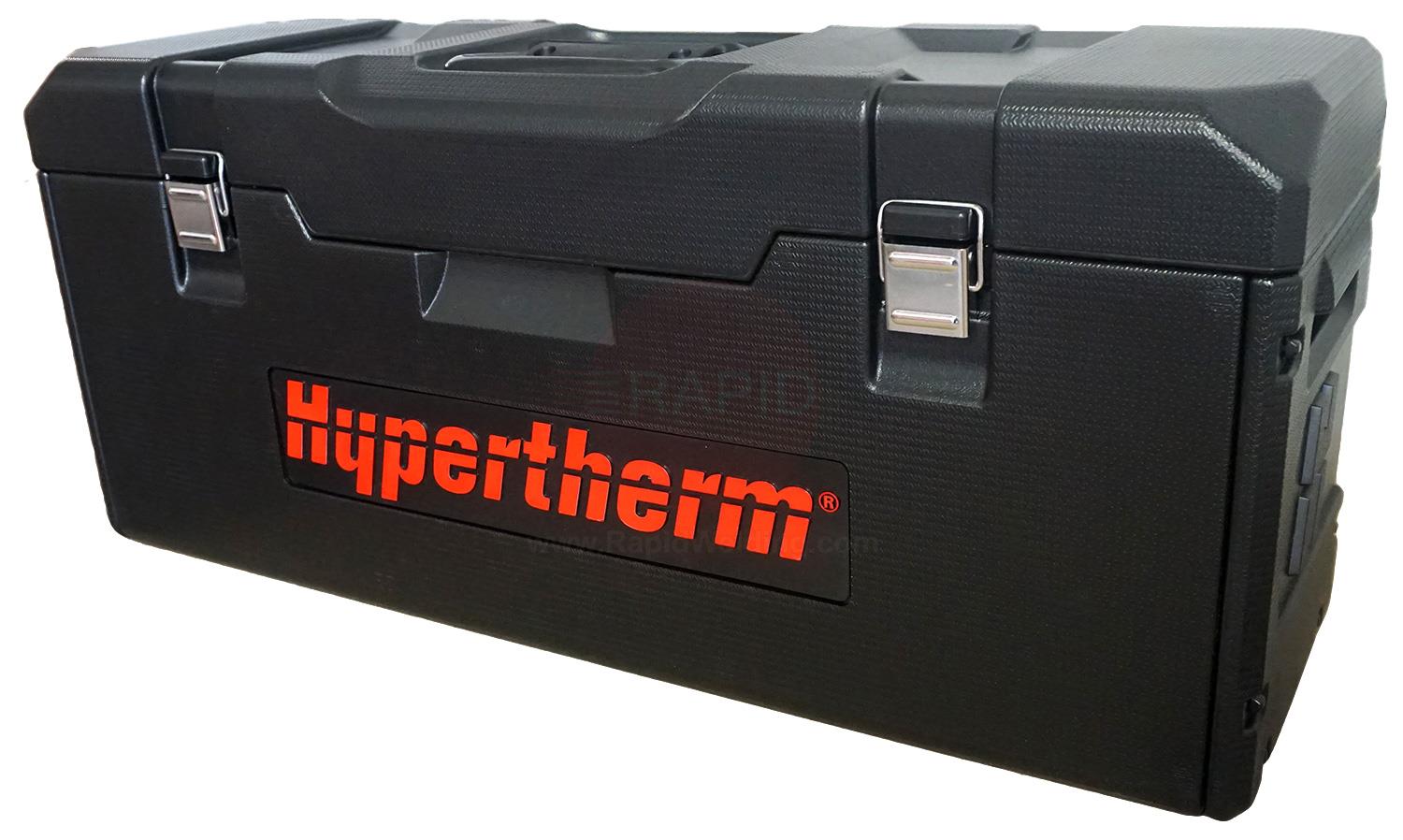

Hypertherm System Carry Case for Powermax 30/30XP

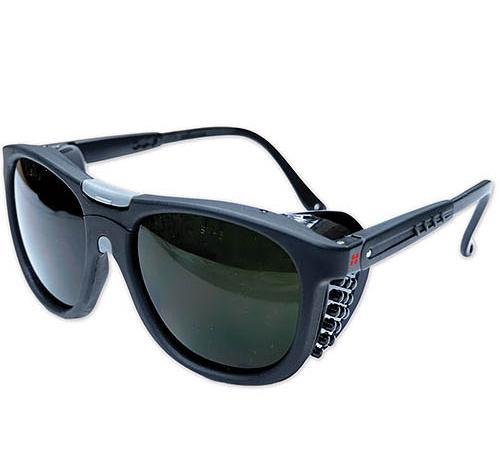

Hypertherm Shade 5 Adjustable Eyeshade

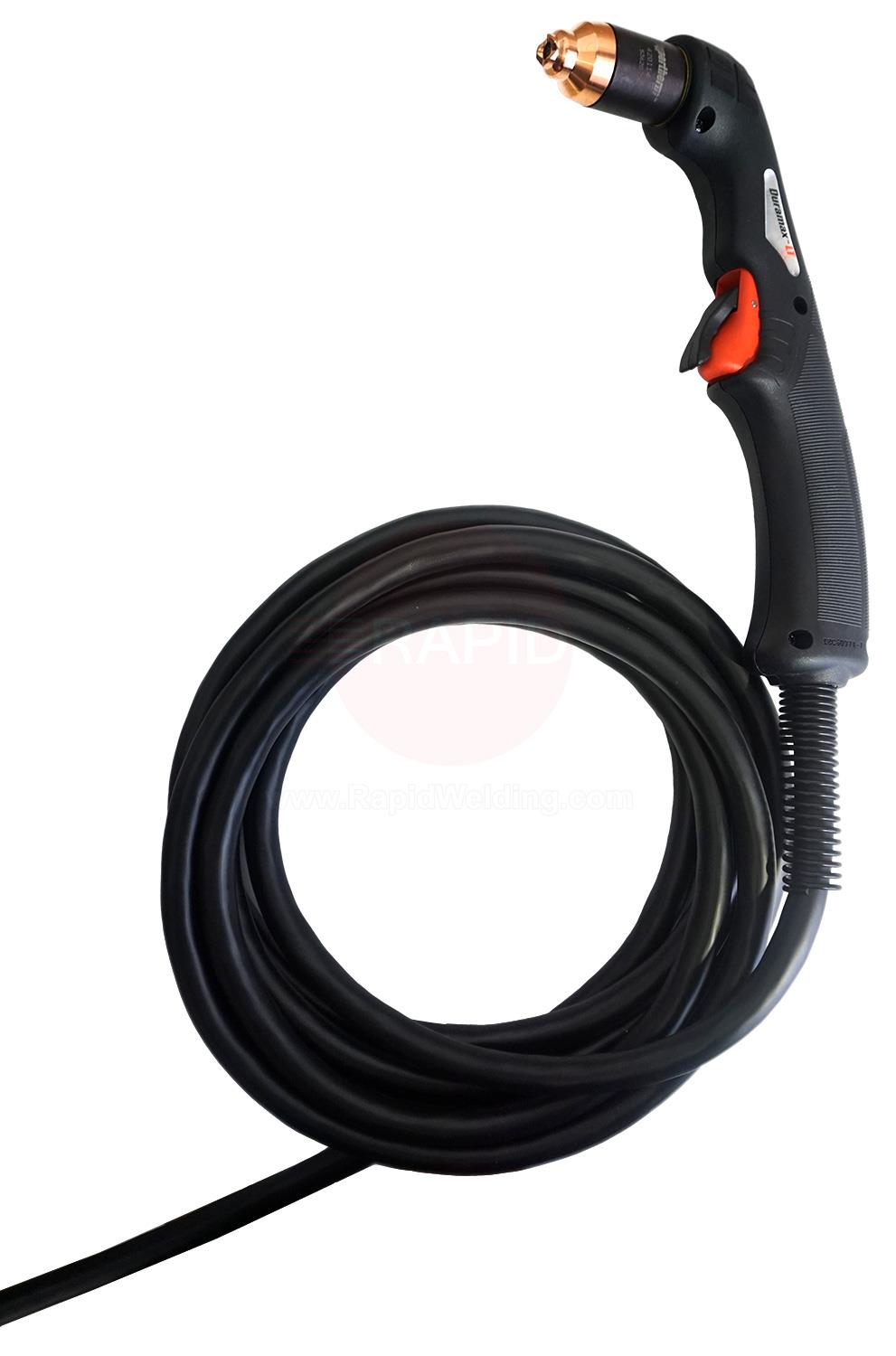

Hypertherm Duramax LT Hand Torch Assembly, for Powermax 30/33XP - 4.6m
Hypertherm Powermax 30/33XP Work Lead with Clamp, 4.6m

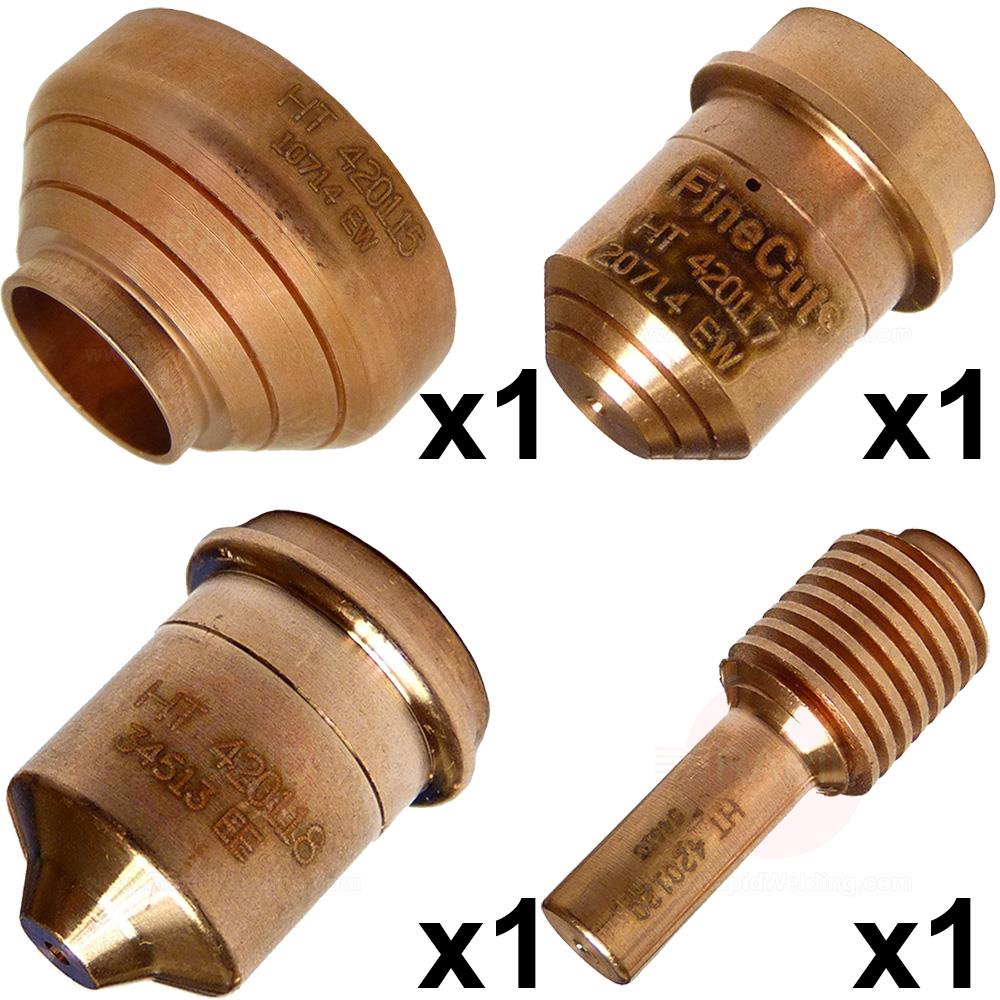

Hypertherm Powermax 30/33XP Starter Handheld Consumable Kit

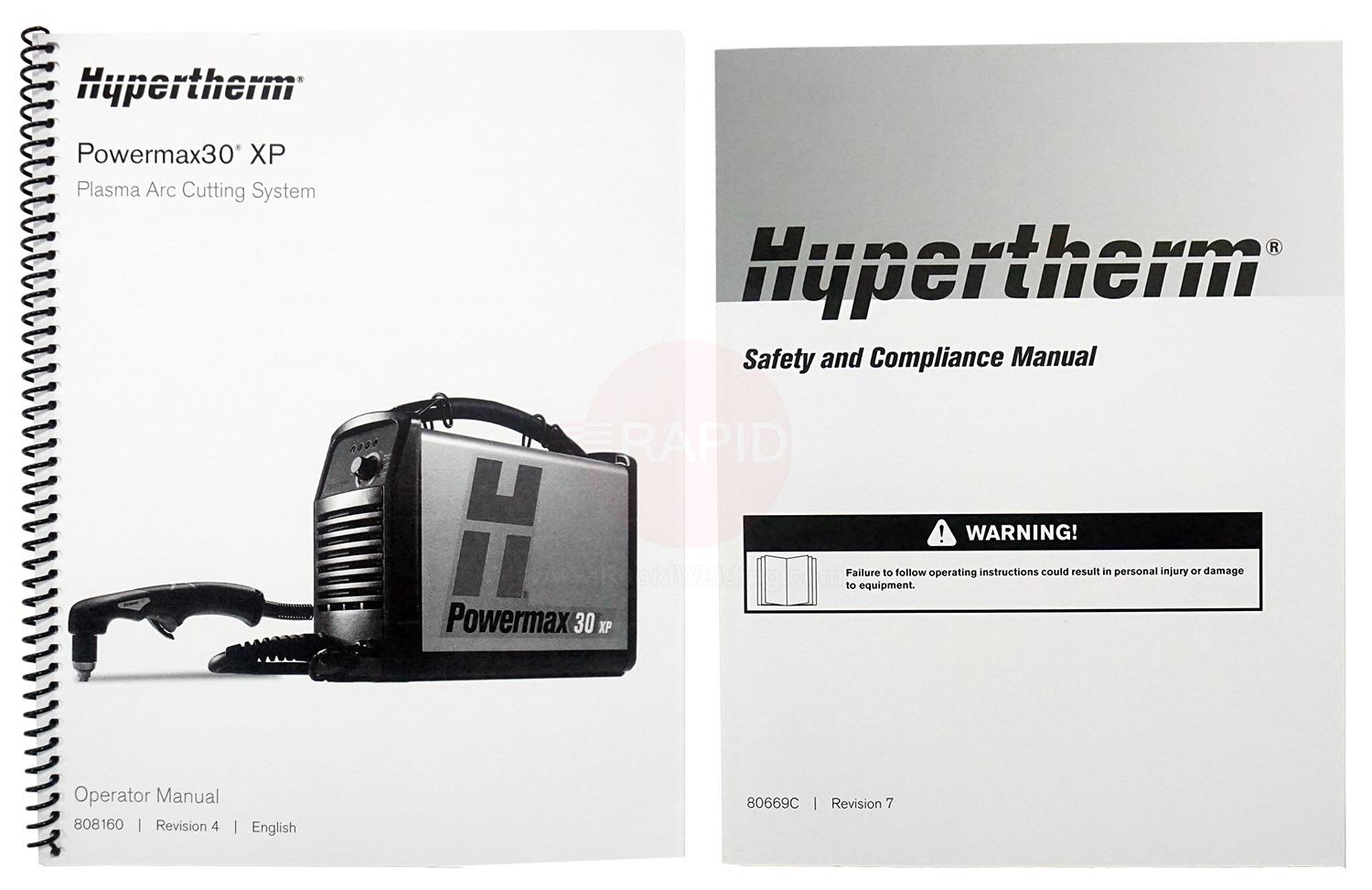

Hypertherm Powermax Operating Manual, Safety Manual, Quick Setup Card

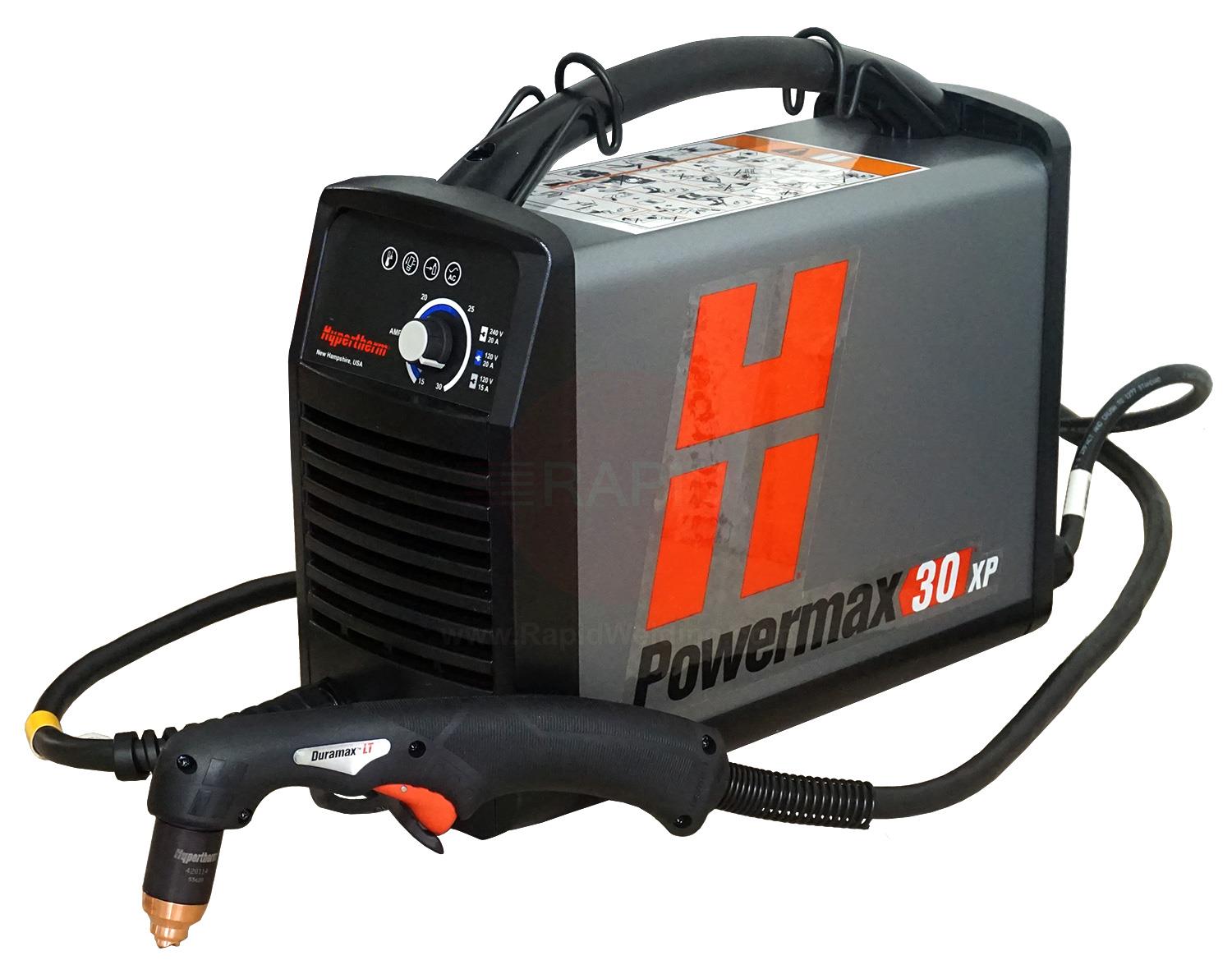

Powermax 30XP Power Source
Hypertherm Shoulder Strap for Powermax 30XP
Hypertherm 6 Year Power Supply Warranty
Straight answers to the questions people ask most when choosing a professional hand-held air plasma cutting system.
Start with the thickest metal you cut regularly and choose a system whose recommended or quality cut rating comfortably exceeds it. The severance rating is the maximum it can part the metal, with a rougher edge, so do not size by that figure.Also think about your electrical supply, how portable the machine needs to be, and whether you will also gouge. A system with some capacity in hand cuts faster, runs cooler and wears consumables more slowly than one working at its limit.
A longer torch gives you reach without moving the machine, which helps around large fabrications. A shorter torch is lighter to handle and suits workshop benches. Choose the shortest lead that does the job comfortably.Head angle matters too. A steeper, angled head gives a natural working posture for cutting flat plate, while a straighter head suits cutting into tight spots and working with a guide. Some buyers choose a system with two torches so they have both.
Some hand plasma systems have a connection for automation. It lets the system be connected to a cutting table, a motion controller or a mechanised carriage, so that the controller can start and stop the arc and receive signals back from the plasma system.For hand-held cutting you do not need it, but it can be useful if you may later add automation. The type of connection and the signals it supports differ between systems, so check the manual and the cables and interface you would need before relying on it.
Most professional hand systems can gouge, using special gouging consumables that blow metal away to remove welds, cracks or unwanted material. It is useful for weld repairs and preparing joints.Gouging produces much more spatter, sparks and fume than cutting, so you need a proper heat shield, full eye and face protection and good ventilation, and you must keep flammable materials well clear. Check the maker's gouging guidance for the system you buy.
