Straightforward answers on choosing, fitting and replacing the consumable parts in a plasma cutting torch.
Start with the torch and power source rather than the part you can see. Consumables are normally specific to the torch type, the cutting current and whether the torch is a hand or machine version, so a part that looks the same may not fit or may not suit your current.Check the data plate and the maker's manual, which normally lists every consumable by part number for each current setting. Compare the old part with the new one before fitting, and if you are unsure, our team can help you work it out from the torch details.

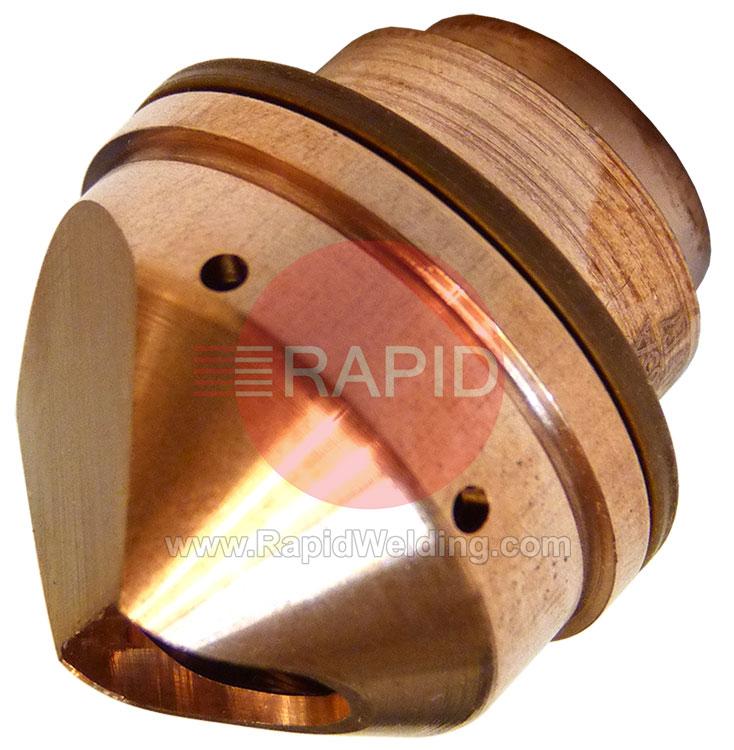

The electrode carries the current and starts the arc. The nozzle squeezes the arc through a small orifice so it is narrow and hot enough to cut. The swirl ring spins the gas around the electrode so the arc stays centred and stable.The retaining cap holds the inner parts in place, and the shield (or cap) protects the front of the torch from spatter and helps shape the gas around the cut. Each part wears in its own way, so a poor cut can point to any of them.
Falling cut quality is usually the first sign: rougher edges, more dross, a bevelled cut or a changed sound from the arc. Look at the parts too. A nozzle whose orifice is nicked, oval or rounded at the edge should be replaced, and an electrode with a deep pit in the centre of its insert is due for replacement.The pit depth that counts as worn differs between makers and electrode types, so use the figure in your torch manual rather than guessing. Do not wait until the part fails completely, as a failing electrode can damage the nozzle.
In most cases, yes. Guidance from plasma makers and trade articles is to replace the nozzle and electrode as a pair, because a new electrode in a worn nozzle (or the reverse) does not perform as well and the worn part can shorten the life of the new one.Some users find a nozzle outlasts an electrode if the electrode is changed before it fails, so a common compromise is to inspect the nozzle each time and replace it when the orifice shows damage. Follow your manual and judge by the cut you are getting.
