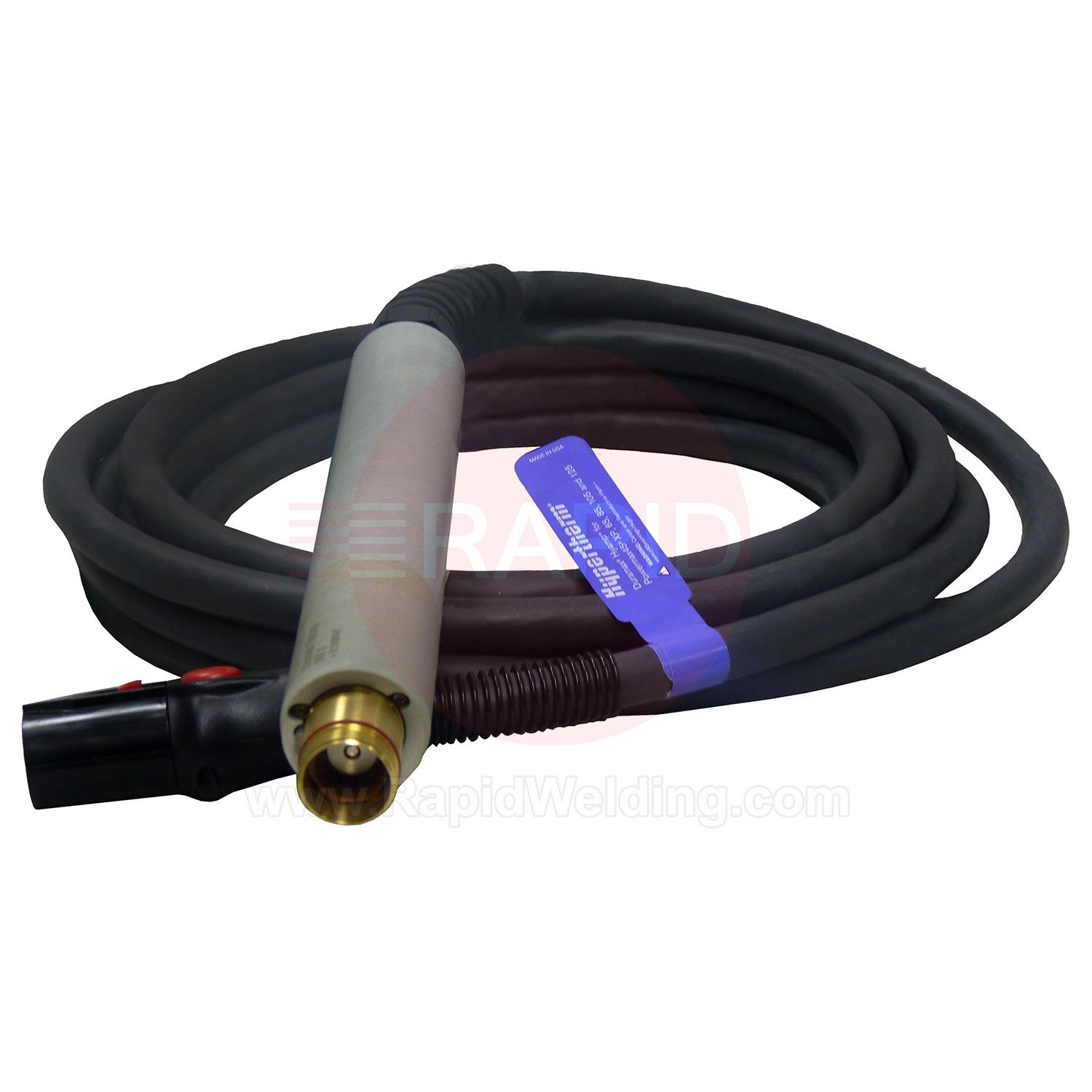

Hypertherm Duramax Hyamp Machine Torch, for Powermax 125
05952X

Name: Hypertherm Duramax Hyamp Machine Torch, for Powermax 125
SKU: 05952X

Select Option

Prices From £901.25 ex VAT

Shop Parts

The new Duramax Hyamp torch range is impact-resistant and designed for high heat to withstand industrial use and harsh environments. Electrode end-of-life detection in the power supply combines with long consumable life to reduce operating costs.

Although designed for the Powermax125, these torches are also compatible with the Powermax105, 85, and 65 systems.

Hypertherm Machine Torches FAQs

Practical answers on fitting, setting up and looking after a plasma machine torch on a cutting table, positioner or automated system.

What is the difference between pierce height and cut height?

They are two separate settings. Cut height (standoff) is the distance between the torch tip and the plate while cutting. Pierce height is the higher setting used to start the hole, so molten metal blown back from the pierce does not land on the nozzle and shield.

A common rule of thumb is to pierce at roughly one and a half to two times the cut height. Piercing too low is a leading cause of early consumable and torch damage, while piercing too high can stop the arc transferring to the plate. Take the exact values from the cut chart for your consumables, material and current.

How does torch height control keep the cut consistent?

Arc voltage rises as the torch moves away from the plate and falls as it gets closer. A torch height control reads that voltage while cutting, compares it with a target set from the cut chart, and raises or lowers the torch to hold the distance steady. This lets the torch follow warped or uneven plate.

The voltage reading also shifts as the electrode and nozzle wear, so a worn set can leave the torch sitting at the wrong height. If cut quality drifts, check the consumables and the actual cut height as well as the voltage setting.

Why are my parts bevelled or not square?

Too much bevel usually points to the torch settings or the torch itself. A top that is narrower than the bottom is commonly linked to a worn nozzle, too high a standoff, too little current or too much speed. Undercutting, where the bottom is narrower, is linked to too low a standoff, too much current or too low a speed.

A bevel that changes from positive to negative on the same part often means a failed nozzle, a torch that is out of square to the plate, or misaligned parts inside the torch. Check the consumables first, then the squareness of the torch, then the cutting parameters against the cut chart.

How do I know when to change the consumables on a machine torch?

Look at how the parts have worn rather than changing them after a fixed number of hours. Replace the nozzle if the orifice is gouged, oversized or out of round, and replace the electrode when the pit in the insert has become too deep. Falling cut quality, more dross or a changing bevel are your cue to inspect.

Running parts until they fail can ruin the plate and damage the torch itself. Keep a note of arc-on time or number of starts for a typical set so you can plan changes, and replace the electrode and nozzle together where the maker advises.
