Rapid Ref : CV38RH

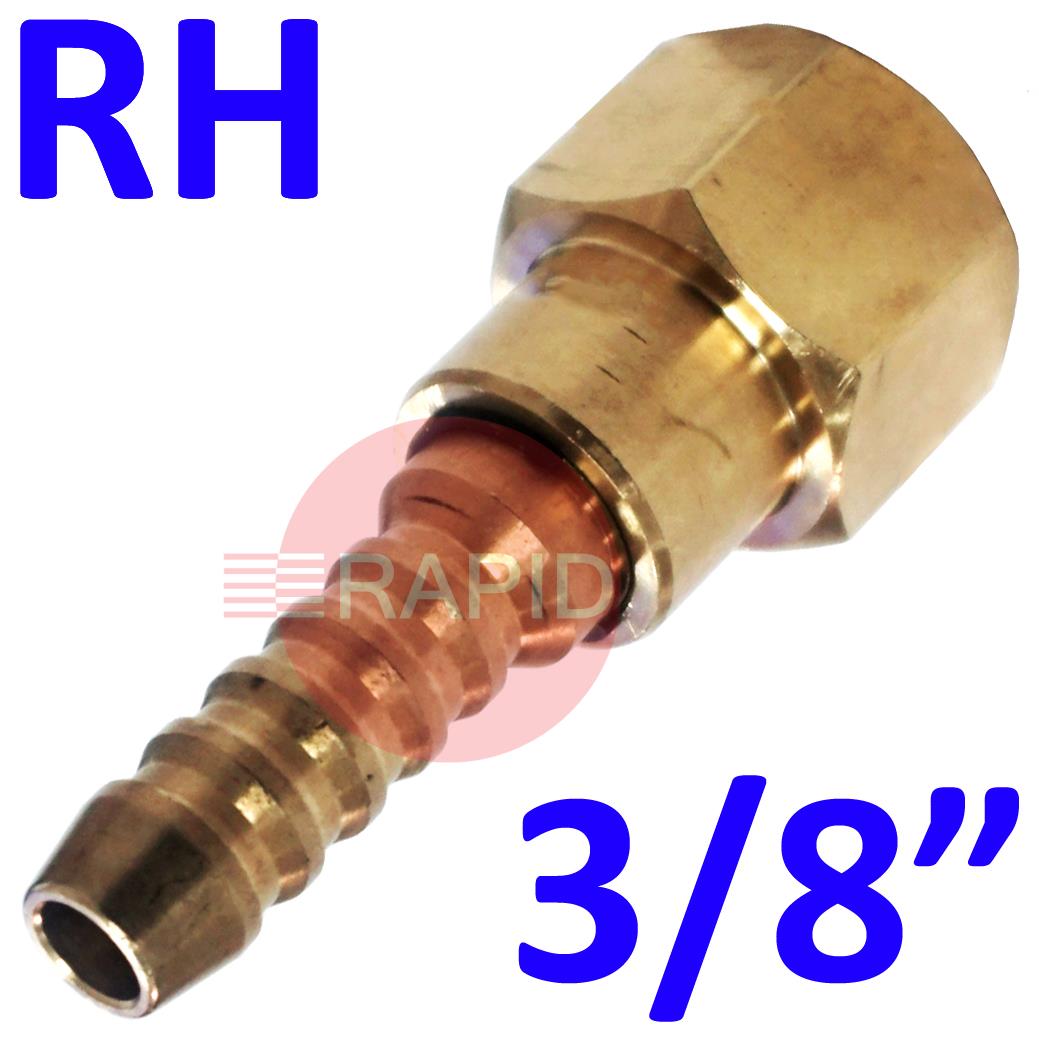

Hose Check Valve. 3/8" BSP Connection. Right Hand Thread For Oxygen
CV38RH

Name: Hose Check Valve. 3/8" BSP Connection. Right Hand Thread For Oxygen
SKU: CV38RH

Select Option

Prices From £3.35 ex VAT

A vital piece of equipment protecting against backfeed. The hose check valve is a self-aligning non return valve which is spring loaded and detects reverse gas flow; it automatically closes, therefore preventing the conditions which lead to flashback. Conforms to BS EN 730-2.

Please Note: This product is fitted at the torch connection and is to be used in conjunction with a Flashback Arrestor.

Gas Fittings FAQs

Union nuts, tails, couplers, adaptors and clips for gas welding hose: how to choose them and fit them safely.

How do I work out which thread and size of fitting I need?

Start with the connection you are joining to, such as the regulator outlet or the blowpipe inlet, and read the thread size and hand (left or right) marked on it or given in the maker's data. Common gas welding connections use parallel threads in sizes such as 1/4 inch and 3/8 inch, with a left-hand thread for fuel gas and a right-hand thread for oxygen. The nut size is separate from the bore of the hose that goes on the tail.

Standards for hose connections set the dimensions of the union, nut and tail so that parts made to them fit together, but makers differ in detail. If you are unsure, check the existing part against the data plate or manual, or ask our team to help you identify it.

Do I need tape or paste on a hose union nut?

No. Gas welding hose unions generally seal on a face or washer, not on the thread. Parallel threads are made to hold the parts together, and the seal is made where two faces are pulled together with a seal between them. Tape or paste on the thread does not help the seal and can get into the gas path.

An equipment manufacturer's instructions also say not to use any jointing paste or tape between a regulator and the cylinder. Keep threads and seating faces clean and undamaged, and replace a washer or seat that is worn or marked, following the maker's instructions for your fitting.

Can I use ordinary worm-drive hose clips on gas welding hose?

No. HSE guidance says screw-tightened clips such as jubilee clips are not recommended for gas welding hose, because of the risk of leaks from over-tightening or under-tightening them. Hose tails should be refitted using crimp clips or ferrules designed for the task.

Use the type of clip or ferrule that the hose and fitting makers recommend, fitted with the correct tool, and follow your site rules. Replace a clip that has been removed rather than refitting it, unless the maker says it can be reused.

What is the difference between a hose coupler and a hose splicer?

A coupler has a thread or connection at each end, such as two union nuts, and is used to join two threaded hose ends or to join a hose to a threaded component. A splicer is a straight tail-to-tail joiner that goes inside two hose ends. Choose the one that matches the ends you are joining.

Both add a joint, and every joint is a possible leak point and a point where the hose can be strained. Where possible, use a single length of hose of the right size rather than several short lengths joined together, and use only parts that are made for gas welding hose and suit the gas and the bore.
