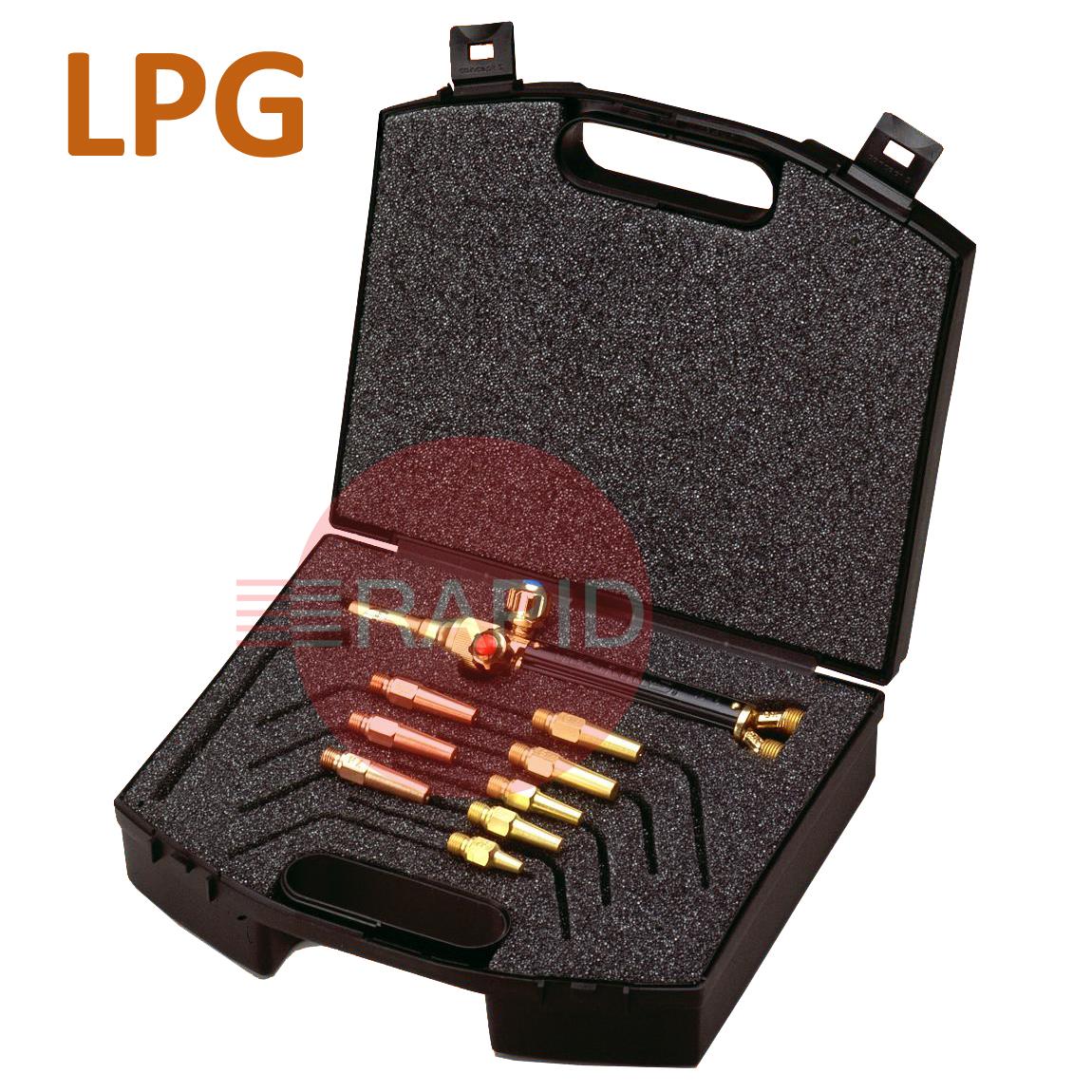

Harris LD 1390 Propane Brazing Kit.Containing: 19-6 shank, H19-2S Mixer, D-50-C Neck Tube, 1390 Series Brazing Tip No. 2N, 3N, 5N, 6N, 8N, 10N, H (Heating Tip).
Harris 19-6 Shank 1/4 BSP Connection.
Harris Neck Tube D-50-C
Harris H-19-2S Mixer For LPG or Natural Gas
Harris Brazing Tip 1390-2N
Harris Brazing Tip 1390-3N
Harris Brazing Tip 1390-5N
Harris Brazing Tip 1390-8N
Harris Brazing Tip 1390-9N
Harris Brazing Tip 1390-10N
Straight answers to the questions people ask most when choosing and using a cutting and welding outfit.
Acetylene gives a hotter, more concentrated flame, which is useful for welding, brazing and fast, accurate cutting. Propane, and other LPG fuels, are used mainly for cutting and heating, are widely used for heavy cutting and site work.The two use different nozzles and regulators, and you cannot swap them without changing parts. Choose the fuel to suit the work you do most, and check that the outfit you pick is made for it.
A typical outfit has two regulators, hoses, a torch handle, a cutting attachment and/or welding attachments, a selection of nozzles, and often flashback arrestors or check valves. Some include goggles, a spark lighter and a carry case or box.The gas cylinders are normally not included, and are hired or bought separately from a gas supplier. You may also need a trolley, gloves and eye protection, fire-resistant clothing, and leak-detection fluid. Check the contents carefully so you know what else you need.
A general-purpose, medium-duty oxy-acetylene combined set is a common choice because it can weld, braze, heat and cut. For occasional light work, a lightweight outfit is easier to move and store.If you have never used oxy-fuel equipment, get proper training first, from a trained person or a recognised course, because the gases are hazardous. Choose an outfit that has the safety devices fitted as standard.
It depends on the cutting nozzle size, the regulator capacity and the gas pressures, as well as the fuel. Lightweight outfits cut thinner steel, and medium or heavy-duty outfits with larger nozzles cut much thicker plate.Makers publish a chart that shows the nozzle size, pressures and thickness range for their torches, and you should follow it. Cutting only works on steel and iron types that burn in oxygen, so it does not work on stainless steel or aluminium.
