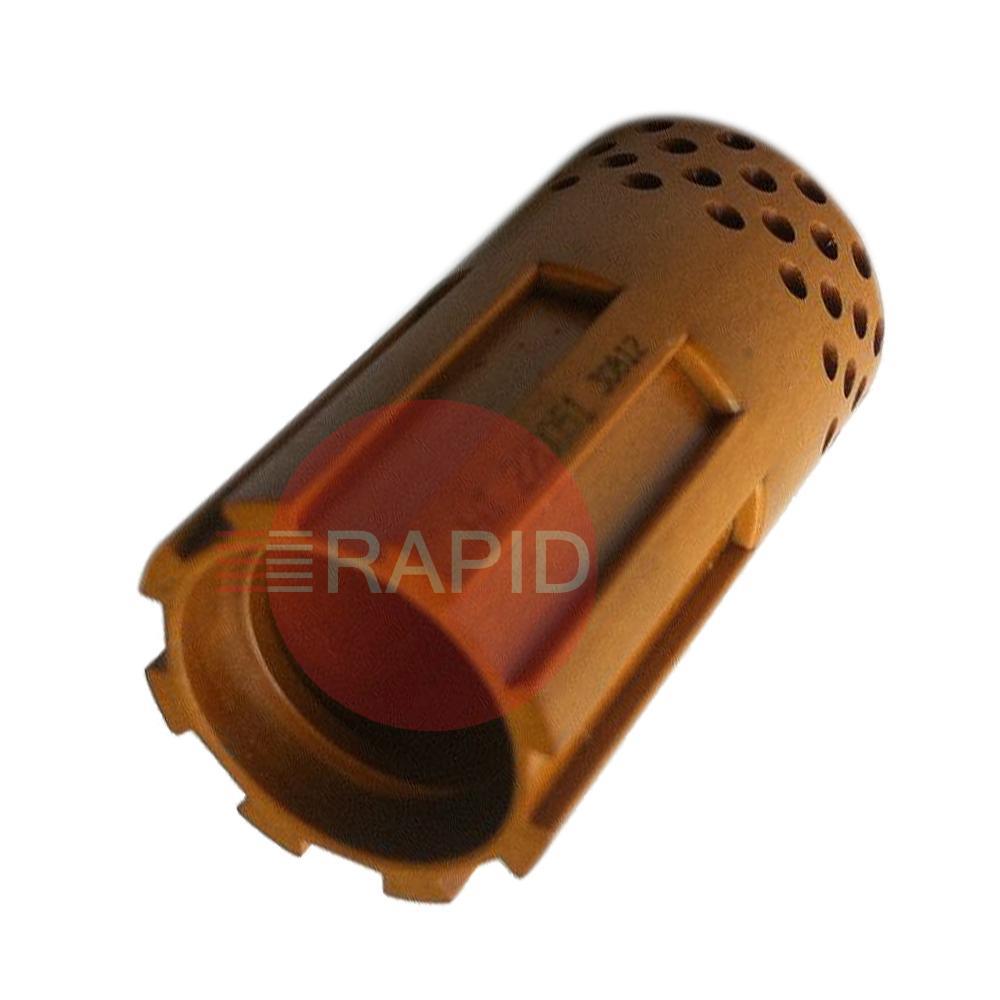

Genuine Hypertherm Swirl Ring.
Straight answers to the questions people ask when choosing and fitting replacement consumables and spare parts for a plasma torch.
The electrode carries the current to the arc and is its starting point. The nozzle focuses the arc and gas through a small central orifice. The swirl ring spins the gas around the electrode to centre the arc and help cool the nozzle. The retaining cap holds the parts together, and the shield protects the torch from sparks and molten metal.The nozzle and electrode wear fastest and are normally changed together. Your torch manual shows exactly which parts your torch uses.
The usual first sign is poorer cut quality: a wider cut, more dross on the underside, rough edges or hard starting. Then look at the parts. Maker guidance says to replace a nozzle that shows erosion, missing material, blocked gas holes or an off-round or enlarged centre hole, and a worn orifice is one of the first things to check when dross appears.When the electrode itself is worn, the maker advises replacing the electrode and nozzle together. Your manual gives the wear limits for your torch.
Usually not. The swirl ring is not worn by the arc in the same way, so it often lasts through several nozzle and electrode changes. Inspect it each time you change parts, and clear dirt from its gas holes with clean, dry air.Maker guidance says to replace a swirl ring that is chipped, cracked, has blocked gas holes or has damaged O-rings. Poor gas swirl affects cut quality, so do not keep using a damaged one. The replacement interval depends on the torch and how it is used, so follow your manual.
Consumables are made for particular current ranges. The nozzle orifice is sized for the current, and running a set well outside its range can burn it out quickly or spoil the cut. Gouging and fine-cutting nozzles also have different orifice sizes from standard cutting nozzles.If you cut across a wide range of currents you may need more than one set of consumables. Check the consumables chart in the maker's manual for the setting you use, and change sets when you change to a very different current.
