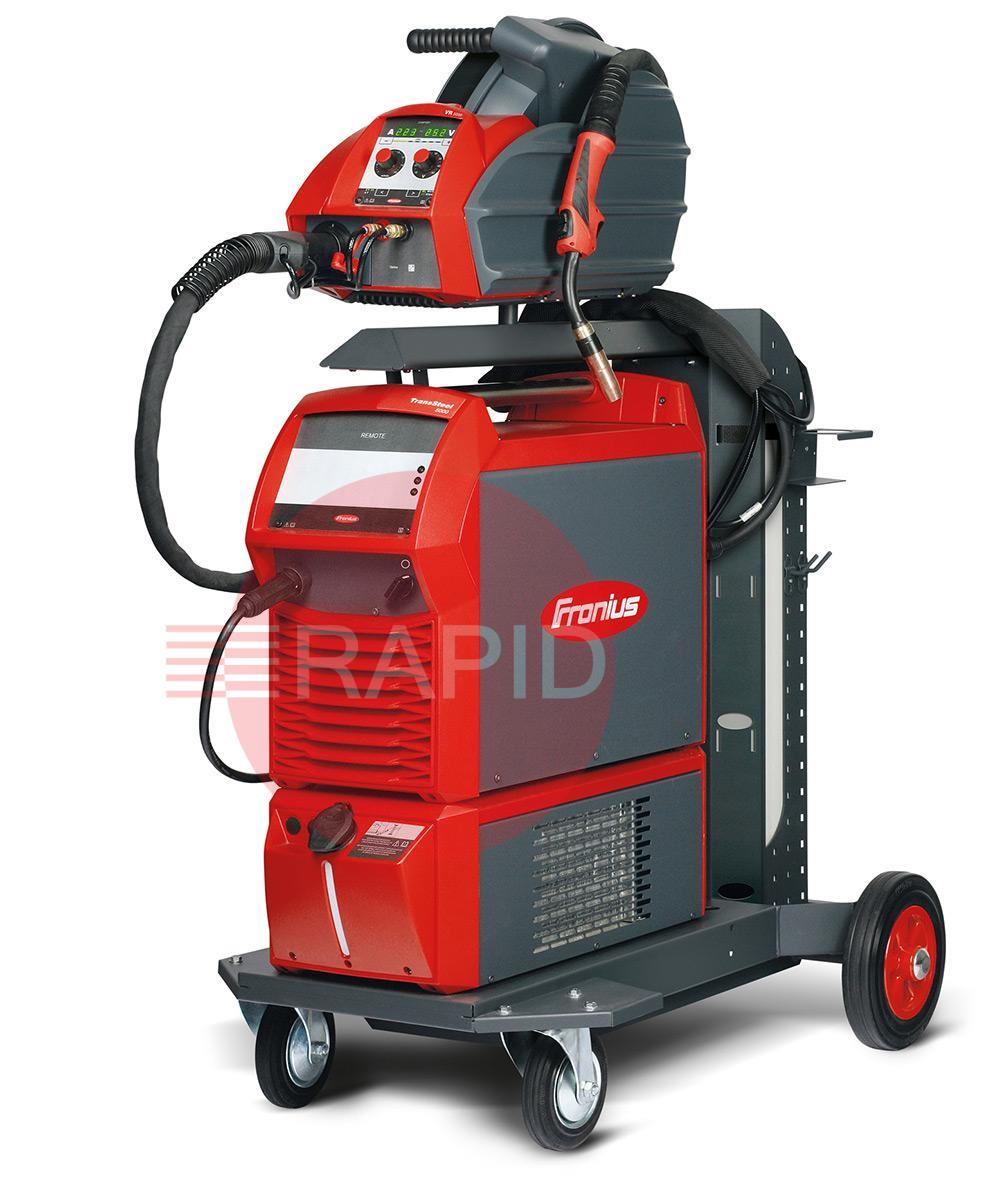

The Synergic edition is a custom-tailored welding system for building ships and oil rigs. The welding programs on the TransSteel Synergic are designed for applications where flux-cored and solid wires are preferred and have been optimised with this in mind. A selection of suitable characteristics, as used in this sector, is stored in the welding system, e.g. the gas-flow regulator in the wire feeder and a welding-current outlet for using a rod electrode directly. The Synergic Edition satisfies the greater need for mobility in shipyards by having a special trolley with integrated crane-hoisting lugs. A specially developed crane attachment point directly on the wire feeder provides yet more scope for job site mobility.
Fronius - MTW 500i Watercooled MIG Torch - FSC/4.5m/45°/LED
Fronius - Connection Hose Pack W /10m /70mm²
Fronius - Cooling Unit FK 5000
Fronius - VR 5000 Case 4R /G /FSC Synergic Bayonet Connection
Fronius TransSteel 5000 SYN 415v Power Source
Fronius - TU Car 4 Pro
Fronius - I-Kit Water Cooling VR 5000
Fronius - I-Kit Gas Test /Wire Threading VR 5000
Fronius - I-Kit Cooling Filter FK 5000
Fronius - OPT /TU Turning Pintle Mounting VR 5000
Fronius - I-Kit Flowmeter VR 5000 Case (Gas-Flow-Control)
Fronius - I-Kit Current Socket VR 5000 Case
Fronius - Mounting Case D200 VR5000 /VR4000 /WF25i Case D200
Fronius - Ground Cable 70mm² 4m 600A 35% Plug 70mm² Earth Clamp
Fronius Feeder roll U 1.2 (4 of)
Fronius - Consumable Kit Steel 1.2mm /G/W/5m
Fronius 3 Year Parts & Labour Warranty
Straight answers to the questions people ask most when choosing a three-phase MIG welder for workshop and production use.
Yes, it needs a three-phase connection with the correct cable size and protection for the machine's input current, installed by a competent electrician. The manual states the recommended supply cable and fuse or breaker rating.Do not connect a machine to a circuit that has not been checked for the load. Poor supply causes tripping, overheating and unreliable welding.
Air-cooled torches are simpler and need no extra equipment, and suit many general jobs. Water-cooled torches carry higher current for longer without overheating, so they suit heavy, continuous or production welding, but they need a cooler and a little more upkeep.Choose according to the current and the duty cycle you will use.
Duty cycle is the proportion of a ten-minute period the machine can weld at a given current before it must cool. A higher duty cycle at your working current means fewer interruptions on long welds.If you weld continuously at high current, look at the rating at that current rather than the headline maximum.
A compact machine has the wire feeder built into the power source and is simpler and easier to move. A separate (split) system has an independent wire feeder connected by an interconnecting cable, which you can carry to the work, away from the power source.Separate feeders suit large fabrications and reaching big workpieces, and compact units suit general workshop use.
