0700301091 ESAB Rogue EM 180 MIG/MAG & MMA Inverter Welding Package - 230v, 1ph
  • 0700301091 ESAB Rogue EM 180 MIG/MAG & MMA Inverter Welding Package - 230v, 1ph
  • 0700301091 ESAB Rogue EM 180 MIG/MAG & MMA Inverter Welding Package - 230v, 1ph
  • 0700301091 ESAB Rogue EM 180 MIG/MAG & MMA Inverter Welding Package - 230v, 1ph
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : 0700301091

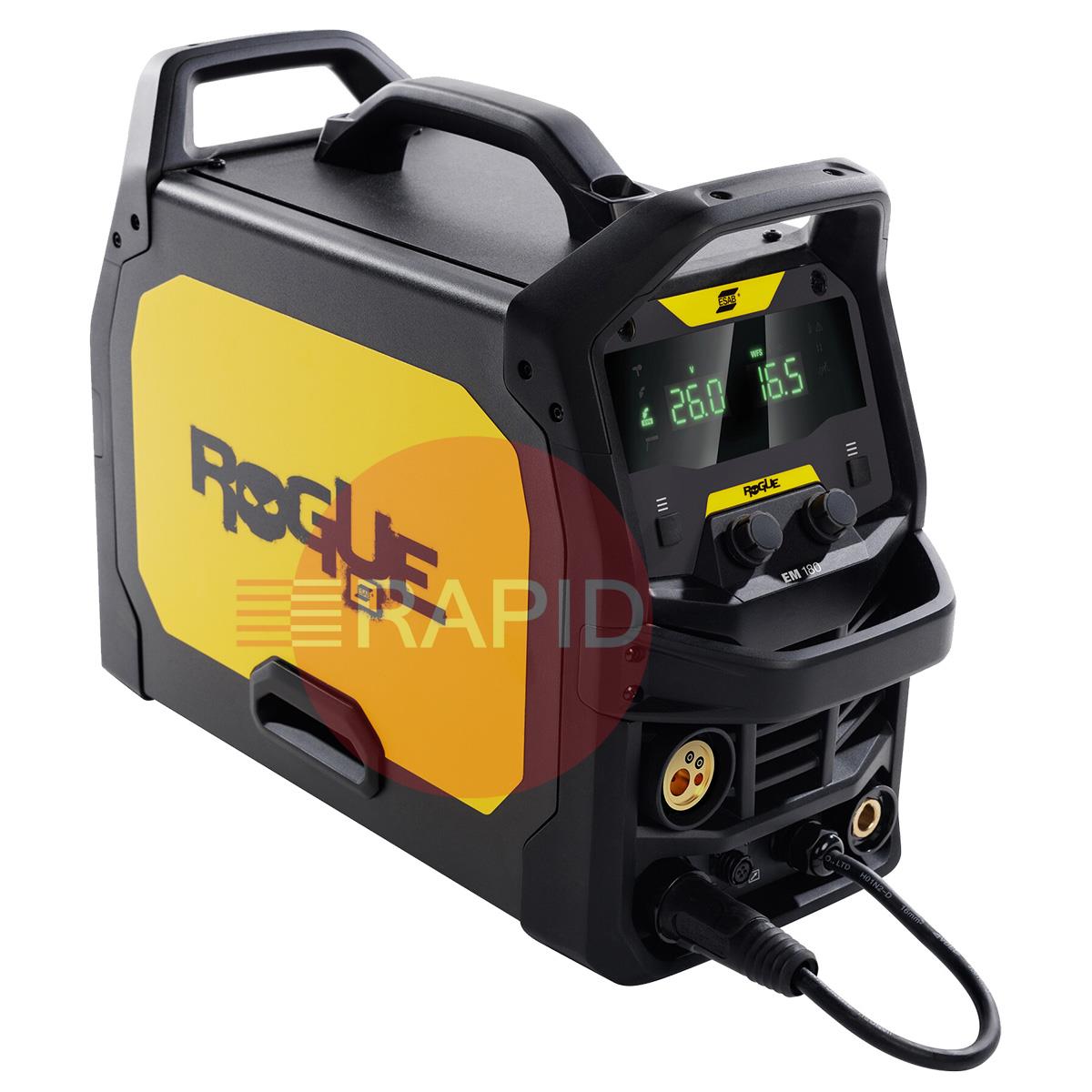

ESAB Rogue EM 180 MIG/MAG & MMA Inverter Welding Package - 230v, 1ph
0700301091

Click here to see what's included
£1149.00  EX VAT
SSP Suggested Selling Price = £1847.20  YOU SAVE £698.20
 Buy in 3 easy interest free payments of £383.00† with
Additional items to consider
Add a Regulator
2 gauge bottom Entry MIG Welding Regulator x1 £30.61
2 gauge Side Entry MIG Welding Regulator x1 £41.00
GasiQ 2 gauge Side Entry MIG Welding Regulator x1 £63.73
GasiQ Optimator Lockable Gas Saver Side Entry Reg - 34Lpm x1 £165.12
Add Welding Wire
ESAB AristoRod 12.50 Premium MIG Wire 0.8mm 5kg x1 £22.60
ESAB AristoRod 12.50 Premium MIG Wire 1.0mm 5kg x1 £20.77
Bohler A18 Q G 3, 0.8mm Premium MIG Wire 15kg x1 £26.89
Bohler A18 Q G 3, 1.0mm Premium MIG Wire 15kg x1 £25.95
Bohler A18 Q G 3, 1.2mm Premium MIG Wire 15kg x1 £25.44
Add Welding Gauntlets
Kemppi Craft MIG Model 6 Welding Gloves - Size 7 x1 £21.12
Kemppi Craft MIG Model 6 Welding Gloves - Size 8 x1 £21.12
Kemppi Craft MIG Model 6 Welding Gloves - Size 9 x1 £21.12
Kemppi Craft MIG Model 6 Welding Gloves - Size 10 x1 £21.12
Kemppi Craft MIG Model 6 Welding Gloves - Size 11 x1 £21.12
Kemppi Craft MIG Model 6 Welding Gloves - Size 12 x1 £21.12
Add a Tool
Multi Purpose MIG Helper Pliers x1 £11.40
Gas Shroud Spatter Reamer x1 £4.90
Ambersil Anti Spatter Spray 400ml x1 £5.25

Package includes 3m MXL 201 MIG Torch Euro, return cable kit, 3m OKC 35-50 16mm², 4.5m Gas Hose with quick connect /open, ESAB OK AristoRod 12.50 0.8mm 1Kg, ESAB GoldRox Electrodes 2.5 x 350mm 1Kg, Feed rolls 0.6/0.8mm V (fitted), 0.8/0.9mm V and 0.8/0.9mm VK, and 3m 16A plug.

Portable MIG/MAG and MMA welding package

ESAB Rogue EM 180 is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full-featured controls that allow the welder to fine-tune arc characteristics based on the welding material.

With a weight of only 16.2Kg, 230V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and the field.

Product Details

Entry-level welder with professional performance.

Rogue EM single-phase welding power sources take everything welders loved about Caddy MIG to the next level with proven Rogue performance and a rugged industrial design. Power Factor Control (PFC) technology allows for a highly efficient and steady arc resistant to power fluctuations. Break away from convention with Rogue.

Built to withstand impact after impact.

No other machine at this price point matches Rogue's strength. Its robust and rigid fibreglass-moulded housing is built to withstand impact after impact in the shop or the field. Like every ESAB machine, Rogue has an industry-leading, 3-year warranty for unbeatable peace of mind. Goodbye to cheaply constructed welders; hello to strength and toughness when you go, Rogue.

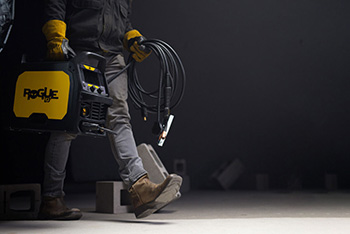

A portable workhorse.

Rogue’s compact and lightweight design makes it easy to carry from job to job, with sturdy handles and a small footprint. Thanks to stable arc performance, it performs in the workshop or on-site, on both mains and generator power, all without affecting weld quality. With its durable and weather-resistant housing and IP23S rating, Rogue is the definition of a portable workhorse.

Take MIG welding to the next level.

A large, clear digital display allows easy access to all weld parameters, including synergic programs and MMA Welding. With dual voltage 110/230V input and compatibility with 10kVa generators, Rogue EM performs in the workshop or on-site on both mains and generator power.

Advanced features for total control.

With Arc Dynamics, you can fine-tune arc characteristics based on the welding material. So, if you need a stiff arc for carbon steel or a soft arc for stainless, Rogue will not disappoint you. Advanced MIG features include adjustable pre- and post-flow, burn back control, wire jog and gas purge. In MMA mode, hot start and arc force control ensure smooth starts and consistent welds.

Brochures & Manuals

BROCHURES & MANUALS
   View Brochure
   ESAB Rogue EM 180 Instruction Manual

What's Included

0349312105 ESAB Gas Hose w/ Quick Connector - 4.5m

ESAB Gas Hose w/ Quick Connector - 4.5m

0367556001 ESAB Feed Roll 0-6mm - 0.8mm V Groove

ESAB Feed Roll 0-6mm - 0.8mm V Groove

0367556002 ESAB Feed Roll 0.8mm - 1.0mm V Groove

ESAB Feed Roll 0.8mm - 1.0mm V Groove
0700006901 ESAB Return Cable Kit OKC 50 200A - 3m

ESAB Return Cable Kit OKC 50 200A - 3m

46592535Z0 Esab OK GoldRox 2.5mm x 350mm Mild Steel Electrodes, 1.0kg Pack. E6013

Esab OK GoldRox 2.5mm x 350mm Mild Steel Electrodes, 1.0kg Pack. E6013

WARRANTYE3 ESAB 3 Year Parts and Labour Manufacturers Warranty

ESAB 3 Year Parts and Labour Manufacturers Warranty

Related Items

230v MIG Welders FAQs

Straight answers to the questions people ask most when choosing a MIG welder that runs from a normal single-phase supply.

Who are single-phase MIG welders for?icon-minus-redicon-plus-red

They suit workshops, garages, farms, mobile engineers and light fabrication where a standard single-phase supply is all you have. Modern inverter designs draw relatively little current for their output, so many can run from a normal socket or a suitable dedicated circuit.

They are popular for both industrial and home use, and cover a wide range of work from thin sheet to moderate thickness.

What is the difference between an inverter and a conventional single-phase MIG welder?icon-minus-redicon-plus-red

An inverter converts the supply electronically, which generally makes the machine lighter and smaller, and often gives finer control of the arc. A conventional (transformer) machine uses a heavy transformer, so it is bulkier, but it is simple and robust.

How much current each type draws for a given output varies between machines, so compare the input current and weight on the data plate and in the manual. For portability and a limited supply an inverter is often the better choice, while some people prefer a transformer design for rugged, simple workshop use.

Can I plug it into a normal socket?icon-minus-redicon-plus-red

Some smaller machines can, but many need a dedicated circuit with suitable protection, and some larger single-phase machines need a heavier supply than a normal domestic socket gives. Check the machine's input current and the supply and fuse or breaker rating it requires.

Have a qualified electrician check the supply if you are unsure. Running a machine beyond what the circuit can supply causes tripping and can be dangerous.

What is the maximum thickness a single-phase machine can weld?icon-minus-redicon-plus-red

It depends on the machine's output and the process. Smaller machines suit thin sheet and light fabrication, while larger single-phase units cope with thicker plate, especially with good joint preparation and multiple passes.

Check the maker's stated capacity rather than relying only on the headline current, and remember that duty cycle limits how long you can weld at the top of the range.

See all 6 questions for this category
