Rapid Ref : 0445100920

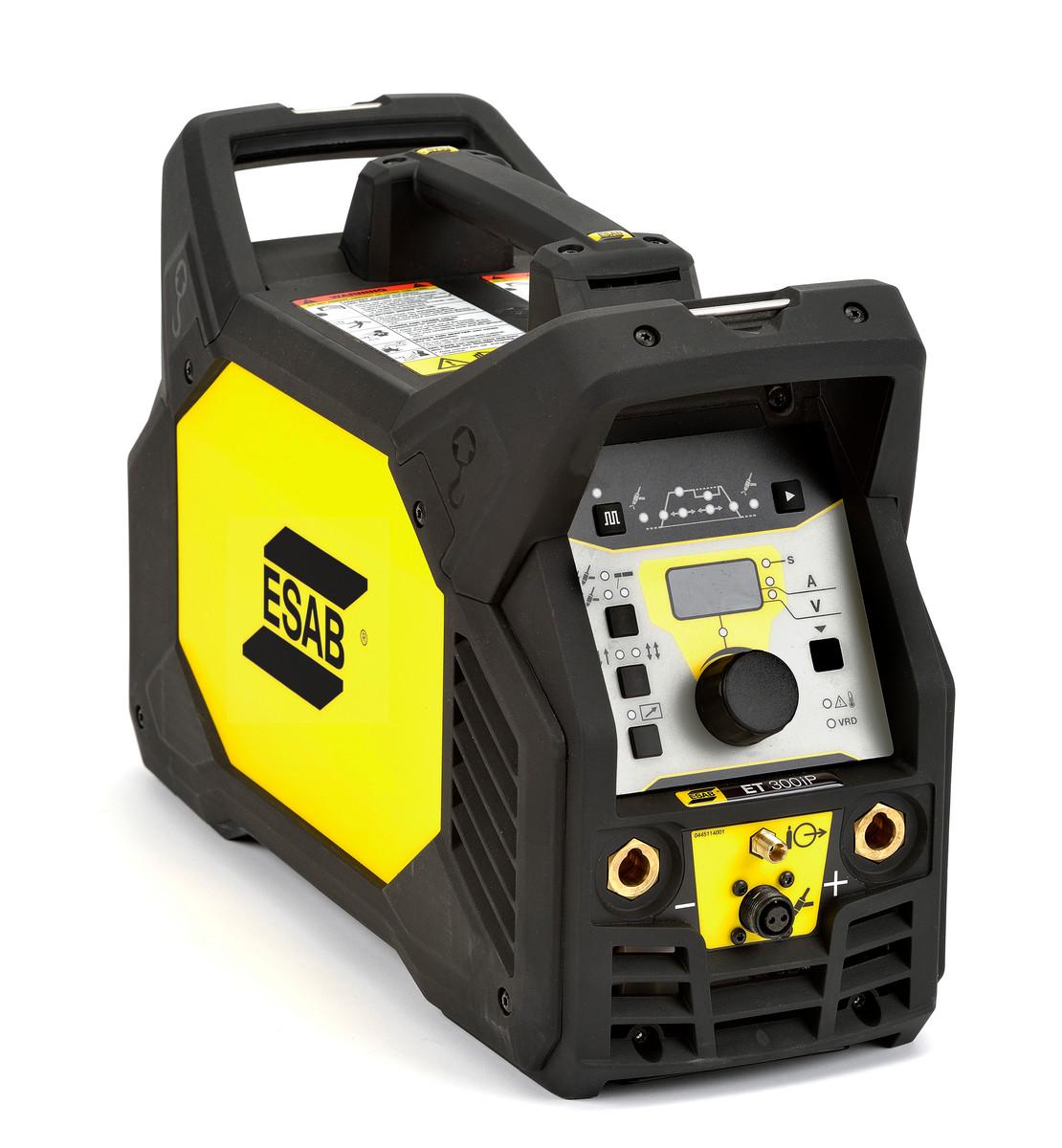

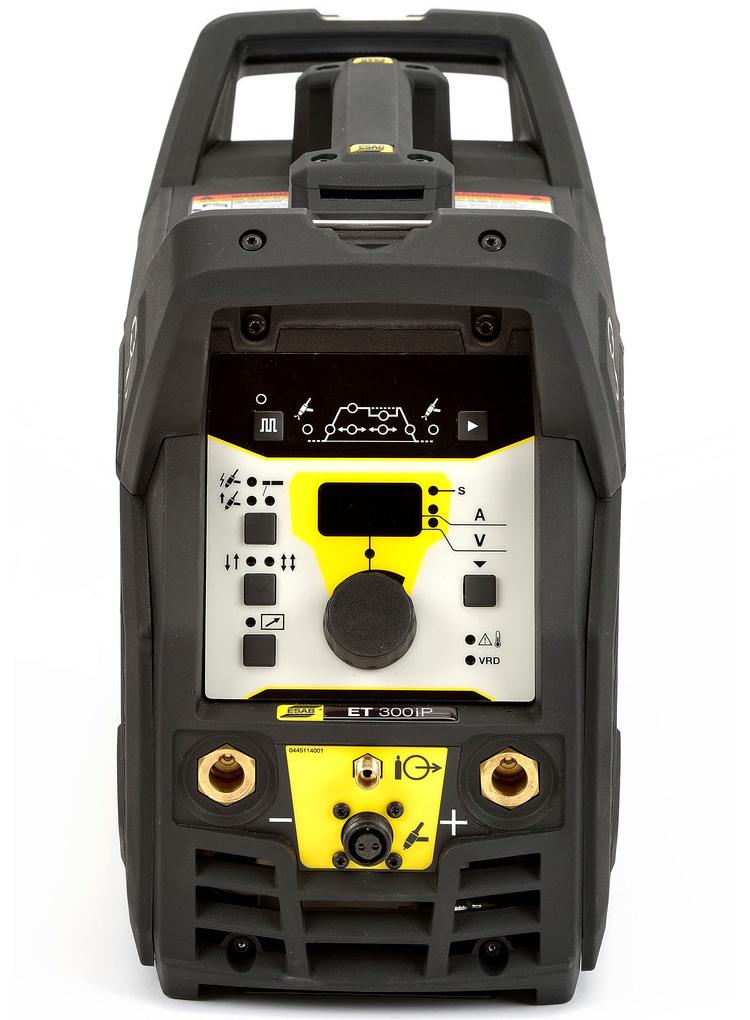

ESAB Renegade ET300iP Pulse TIG Power Source, 208 - 520V, 3 ph
0445100920

Click here to see what's included

£4011.00  EX VAT
SSP Suggested Selling Price = £4718.74  YOU SAVE £707.74
 Buy in 3 easy interest free payments of £1337.00† with

Portability is paramount. But so is power.

The ET 300iP includes pulse TIG for thin sheet metal applications

The Renegade TIG are inverter-based High-Frequency TIG (HF) and MMA/Stick machines with extreme power-to-weight ratio. The compact format makes it easy to carry and bring to any job site. Combined with a high-duty cycle and the ability to run the machine on long mains and welding cables, this is a superior welding machine for both on and off-site applications. The machine has an automatic input voltage sensor and can operate with any input voltage between 208V and 528V in three-phase and 230V in single phase.

Features

  • Extreme power-to-weight ratio in a most compact format. Rugged composite casing for durability in the roughest environments
  • Designed for extreme conditions including up to +55°C ambient temperature
  • Widest input voltage tolerance and ability to run on single and three-phase with cables up to 100 metres
  • Easy to read and quick to set panel, increasing the accuracy and reducing the downtime
  • Available as non-pulsed and as pulsed for thin sheet metal applications
  • Modular system with tool-less connection to the water cooler and trolley

Brochures & Manuals

What's Included

0700006889  ESAB Return Cable Kit, OKC 50 - 300A, 5m

ESAB Return Cable Kit, OKC 50 - 300A, 5m

ESABGASHOSE  ESAB Gas Hose, incl. Hose Clamps

ESAB Gas Hose, incl. Hose Clamps

ESABMANUAL  ESAB Instruction Manual

ESAB Instruction Manual

Related Items

ESAB TIG Welders FAQs

Straight answers to the questions people ask most when choosing a ready-to-weld inverter TIG package, from portable single-phase units to heavier pulse power sources.

What does ready to weld mean on a TIG package?icon-minus-redicon-plus-red

A ready-to-weld package normally bundles the power source with the torch, earth lead and clamp, and usually a gas regulator and hose. The idea is that you only need to add shielding gas, tungsten and filler to start work.

Contents differ from package to package, so check the description for the torch length, the cooling type, any remote control, and whether consumables are included. Also confirm the supply the machine is built for, because some packages are single-phase and others are three-phase.

What is pulse TIG and when is it useful?icon-minus-redicon-plus-red

Pulse TIG alternates the current between a high peak and a lower background level, many times a second or slower. The weld pool heats during the peak and cools slightly in the background, which gives better control of heat input.

It is useful on thin material, on out-of-position welds, on joints with varying fit-up, and where you want to limit distortion. It can also give a neat stacked-dime appearance. It is not required for everyday TIG, but it is a valuable option for fine and critical work.

Can the same machine be used for stick welding as well?icon-minus-redicon-plus-red

Many inverter TIG machines also include a stick (MMA) mode, and some are sold as multi-process machines that also offer MIG. Stick mode is handy for outdoor work, rusty or dirty material and site repairs.

Check the specification for the processes included, the maximum current in each mode, and what leads or accessories are needed. A multi-process unit can be a good compromise, but a dedicated machine usually offers more refined control in its main process.

What input supply do these machines need?icon-minus-redicon-plus-red

Smaller inverter packages are usually single-phase and often multi-voltage, so they can run from both a lower-voltage site supply and standard mains. Larger power sources are often three-phase and suit workshops that have a three-phase supply.

Check the rating plate and the manual for the voltage range, the required fuse or breaker size, and the cable rating. Output may be reduced when running on the lower supply, and an extension lead must be rated for the load.
