Rapid Ref : 0447700911

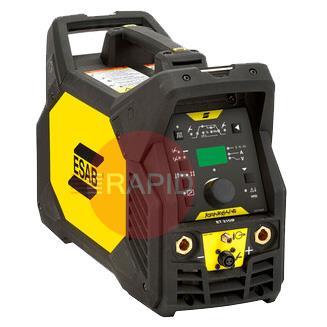

ESAB Renegade ET 210iP Ready To Weld Air-Cooled Package with 4m TIG Torch - 115 / 230v, 1ph
0447700911

£1624.00  EX VAT
SSP Suggested Selling Price = £2319.28  YOU SAVE £695.28
 Buy in 3 easy interest free payments of £541.33† with
Additional items to consider

* Comes included with 3m work lead, 4m SR-B 26 TIG torch, 4m gas hose and shoulder strap. *

The ultimate in durability with a portable design.

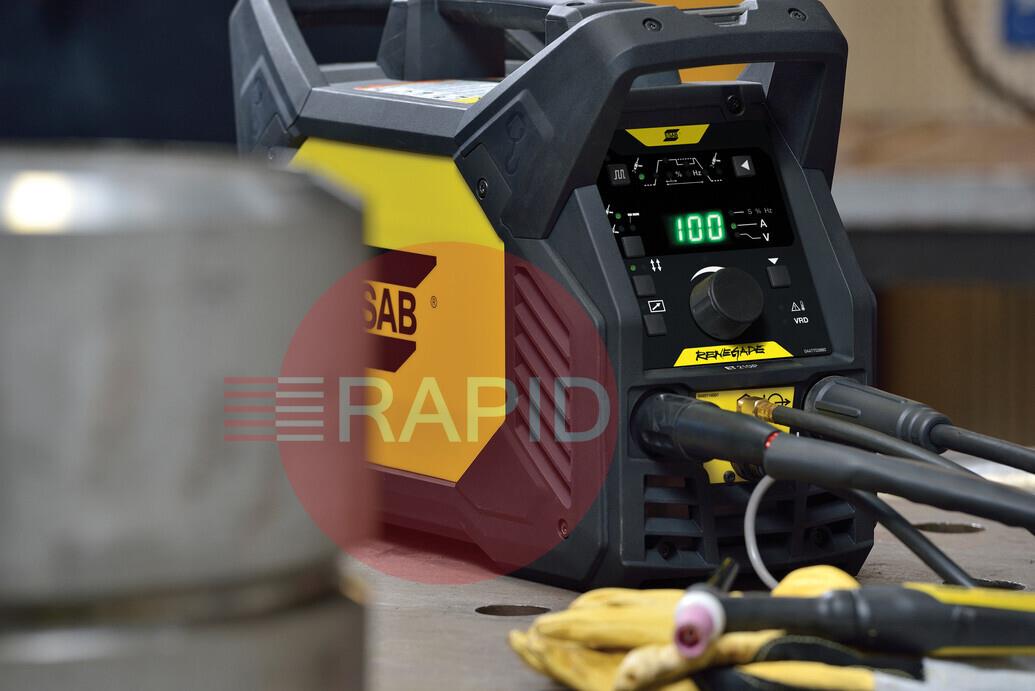

The Renegade ET is a professional single-phase, high-frequency start TIG and MMA welding machine with the most resistant IP23 housing designed to be used in demanding environments. Equipped with a high-quality carry strap with multiple lift points, Renegade is ready to move with you when portability is required.

The Renegade ET have a built-in active PFC circuit that allows it to work perfectly even on a poor-quality power supply and on very long extension cables (up to 100m). Superior weld quality is a priority in this range, additionally supported by direct access to wide parameters selection on a simple and intuitive user interface, which makes the machine very easy to work with.

Features

  • Highest durability housing with IP23 for indoor and outdoor use
  • TIG Pulse up to 999 Hz to increase control of heat input and weld pool
  • PFC for stable arc even with extra-long mains cable, up to 100m
  • Easy to read and quick to set panel, increasing the accuracy and reducing the downtime
  • Dual-current mode trigger functionality to switch between two output current levels, which control the heat input and size of the weld pool
  • Modular system with tool-less connection to the water cooler and trolley
  • ESAB SR-B TIG torch included

Product Details

Specifications

  • Mains Voltage: 115/230 VAC ±15%, 1ph, 50/60 Hz
  • Fuse Slow: 16 A
  • Rated KVA: 3.3 KVA (115 VAC) 6 KVA (230 VAC)
  • Energy save mode: <30 W
  • Welding Output MMA 115 VAC: 110A / 24.4V at 25%, 71A / 22.8V at 60%, 55A / 22.2V at 100%
  • Welding Output MMA 230 VAC: 210A / 28.4V at 25%, 135A / 25.4V at 60%, 105A / 24.2V at 100%
  • Welding Output TIG 115 VAC: 140A / 15.6V at 25%, 90A / 13.6V at 60%, 70A / 12.8V at 100%
  • Welding Output TIG 230 VAC: 210A / 18.4V at 25%, 135A / 15.4V at 60%, 105A / 14.2V at 100%
  • Setting Range 115 VAC MMA: 15A / 20.6V – 110A / 24.4V
  • Setting Range 230 VAC MMA: 15A / 20.6V – 180A / 27.2V
  • Setting Range 115 VAC TIG: 10A / 10.4V – 140A / 15.6V
  • Setting Range: 230 VAC TIG: 10A / 10.4V –210A / 18.4V
  • Power Factor Max Current: 99%
  • Open Circuit VDC High: 78 VDC
  • Enclosure class: IP23
  • Operating Temperature: -10 to +40°C (+14 to +104°F)
  • Dimensions: 460 x 200 x 320mm
  • Supply plug: CEE 16 A
  • Weight: 11Kg

Brochures & Manuals

Related Items

110v TIG Welders FAQs

Straight answers to the questions people ask most when choosing and using TIG welders for 110 volt site supplies.

Why would I choose a 110v TIG welder?icon-minus-redicon-plus-red

On many UK building sites, shipyards and industrial locations, 110 volt supplies from a centre-tapped transformer or generator are the preferred or specified way to power portable equipment, because they reduce the risk of electric shock in damp or rough conditions. A TIG welder made to run on 110 volts lets you work to those site rules without extra equipment.

Many of these machines are portable inverters, light enough to carry. Some are multi-voltage machines that also run from 230 volts, which gives flexibility between site and workshop. Always check your site rules and the machine's data plate.

How much can I weld on a 110v supply?icon-minus-redicon-plus-red

A 110 volt supply can supply less power than 230 volts for the same plug and fuse size, so the maximum welding current is lower than on the same machine at 230 volts. That still suits thin and medium material, pipework and many repair jobs.

Check the rated output at 110 volts on the data plate or specification, not the headline figure for 230 volts. Thicker material, or long runs at high current, may need a higher supply or a bigger machine.

What does a multi-voltage machine do?icon-minus-redicon-plus-red

A multi-voltage machine senses the supply and adjusts to suit, so the same welder can run from 110 volts and 230 volts, and sometimes other ranges. This gives flexibility if you move between site and workshop.

Remember that the output you get depends on the supply it is connected to, and that the plug and fuse or breaker must match. Always check the manual for the maximum current at each voltage.

Why is my machine cutting out or tripping?icon-minus-redicon-plus-red

On a 110 volt supply, the current drawn is high, so supply and cable problems show up quickly. Common causes are an undersized or very long extension cable, an overloaded supply or transformer, a tripping breaker rated too low, or too many tools on the same circuit.

Use the shortest, heaviest extension lead that is suitable, make sure the supply can provide the needed current, and run the welder at a current the supply can sustain. If the machine has a thermal protection light, allow it to cool.
