Rapid Ref : CK-TS300 Mfr Ref : TS300

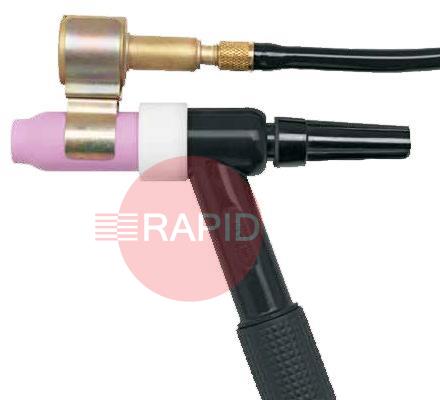

CK Trailing Shield for 3 Series Torches with Standard Gas Lens
TS300 CK-TS300

Name: CK Trailing Shield for 3 Series Torches with Standard Gas Lens
SKU: CK-TS300
Price: 79.55 GBP

£79.55 EX VAT

SSP Suggested Selling Price = £159.10 YOU SAVE £79.55

Buy in 3 easy interest free payments of £26.52^† with

For use with CK17 (WP17, HW17), CK18 (WP18, HW18), CK26 (WP26, HW26), CK150, CK210, CK300, CK350 style torches and all interchangeable competitive torch models. Used with standard 3 Series Gas Lens parts, includes TS300-C Cup Assembly, Special 3 Series TS300 Gas Lens and 25' of 3 Series Argon Hose with fitting.

Trailing Shields FAQs

Practical answers on using trailing shields and cups to protect hot TIG welds from the air.

What does a trailing shield do on a TIG torch?

A trailing shield is a gas attachment that fits behind the torch and supplies extra argon over the weld and the hot metal as it cools. The normal gas cup only covers the arc and the molten pool, but some metals stay hot enough after the torch has passed to react with the air.

The shield keeps an inert atmosphere over that cooling zone until the metal is cool enough not to pick up oxygen. It does this with its own gas supply, separate from the one feeding the torch.

Which metals need a trailing shield?

Titanium is the main one. TWI explains that titanium absorbs oxygen and nitrogen when hot, which makes it brittle, so the cooling weld and heat-affected zone need extra protection from a trailing shield. Other reactive metals can be similar.

Stainless steel is more forgiving, but oxide or heat tint on the surface damages corrosion resistance, so a trailing shield can help give brighter, cleaner welds where appearance or hygiene matters. Always check the welding procedure for your material and application.

How long does the weld need to stay shielded?

Until it has cooled below the temperature at which the metal reacts with air. For titanium, TWI gives this as roughly 520 degrees C, above which it absorbs oxygen and nitrogen. Do not stop the gas, or lift the shield, while the weld is still glowing or heavily coloured.

The shield length and your travel speed decide how long the metal is covered, so slow down if you see colour appearing behind the shield. Your procedure or specification takes priority over general figures.

What do the colours on a titanium weld tell me?

Colour shows how much air reached the hot metal. TWI describes perfect shielding as bright and silvery, followed by light straw and dark straw, then dark blue, light blue, grey and finally powdery white as contamination increases.

Light and dark straw are normally acceptable, dark blue may be acceptable depending on service conditions, and light blue, grey and white are not. Colour alone is not a reliable guide on multi-pass welds, because contamination in earlier runs affects later ones. Your specification decides what you can accept.
