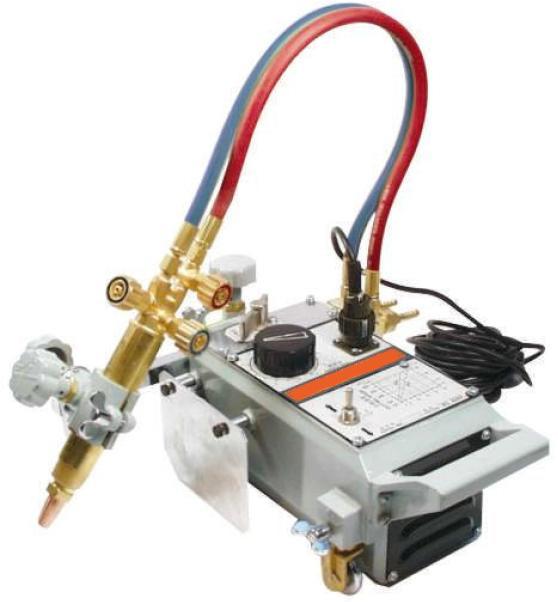

95021 Beetle Style Straight Line Gas Cutter 230 Volt with 1.8m Track
    Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

    Rapid Ref : 95021

    Beetle Style Straight Line Gas Cutter 230 Volt with 1.8m Track
    95021

    £755.63  EX VAT
    SSP Suggested Selling Price = £899.00  YOU SAVE £143.37
     Buy in 3 easy interest free payments of £251.88† with

    Portable, automatic straight-line cutting machines, available in models to suit 115v and 230v input power supply. Simple design with an easy-to-use interface, these machines cut straight lines, circles (20cm-2m radius) and bevels on 5mm-50mm thick steel (requires Circle Guide Kit). Constant adjustable travel speed - in forward or reverse - to provide good machine-quality cuts. Robust and compact manufacture with brass and stainless steel machined components. Supplied with a 1.8m distortion-proof steel track (extra lengths available).

    Product Details

    Specification

    Power Frequency: 50Hz
    Power Voltage: 220v (+/-10%)
    Cutting speed: 150 - 800mm/min
    Motor rotation speed: 1500rpm
    Our cutting machines are versatile, capable of cutting accurately in a straight line, circle, or up to 45 ° angles, meeting a wide range of cutting needs.

    Thickness of cutting: 5 - 50mm
    Machine Weight: 7Kg
    Machine Weight with one torch fitted: 9.5Kg
    Machine Dimensions: 350 x 140 x 175mm
    Length of the guide rail: 1.8m
    Track width: 160mm

    Related Items

    Gas Cutting Machines FAQs

    Straight answers to the questions people ask most when choosing and using gas cutting machines.

    Why use a gas cutting machine rather than cutting by hand?icon-minus-redicon-plus-red

    A machine carries the torch at a steady speed along a set path, so the cut is straighter, smoother and more consistent than one made by hand. It also takes the strain and the heat off the operator and gives repeatable results across many cuts, which means less grinding and rework on the edges.

    Hand cutting is still quick for one-off, rough or awkward cuts. But when you need long straight edges, bevels, repeated accurate cuts in plate, or clean square cuts on pipe, a machine gives a much better and more consistent result.

    What types of gas cutting machine are there?icon-minus-redicon-plus-red

    The common portable types are the straight-line carriage that runs along a track and cuts straight lines, often with the option of a bevel, and the pipe cutting machine that is driven round the pipe on a chain or band. Larger machines cut shapes and profiles under a numerical or optical control and can carry more than one torch.

    For most workshops and sites a portable track machine is the starting point. Choose by what you cut most: plate, pipe or shapes.

    How do I set up for a straight cut?icon-minus-redicon-plus-red

    Mark the cut line, then lay the track alongside it, parallel and in contact with the plate, and set the torch height and position so that the flame follows the line. Make sure the track is straight, clean and secure and cannot shift during the cut, and that the plate is flat and supported so the offcut cannot pinch or fall away unexpectedly.

    Check that the torch is square to the plate, or at the angle you want for a bevel, and support the hoses so they do not pull the carriage off line. Run the machine without the flame first to check that it travels the whole length of the cut freely.

    How do I set the travel speed?icon-minus-redicon-plus-red

    Speed depends on the thickness of the steel, the fuel gas and the nozzle, so start from the nozzle maker's cutting chart and adjust from there with a test cut on scrap. Thin plate is cut faster than thick.

    If you go too fast, the cut lags behind the torch, leaves drag lines and may not cut through. If you go too slow, the cut widens, the top edge melts and slag builds up. The right speed gives a clean edge with fine, even drag lines and slag that falls away easily.

    See all 6 questions for this category
