Furick Diffusers FAQs
Questions about TIG torch gas diffusers: what they do, how to size and fit them, and how to look after them.
What does a diffuser do in a TIG torch?

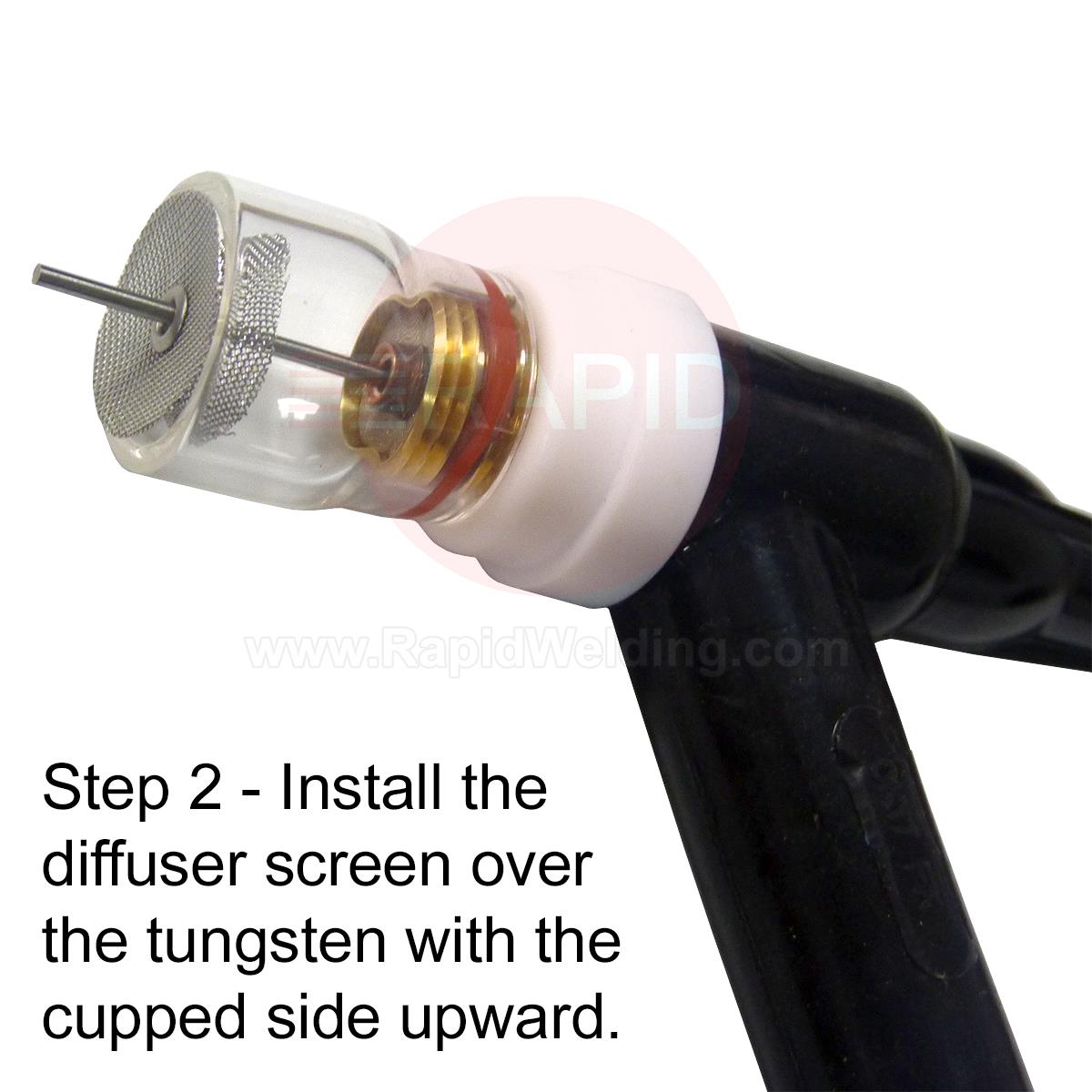

A diffuser, sometimes called a gas lens screen or insert, sits in the front of the torch head and breaks up the shielding gas as it flows through fine mesh. That removes much of the swirl and gives a smoother, more even column of gas over the arc and weld pool.
Smooth flow matters because turbulent gas can draw air into the shield and contaminate the weld. A diffuser therefore improves coverage for a given gas flow and cup, and it lets you hold the electrode further out of the cup when the joint demands it.
What is the difference between a diffuser and the gas holes in a standard collet body?
A standard collet body releases gas through a ring of small holes, which gives little control over the flow once it leaves. A diffuser forces the gas through layers of mesh first, which evens it out and reduces turbulence.
In practice the diffuser gives steadier shielding on the same gas flow, and it generally allows more electrode extension. For simple practice or non-critical work a standard collet body is usually adequate, so the choice depends on the quality of weld the job needs.
How far can I extend the tungsten with a diffuser fitted?
Further than with a standard collet body. A standard collet body generally keeps the tungsten within the inside diameter of the cup, whereas the smoother, more uniform flow from a diffuser or gas lens lets the electrode stand out past the cup. How far you can go depends on the cup size, gas flow and current, so extend only as far as the joint requires and no further.
Check your torch maker's guidance for any limit, and start with a short extension, adding length only if access demands it. A longer extension exposes more hot tungsten to air at arc start and stop, so allow adequate pre-flow and post-flow, and watch for discolouration or porosity.
Which cups work with a diffuser?
A diffuser or gas lens setup uses cups made for its thread, not the cups from a standard collet body. The two have different thread patterns, so a standard cup will not fit.
Check the thread and the cup size marking before ordering. Within the cups that fit, a larger opening gives more coverage and suits a longer extension, while a smaller one gets into tighter joints. Clear and ceramic cups are both made in gas lens fittings, so choose by access, visibility and heat.
