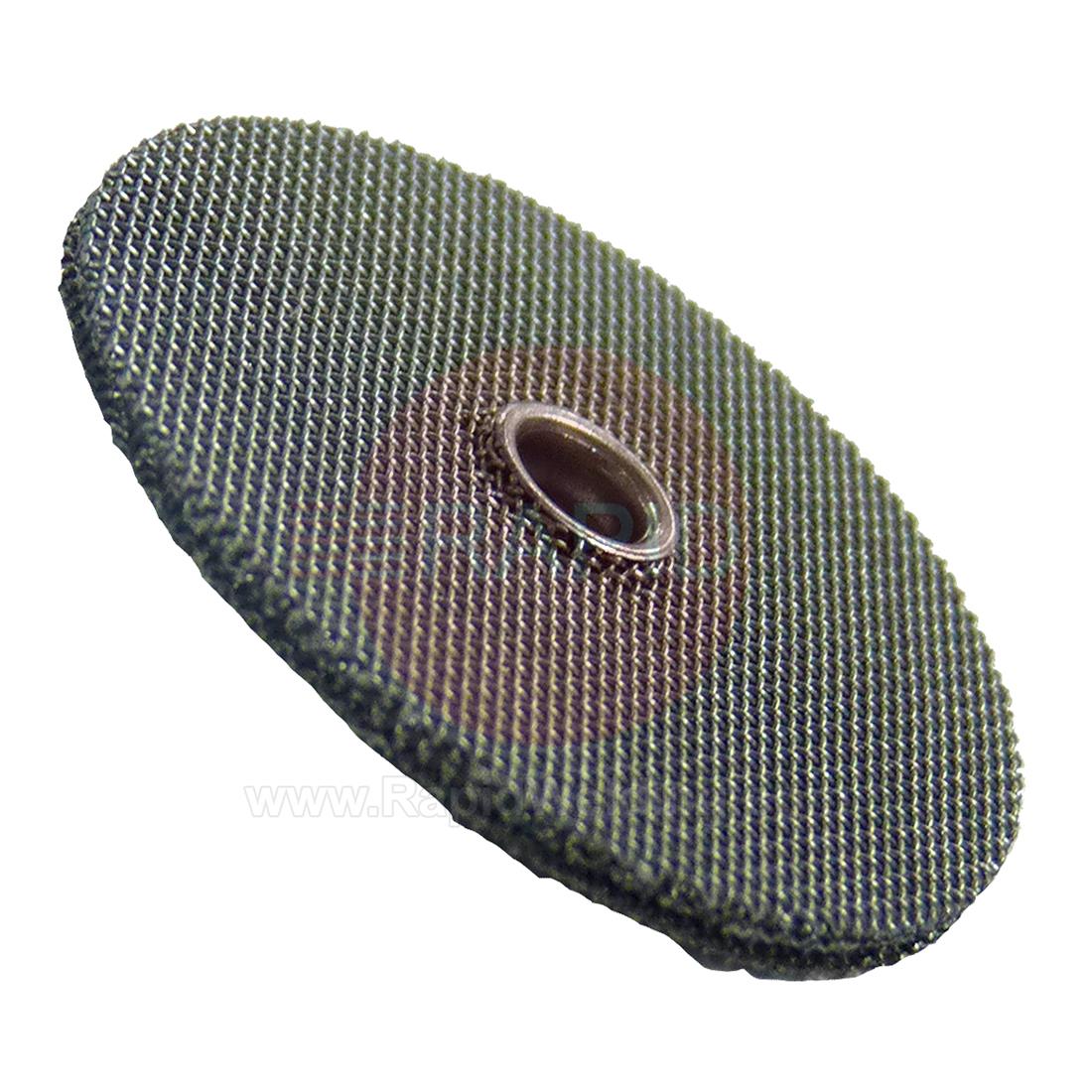

This pack of replacement diffuser screens are only made to fit the BBW cups.
To apply accurately, please moisten the inside of the glass cup, then push the diffuser inside the cup to install properly.
Questions about TIG torch gas diffusers: what they do, how to size and fit them, and how to look after them.
A diffuser, sometimes called a gas lens screen or insert, sits in the front of the torch head and breaks up the shielding gas as it flows through fine mesh. That removes much of the swirl and gives a smoother, more even column of gas over the arc and weld pool.Smooth flow matters because turbulent gas can draw air into the shield and contaminate the weld. A diffuser therefore improves coverage for a given gas flow and cup, and it lets you hold the electrode further out of the cup when the joint demands it.
Diffusers are sized by electrode diameter, so match the diffuser to the tungsten you use, together with the matching collet. A diffuser for a 2.4 mm electrode will not suit a 1.6 mm or 3.2 mm one.Also make sure it is made for your torch type and body style. Torch heads differ, so check the manual or the type marking on the head. If you weld with more than one electrode size, you need a diffuser and collet for each size, and kits that group the parts together can make that easier.
A diffuser or gas lens setup uses cups made for its thread, not the cups from a standard collet body. The two have different thread patterns, so a standard cup will not fit.Check the thread and the cup size marking before ordering. Within the cups that fit, a larger opening gives more coverage and suits a longer extension, while a smaller one gets into tighter joints. Clear and ceramic cups are both made in gas lens fittings, so choose by access, visibility and heat.
The mesh is delicate. Weld spatter can stick to or melt it, and excess heat can warp or melt the outer screens. Either one disrupts the gas flow and so the shielding.Inspect the diffuser whenever you change the electrode or cup. Replace it if the mesh is clogged, bent, melted or visibly distorted, or if you see poor gas coverage such as discolouration or porosity that did not appear before. Whether you can replace only the damaged screen or the whole assembly depends on how it is made.
