Furick BBW Diffusers - 1/16", 1.6mm (Pack of 2)
BBWD2116

Name: Furick BBW Diffusers - 1/16", 1.6mm (Pack of 2)
SKU: BBWD2116
Price: 14.00 GBP

£14.00 EX VAT

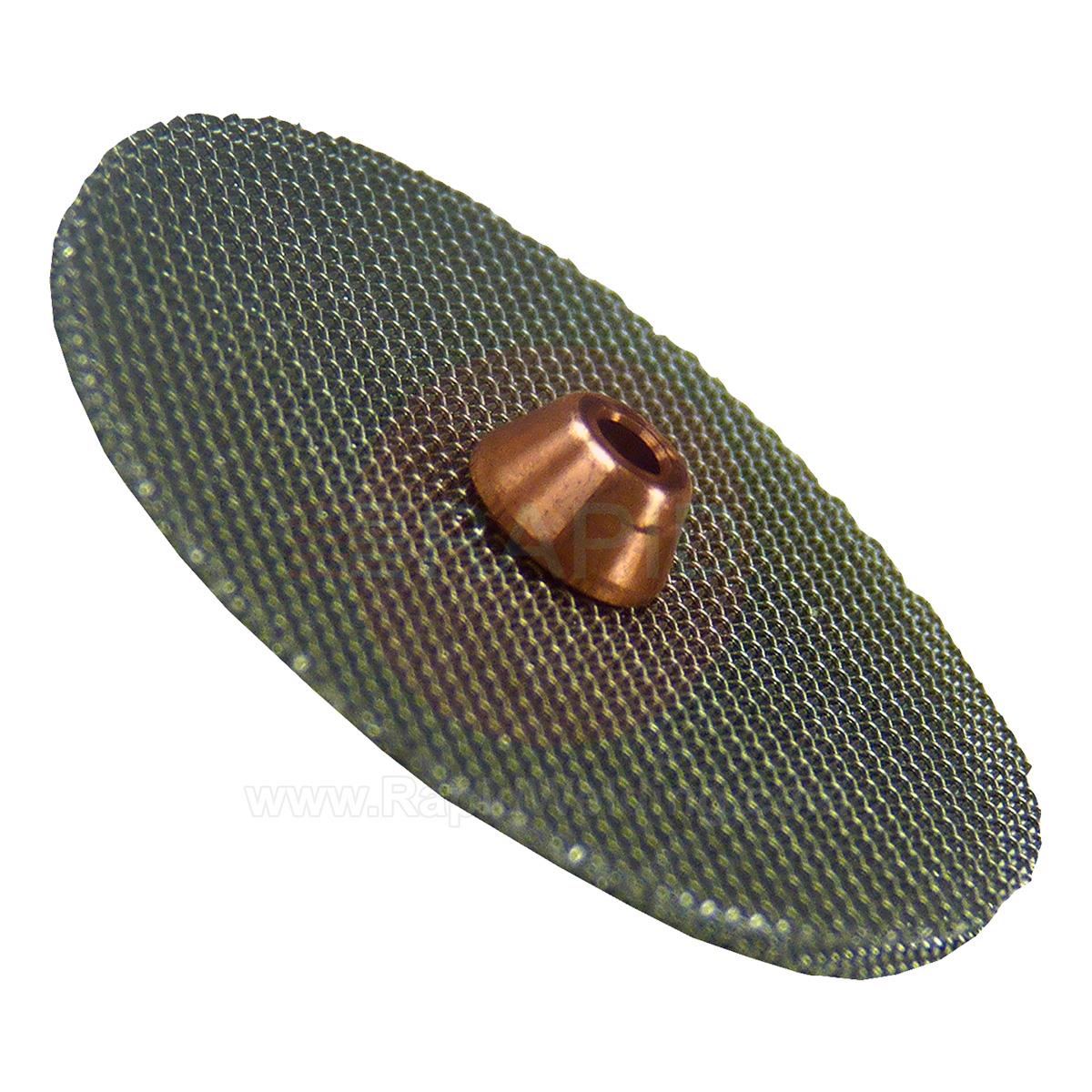

This pack of replacement diffuser screens are only made to fit the BBW cups. They come included with Swiss-made copper tungsten guides.

To apply accurately, please moisten the inside of the glass cup, then push the diffuser inside the cup to install properly.

Furick Diffusers FAQs

Questions about TIG torch gas diffusers: what they do, how to size and fit them, and how to look after them.

How do I choose the right diffuser size?

Diffusers are sized by electrode diameter, so match the diffuser to the tungsten you use, together with the matching collet. A diffuser for a 2.4 mm electrode will not suit a 1.6 mm or 3.2 mm one.

Also make sure it is made for your torch type and body style. Torch heads differ, so check the manual or the type marking on the head. If you weld with more than one electrode size, you need a diffuser and collet for each size, and kits that group the parts together can make that easier.

What is the difference between a diffuser and the gas holes in a standard collet body?

A standard collet body releases gas through a ring of small holes, which gives little control over the flow once it leaves. A diffuser forces the gas through layers of mesh first, which evens it out and reduces turbulence.

In practice the diffuser gives steadier shielding on the same gas flow, and it generally allows more electrode extension. For simple practice or non-critical work a standard collet body is usually adequate, so the choice depends on the quality of weld the job needs.

Which cups work with a diffuser?

A diffuser or gas lens setup uses cups made for its thread, not the cups from a standard collet body. The two have different thread patterns, so a standard cup will not fit.

Check the thread and the cup size marking before ordering. Within the cups that fit, a larger opening gives more coverage and suits a longer extension, while a smaller one gets into tighter joints. Clear and ceramic cups are both made in gas lens fittings, so choose by access, visibility and heat.

What damages a diffuser and how do I know when to replace it?

The mesh is delicate. Weld spatter can stick to or melt it, and excess heat can warp or melt the outer screens. Either one disrupts the gas flow and so the shielding.

Inspect the diffuser whenever you change the electrode or cup. Replace it if the mesh is clogged, bent, melted or visibly distorted, or if you see poor gas coverage such as discolouration or porosity that did not appear before. Whether you can replace only the damaged screen or the whole assembly depends on how it is made.
